Transceptor de fibra ótica BlueOptics AFBR-89CDHZ-BO 100000 Mbit/s QSFP28

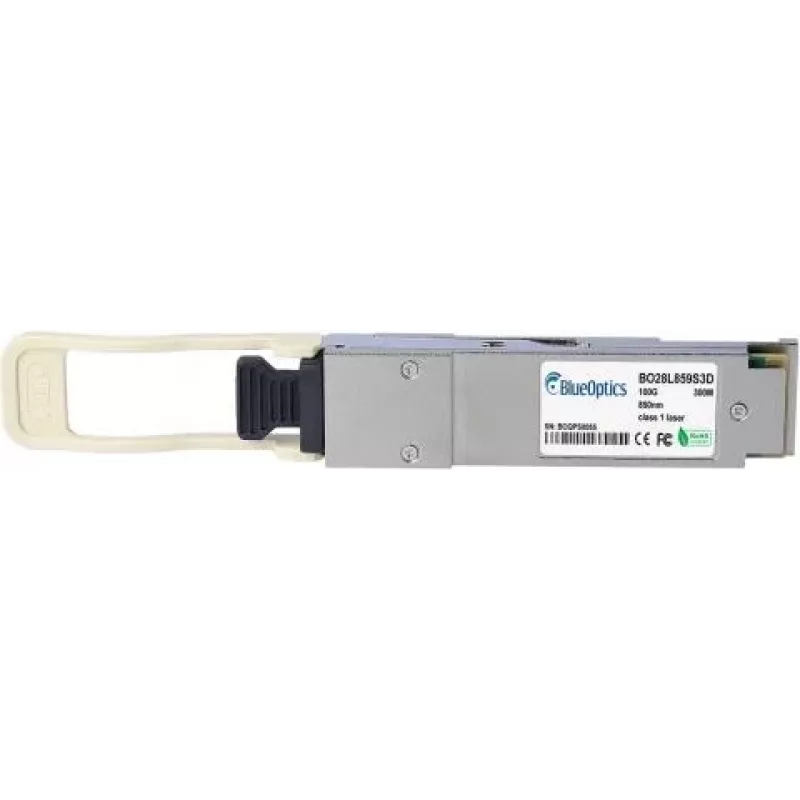

The BlueOptics AFBR-89CDHZ-BO is a fiber optic transceiver module designed for 100000 Mbit/s (100G) data transmission. It uses a QSFP28 interface and an MPO/MTP connector for multi-mode fiber links, supports 100GBASE-SR4 applications and is intended for integration into data center and high-performance networking equipment. The module is compact and lightweight (approx. 40 g) with a silver housing, offering a standardized form factor for use in compatible networking hardware.

Advantages

The transceiver delivers 100000 Mbit/s throughput over multi-mode fiber using SR4 optics with 850 nm wavelength for transmit and receive channels. Compliance with MSA QSFP28 standards and an MPO/MTP connector ensures physical compatibility with standard patching infrastructure. The module is tested for interoperability with major hardware platforms that support the equivalent original transceiver, and it incorporates high-quality optical and electronic components to provide stable operation and long service life.

Suitable for

• 100G Ethernet links in data centers
• High-performance switch-to-switch or switch-to-server connections
• Short-reach multi-mode fiber backbones (up to the supported SR4 distance)
• Environments requiring QSFP28 form-factor transceivers

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s
• Optical standard: 100GBASE-SR4 (multi-mode fiber, 850 nm)
• Connector type: MPO/MTP (multi-fiber)
• Product colour: Silver
• Weight: 0.04 kg

How to use

Install the transceiver into a compatible QSFP28 slot on your switch, router or other networking device following the vendor instructions for hot-plug handling. Connect an appropriate MPO/MTP multi-mode fiber patch cord between the transceiver and the corresponding patch panel or remote transceiver. Ensure the host device firmware and software accept third-party transceivers when required, and confirm link parameters such as speed and duplex through the device management interface.

Recommendations

Confirm compatibility with the target hardware platform and, if available, enable Digital Diagnostics Monitoring (DDM/DOM) in the host system to monitor supply voltage, laser bias current, transmit and receive power, and temperature. Use high-quality multi-mode fiber and MPO/MTP connectors maintained to specification to achieve the expected SR4 reach and reliable 100G operation.
