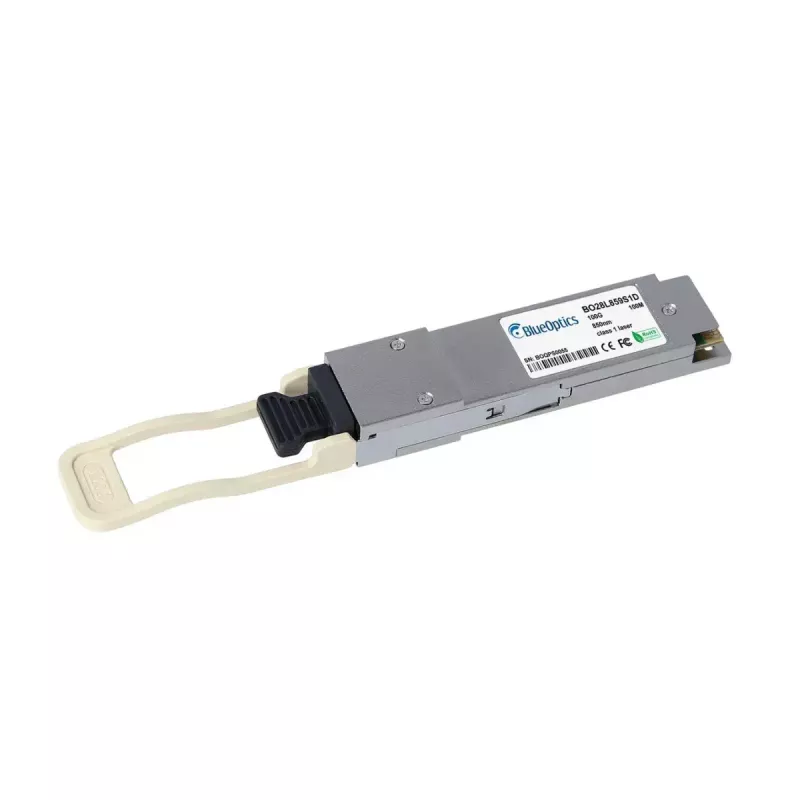

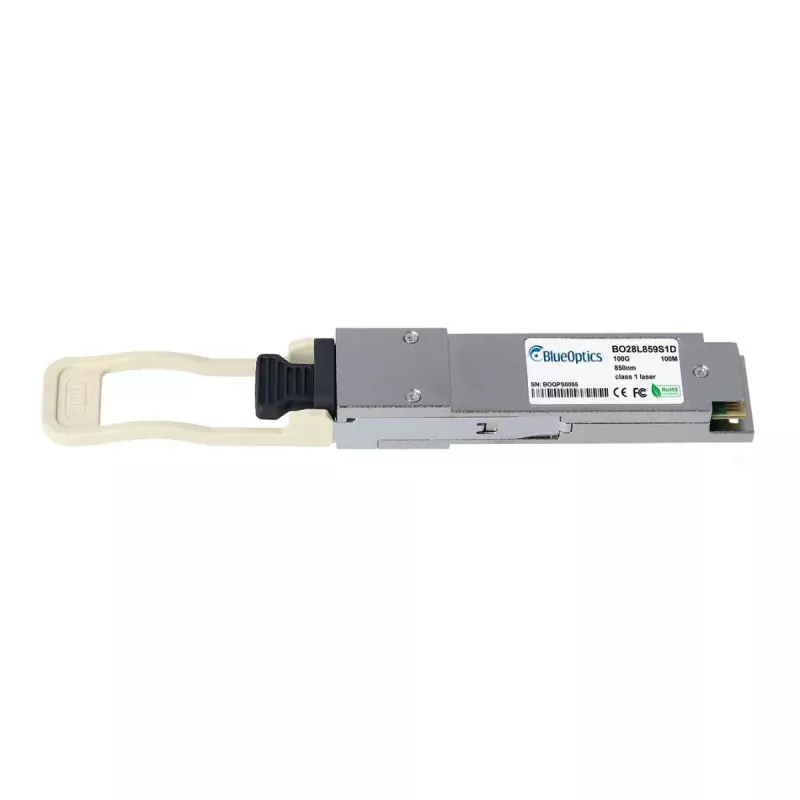

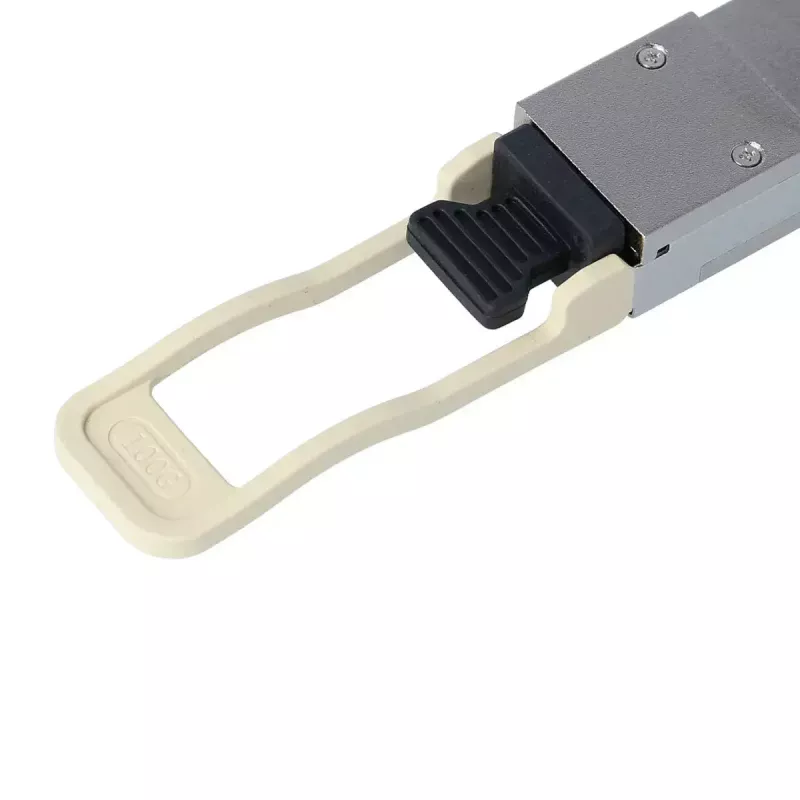

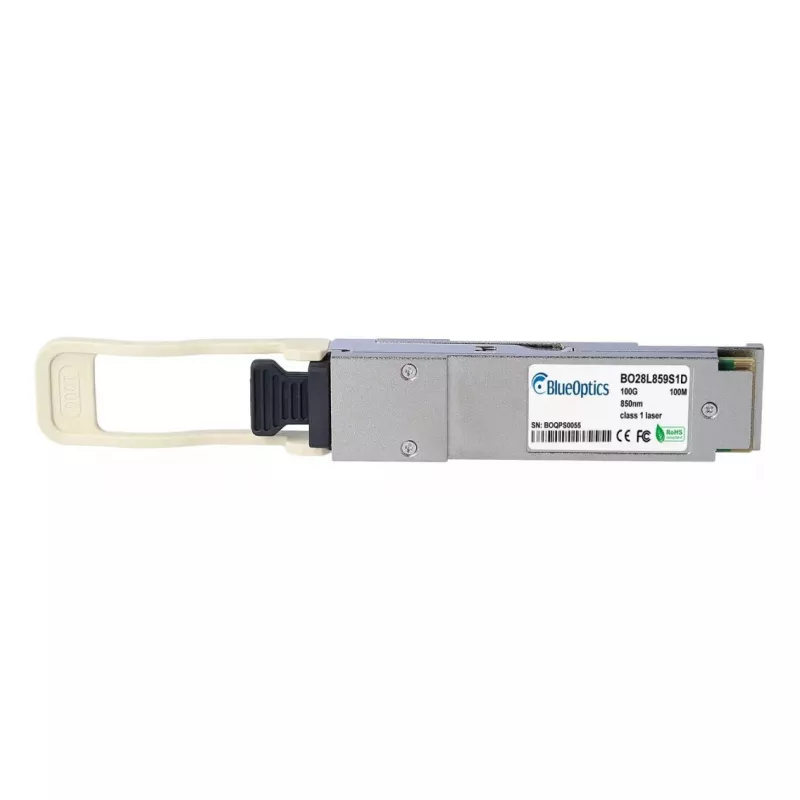

Transceptor de fibra ótica BlueOptics MMA1B00-C100-TG-BO 100000 Mbit/s QSFP28

The BlueOptics MMA1B00-C100-TG-BO is a QSFP28 fiber optic transceiver designed for 100000 Mbit/s (100 Gbps) multimode connections. It operates at a wavelength of 850 nm, uses an MPO/MTP connector and supports typical short-range multimode links up to 100 m. The transceiver is compact and lightweight (approximately 40 g) and includes digital diagnostics monitoring (DDM/DOM) for real-time monitoring of key optical and electrical parameters.

Advantages

This QSFP28 transceiver follows MSA standards and is compatible with common hardware platforms that accept 100GBASE-SR4 MPO/MTP modules. The module provides simultaneous transmit and receive functions on multimode fiber and is built from components chosen for reliability, including high-quality laser and IC components. Integrated digital diagnostics allow remote monitoring of supply voltage, laser current, optical output/input power and module temperature. The module’s rated MTBF (3,000,000 hours) and component selection contribute to long service life and reduced maintenance.

Suitable for

Key specifications

How to use

Install the transceiver into a compatible QSFP28 port on supported network equipment, ensuring the host system supports 100GBASE-SR4 MPO/MTP modules and any required vendor compatibility settings. Connect an MPO/MTP multimode fiber patch cable to the module and verify link status via the switch or router management interface. Use the DDM/DOM interface to read real-time parameters for troubleshooting and validation. Handle the module with ESD precautions and keep protective caps on the fiber connector when the module is not in use.

Recommendations

For reliable operation, use multimode fiber rated for 100GBASE-SR4 applications and MPO/MTP patch cables of appropriate multimode type (e.g., OM3/OM4) and length. Confirm host device compatibility and enable DDM/DOM support if monitoring is required. Store and install the module in a clean, dust-free environment and follow ESD handling procedures.
