Transceptor QSFP+ 40GBASE-SR4 BlueOptics compatível com Finisar FTL410QD2C

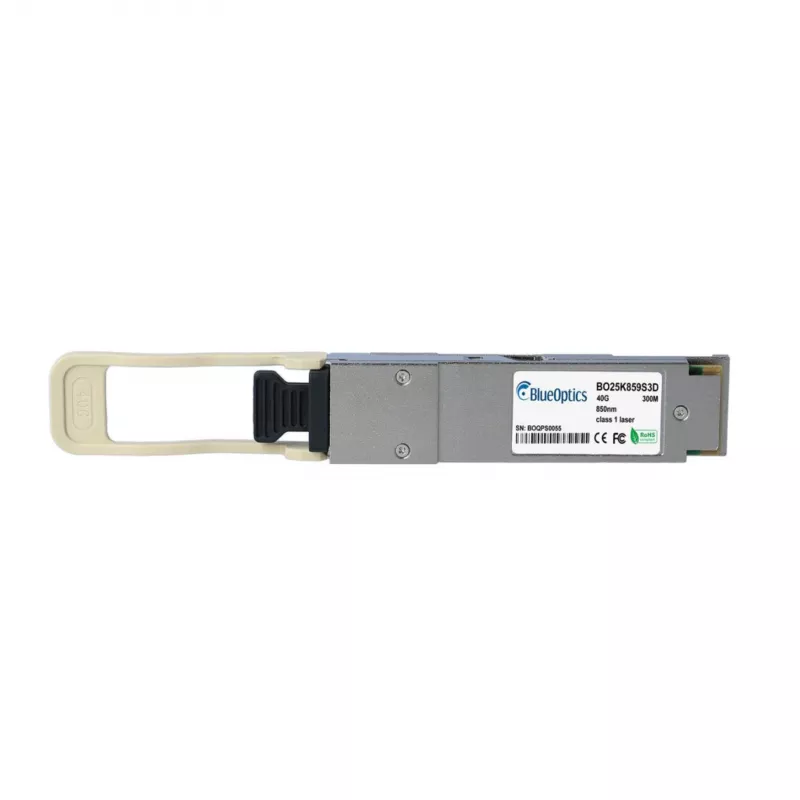

The BlueOptics BO25K859S3D is a high-performance QSFP+ optical transceiver module designed for 40 Gigabit Ethernet applications. Fully compatible with the Finisar FTL410QD2C, this module delivers reliable connectivity for data center and enterprise networks. It supports 40GBASE-SR4 over multimode fiber using MPO/MTP connectors, with a reach of up to 100 m on OM3 fiber and 150 m on OM4 fiber.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design simplifies installation and maintenance. Low power consumption (<1.5 W) reduces energy costs. Built-in digital diagnostics (DDM/DOM) enable real-time monitoring of operating parameters.

Suitable for

• Data center interconnects
• Enterprise networking
• High-performance computing
• 40G Ethernet uplinks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps (4x 10 Gbps channels)
• Wavelength: 850 nm
• Fiber Type: Multimode (MMF)
• Connector: MPO/MTP
• Max Distance: 100 m (OM3), 150 m (OM4)
• Ethernet Standard: 40GBASE-SR4
• Laser Type: VCSEL
• Power Consumption: <1.5 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM/DOM: Yes
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure clean MPO connectors. This module is ideal for upgrading existing 10G networks to 40G or for new high-bandwidth installations.
