Transceptor QSFP+ BlueOptics BO25K13610D compatível com Finisar FTL4C1QE1L, LC Duplex, 40GBASE-LR4, Monomodo, 10 km

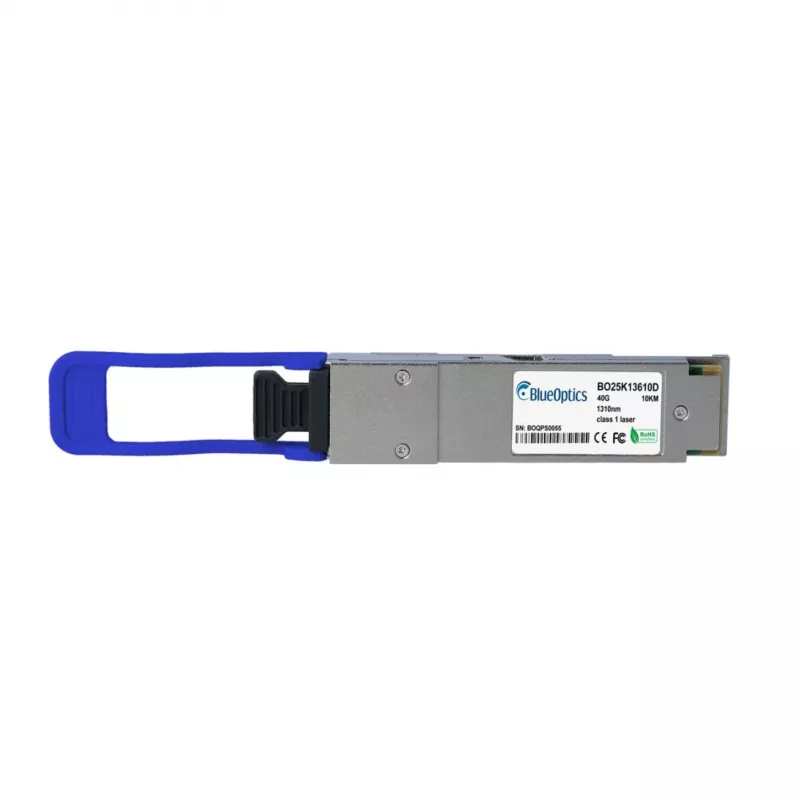

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Finisar FTL4C1QE1L and offers reliable connectivity for data centers and enterprise networks. This hot-pluggable module supports 40GBASE-LR4 standard over single-mode fiber with a reach of up to 10 km.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Supports Digital Diagnostics Monitoring (DDM) for real-time optical monitoring. Low power consumption (<3.5 W) and commercial temperature range (0°C to 70°C).

Suitable for

• Data center interconnects
• Enterprise networking
• Service provider infrastructure
• 40G Ethernet uplinks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LR4
• Max Reach: 10 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Wavelengths: 1271 nm, 1291 nm, 1311 nm, 1331 nm (LAN WDM)
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Consumption: <3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is ideal for upgrading existing 10G links to 40G or building new high-speed networks.
