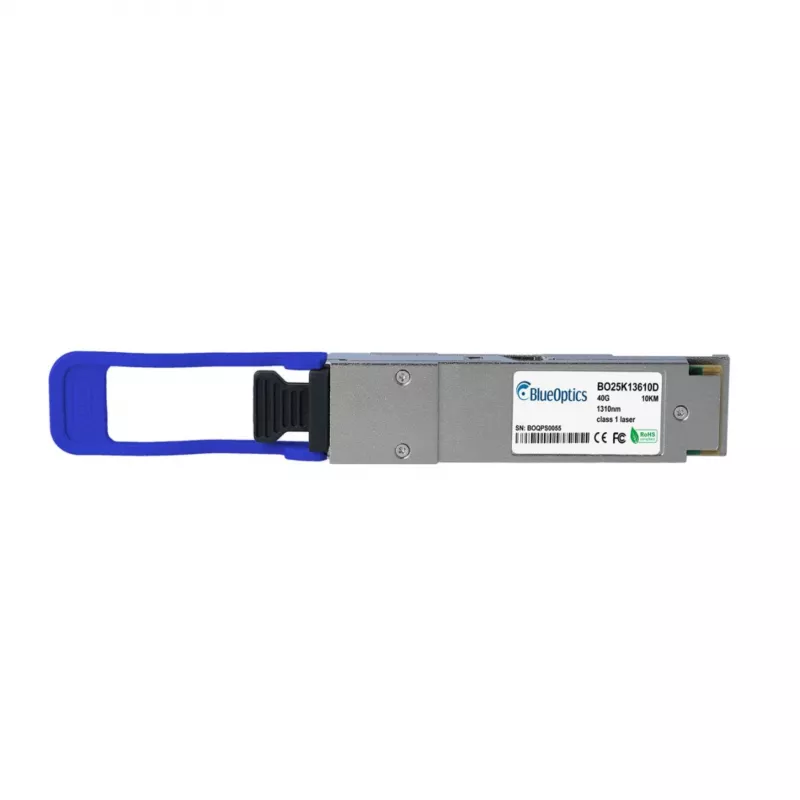

Transceptor QSFP+ BlueOptics BO25K13610D compatível com Finisar FTL4C1QM2C, 40GBASE-LR4, LC Duplex, Monomodo, 10 km

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Finisar FTL4C1QM2C and offers reliable, long-range connectivity over single-mode fiber.

Advantages

Cost-effective alternative to OEM modules with full MSA compliance. Supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Hot-pluggable design simplifies installation and maintenance.

Suitable for

• 40 Gigabit Ethernet networks
• Data center interconnects
• Enterprise network uplinks
• Metro and long-haul fiber links

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LR4
• Max Distance: 10 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (CWDM)
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ba, SFF-8436, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables (LC duplex) and ensure proper cleaning of optical connectors.
