Transceptor QSFP112 BlueOptics 400GBASE-SR4 50 metros fibra multimodo MPO-12 APC

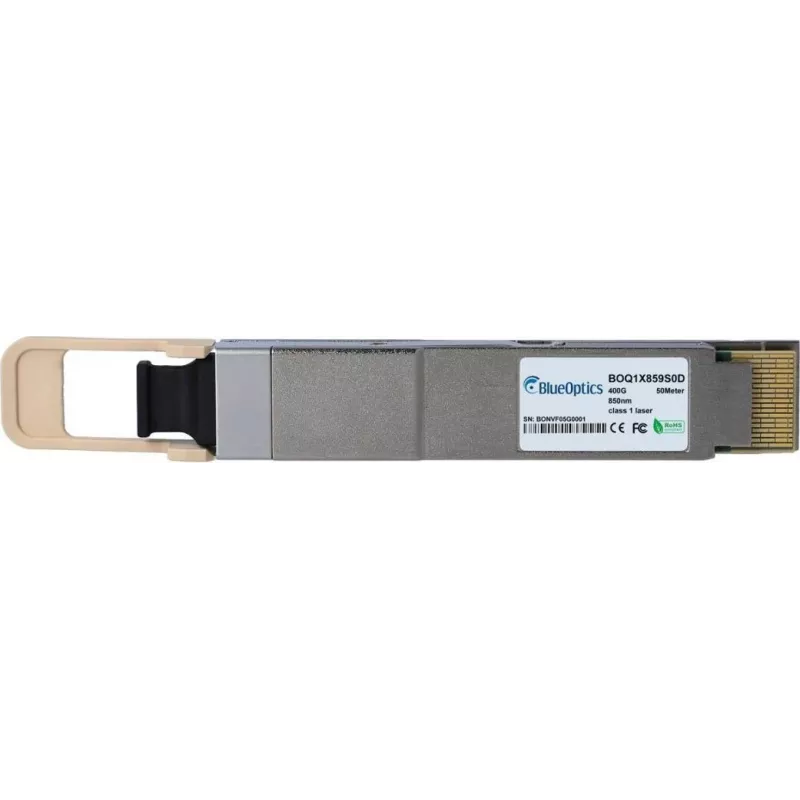

The BlueOptics BOQ1X859S0D-BO is a high-performance QSFP112 optical transceiver module designed for 400 Gigabit Ethernet applications. It supports the 400GBASE-SR4 standard over multimode fiber, utilizing four 850 nm VCSEL transmitter and PIN receiver channels. With a reach of up to 50 meters over OM4 fiber, this module is ideal for short-reach interconnects in data centers, high-performance computing, and enterprise networks. The MPO-12 APC connector ensures reliable optical connectivity, while integrated Digital Diagnostic Monitoring (DDM) provides real-time performance monitoring.

Advantages

This transceiver offers high bandwidth density and low power consumption, enabling cost-effective 400G connectivity. Its hot-swappable design simplifies installation and maintenance, and the DDM function allows for proactive network management. The module is compliant with IEEE 802.3db and supports a wide operating temperature range of 0°C to +70°C.

Suitable for

• Data center interconnects
• High-performance computing clusters
• Enterprise networking backbone
• Short-reach 400G links

Key specifications

• Form Factor: QSFP112
• Data Rate: 400 Gbps
• Optical Standard: 400GBASE-SR4
• Connector Type: MPO-12 APC
• Fiber Type: Multimode (OM4)
• Wavelength: 4x 850 nm
• Max Distance: 50 m
• Operating Temperature: 0°C to +70°C
• DDM: Yes
• Hot-Pluggable: Yes
• Power Supply: 3.3V

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper cleaning of MPO connectors. This module is compatible with switches and routers that support QSFP112 ports.
