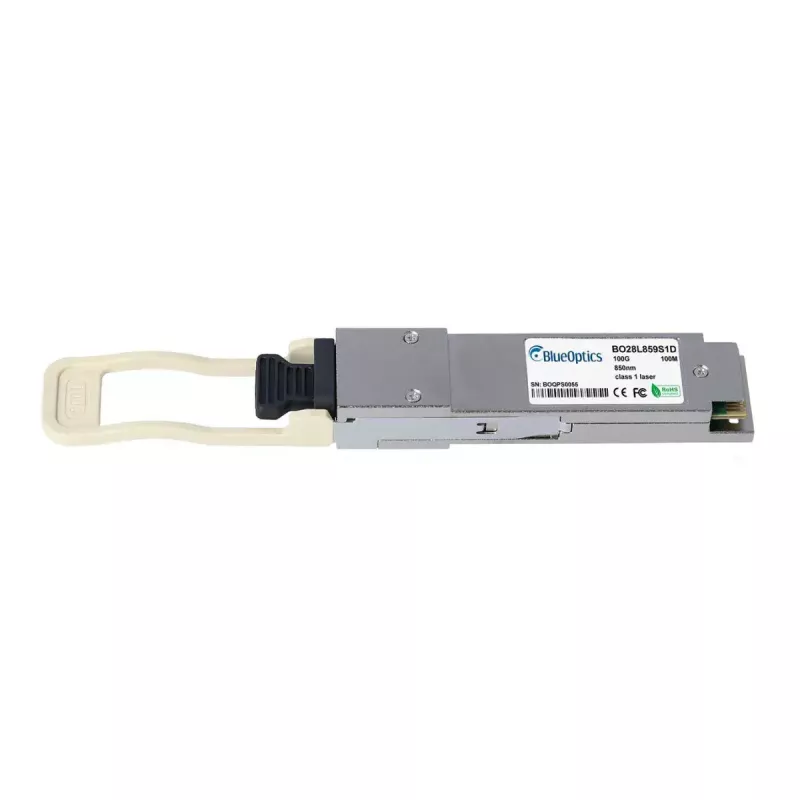

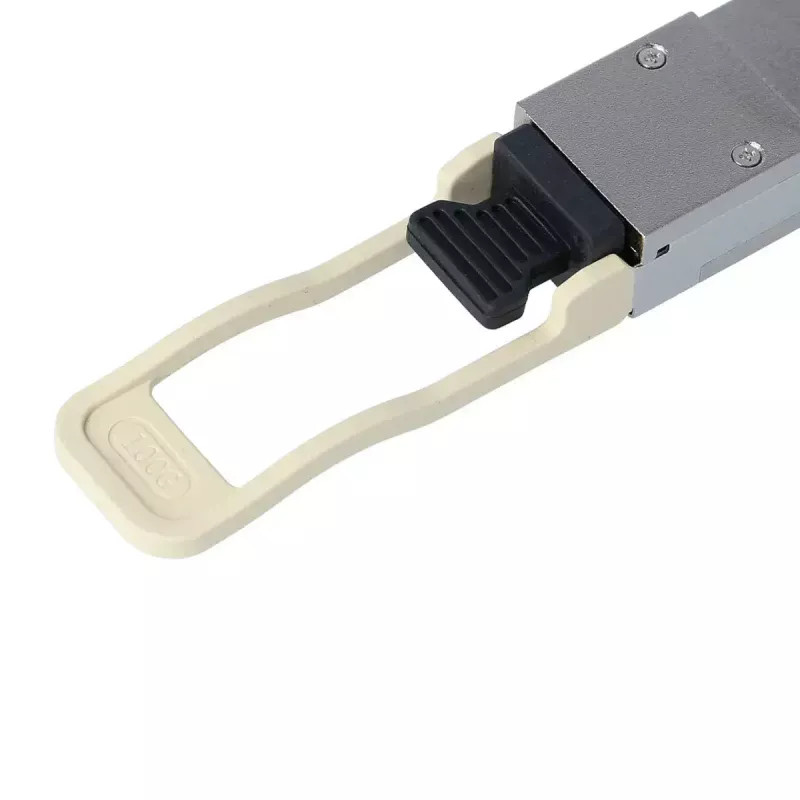

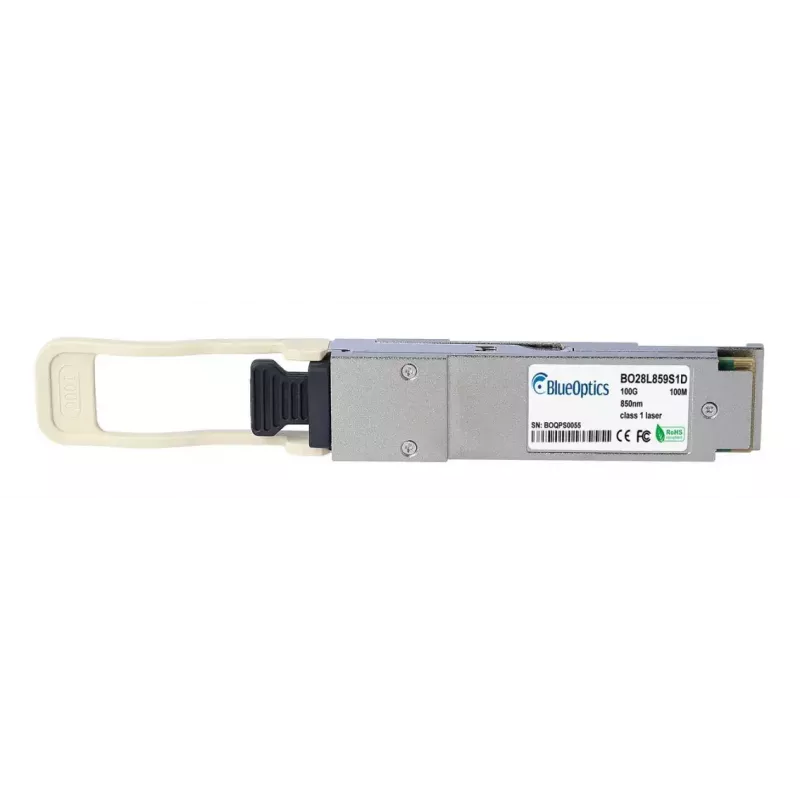

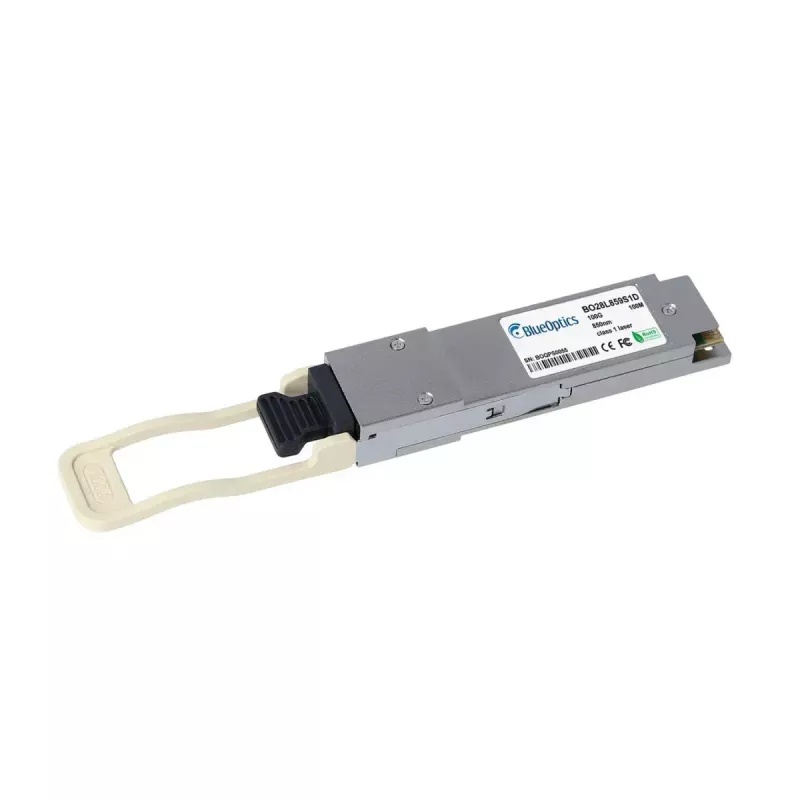

Transceptor QSFP28 BlueOptics MMA1B00-C100D_FF-BO 100000 Mbit/s 850 nm

The BlueOptics MMA1B00-C100D_FF-BO is a QSFP28 multimode fiber optic transceiver designed for 100 Gbit/s Ethernet links. It operates at an 850 nm wavelength and uses an MPO/MTP connector for parallel multimode fiber connections. The module follows QSFP28 form-factor specifications, is silver in colour, weighs approximately 40 g and is specified for a maximum transfer distance of up to 100 m over suitable multimode fiber. The transceiver includes digital diagnostics (DDM/DOM) for real-time monitoring of key parameters and is designed to meet MSA compatibility requirements for use in common networking platforms.

Advantages

The MMA1B00-C100D_FF-BO provides a high aggregate data rate of 100000 Mbit/s while maintaining a compact QSFP28 form factor suitable for high-density installations. Its MPO/MTP interface enables parallel optical transmission for SR4 applications, and DDM/DOM support allows remote monitoring of voltage, temperature, laser current and optical power. The module is engineered using industry-standard components and MSA-compliant specifications to ensure interoperability and long MTBF performance.

Suitable for

Key specifications

How to use

Install the QSFP28 transceiver into an appropriate QSFP28 port on compatible network equipment according to the host device instructions. Use a correctly pinned MPO/MTP multimode patch cable to connect to the corresponding transceiver or patch panel. Ensure the host platform supports 100GBASE-SR4 operation and, if required, DDM/DOM monitoring. Observe ESD precautions when handling the module and remove dust caps from the fiber connector only immediately before making the connection. Verify link status and optical power levels via the host hardware or monitoring system after installation.

Recommendations

For optimal performance, use OM3 or OM4 multimode fiber rated for 100 Gbit/s SR4 links and MPO/MTP patch cables with correct polarity. Confirm compatibility with the specific switch or router firmware and enable DDM/DOM support if remote diagnostics are required. Store unused modules in dust-proof anti-static packaging and avoid bending fiber beyond recommended radii to maintain signal quality.
