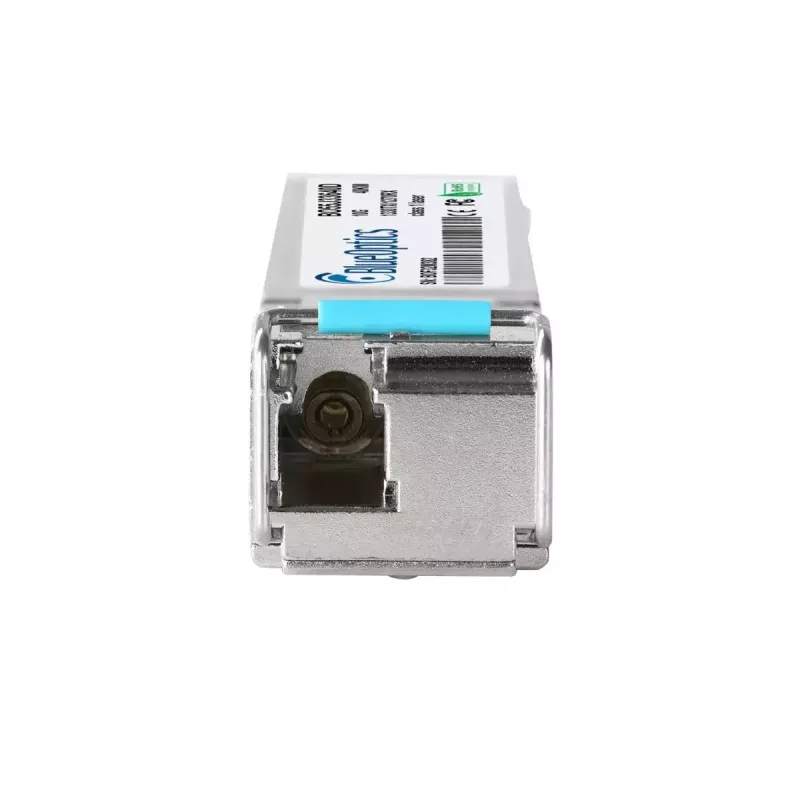

Transceptor SFP BlueOptics 10G-SFPP-BXD-S-40-BO 10000 Mbit/s

The BlueOptics 10G-SFPP-BXD-S-40-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s links over single-mode fiber. It uses an LC simplex connection and a compact metal housing, and is specified for reliable operation with an MTBF of 1,000,000 hours and a module weight of approximately 20 g. The module supports 10GBASE-BX-D operation with separate transmitter and receiver wavelengths suitable for long-reach single-mode links up to tens of kilometers when used with appropriate fiber cabling and complementary transceivers.

Advantages

This BlueOptics SFP+ transceiver meets MSA SFP+ form-factor specifications and provides digital diagnostics monitoring (DDM/DOM) for real-time information on supply voltage, laser bias current, optical output/input power and temperature when the host hardware supports these features. The metal housing and industry-grade components contribute to mechanical robustness and long service life. The module offers standard electrical and optical interfaces for interoperability with major networking platforms that accept compatible 10GBASE-BX-D SFP+ modules.

Suitable for

• 10 Gbit/s Ethernet links over single-mode fiber
• Inter-switch connections and data center uplinks
• Long-reach fiber links where 10GBASE-BX-D wavelength pairs are used
• Network equipment that supports SFP+ modules with DDM/DOM monitoring

Key specifications

• Interface type: SFP+
• Maximum data rate: 10,000 Mbit/s (10 Gbit/s)
• Connector: LC simplex (single fiber transmit and receive wavelengths)
• Optical medium: Single-mode fiber (SMF)
• Housing: Metal
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Digital Diagnostics Monitoring (DDM/DOM): supported when host hardware provides access

How to use

Install the BlueOptics SFP+ module by powering down the host port if required by your equipment vendor, insert the transceiver into the SFP+ slot until it clicks into place, and connect an LC simplex single-mode fiber patch cable to the module. Ensure the complementary transceiver on the remote end matches the expected wavelength pair and fiber type. After insertion, verify link status in the host device management interface and, if supported, check DDM/DOM values for operational parameters. Follow your network hardware vendor’s guidance for hot-plug procedures if applicable.

Recommendations

Use certified single-mode LC patch cords and maintain clean fiber connectors to ensure optimal optical performance. Verify that the host device firmware and driver support third-party SFP+ modules and DDM/DOM features. For long-reach links, confirm the end-to-end budge and attenuation to remain within the transceiver’s operational optical power range.
