Transceptor SFP BlueOptics SPL-35-GB-BX-IDFM-BO 1250 Mbit/s fibra ótica

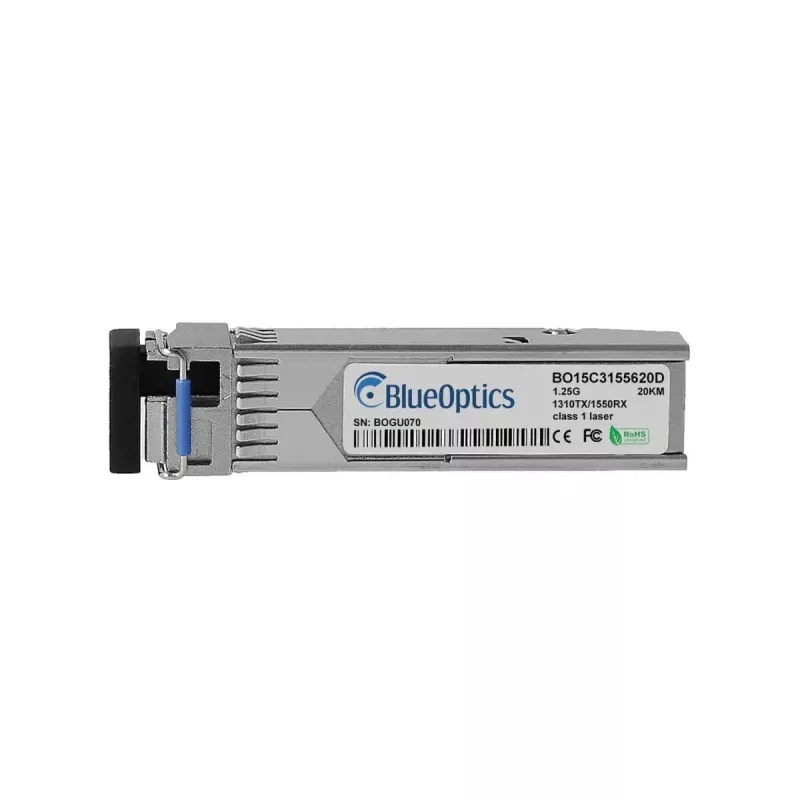

The BlueOptics SPL-35-GB-BX-IDFM-BO 1250 Mbit/s Fiber optic SFP transceiver is a compact module designed for single-port fiber connections in network equipment. With a metal housing and a standard SFP form factor, it supports a maximum data transfer rate of 1250 Mbit/s and operates from a 3.3 V input supply. Weighing approximately 2 g and finished in silver, this transceiver is intended for use in networking applications that require reliable optical link deployment and straightforward compatibility with SFP slots.

Advantages

The transceiver combines a small, metal-bodied SFP package with a typical 1250 Mbit/s signaling rate suitable for many optical links. Its low weight and standard SFP interface make it easy to install and replace in switches, routers or media converters. The metal housing provides mechanical robustness and thermal conduction, while the 3.3 V operating voltage matches the standard SFP power rail used in most networking devices.

Suitable for

• Single-port fiber uplinks in switches and routers
• Fiber media conversion and small form-factor installations
• Point-to-point optical links in enterprise and industrial networks
• Replacement or expansion of SFP-based optical interfaces

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Operating voltage: 3.3 V
• Housing material: metal
• Product colour: silver
• Weight: approx. 0.002 kg (2 g)

How to use

Power down the host device or follow the manufacturer's hot-swap procedure before inserting the SFP transceiver. Align the module with the SFP slot and slide it in until it latches; connect the appropriate fiber optic cable to the transceiver's optical interface. After installation, verify link status and configure the network device's interface parameters as required for the desired data rate and optical mode. To remove, release the latch and withdraw the module according to the host device instructions.

Recommendations

Ensure the transceiver is used with compatible fiber cabling, connectors and network hardware that support SFP modules at 1250 Mbit/s. Avoid touching the optical connector endface and protect it with a dust cap when not connected. Observe electrostatic discharge precautions and operate the module within the device-recommended temperature and power specifications.
