Transceptor SFP de fibra ótica BlueOptics AFCT-5765ANPZ-BO 40000 m

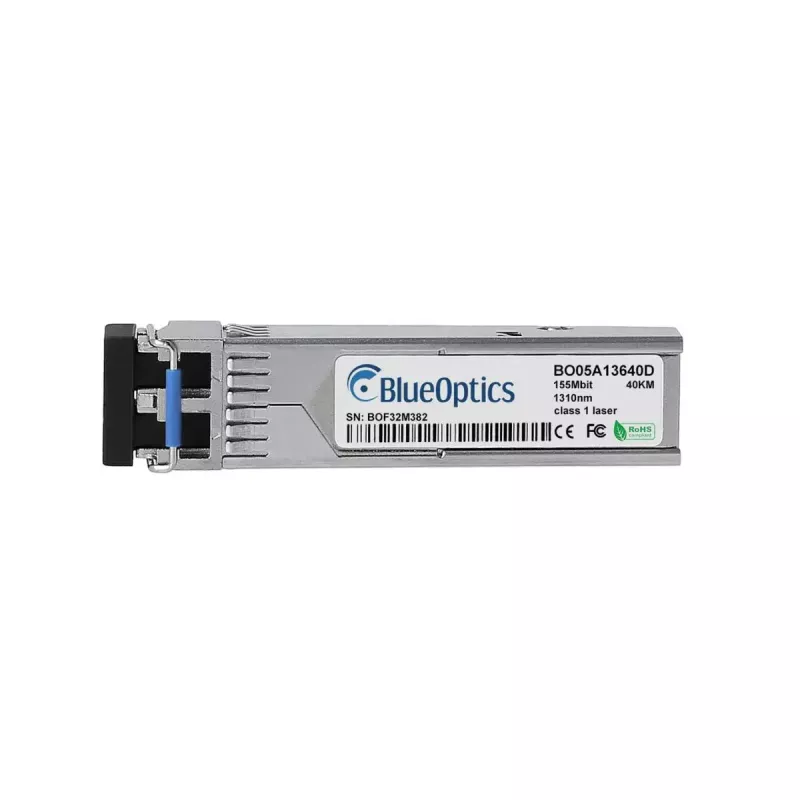

The BlueOptics AFCT-5765ANPZ-BO is a single-mode fiber optic SFP transceiver designed for long-distance network links with a maximum transfer distance of 40,000 m. Housed in an aluminium body and weighing approximately 20 g, this SFP module implements a 100BASE-LH optical interface with LC duplex connector and operates at 1310 nm for both transmitter and receiver. It follows MSA standards and supports common high-speed protocols for Ethernet and related optical applications.

Advantages

This SFP transceiver offers compatibility with Avago AFCT-5765ANPZ platforms while conforming to MSA form-factor and electrical specifications, enabling straightforward replacement or integration into supported switches, routers and storage systems. The aluminium housing provides mechanical durability and thermal dissipation, and the module’s single-mode optical design allows reliable transmission up to 40 km. Tested components and manufacturing according to industry standards deliver predictable performance and long service life.

Suitable for

• Long-distance Ethernet links up to 40 km
• Interconnection of switches and routers in campus and metropolitan networks
• Storage area network (SAN) uplinks and network aggregation
• Optical links in telecom and carrier environments

Key specifications

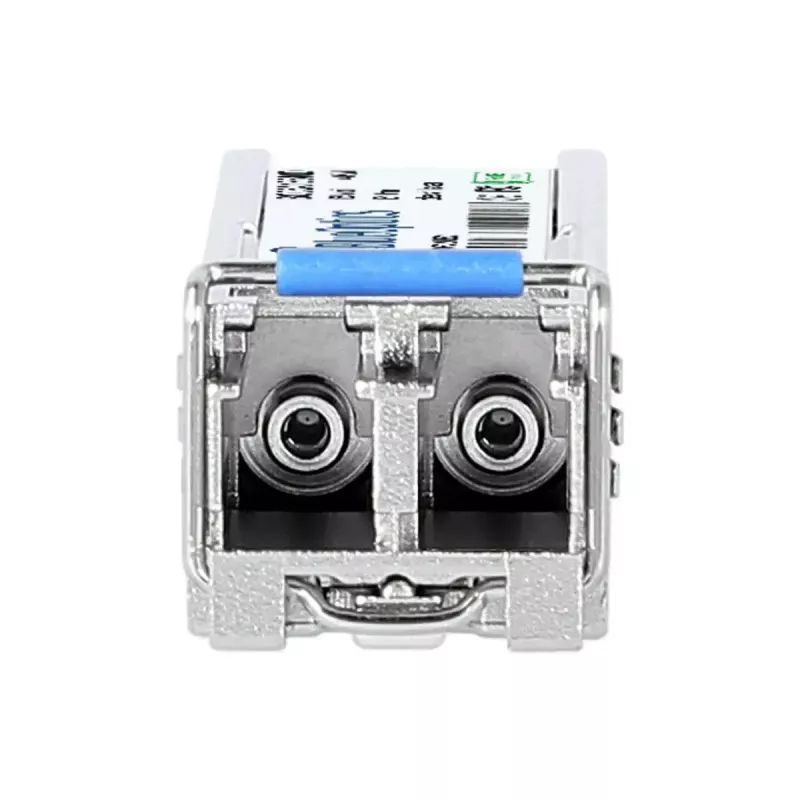

• Interface type: SFP (LC duplex)
• Optical wavelength: 1310 nm (TX and RX)
• Maximum transfer distance: 40,000 m (40 km) over single-mode fiber
• Data rate class: 100BASE-LH (supports Ethernet and similar protocols up to specified rate)
• Housing material: aluminium
• Weight: approx. 0.02 kg

How to use

Insert the BlueOptics AFCT-5765ANPZ-BO SFP transceiver into a compatible SFP slot on your network device following the device manufacturer’s hot-swap or installation instructions. Connect LC duplex single-mode fiber patch cords to the module’s connectors, observing correct TX/RX orientation. Ensure the connected hardware supports the 100BASE-LH protocol and, if digital diagnostics (DDM/DOM) are required, confirm host support to access real-time monitoring data such as supply voltage, laser bias current, output power, input power and temperature.

Recommendations

For optimal link performance, use single-mode fiber and high-quality LC duplex patch cords; keep connector end-faces clean and perform loss measurements after installation. Verify compatibility with your switch or router firmware and enable DDM/DOM only if the host supports it. Store and handle the transceiver in electrostatic-safe conditions and avoid exposing the module to excessive mechanical stress or temperatures outside the device specifications.
