Transceptor SFP28 BlueOptics BO27Q13610D compatível com Ruckus 25G-SFP28-LR, LC Duplex, 25GBASE-LR, monomodo, 10 km

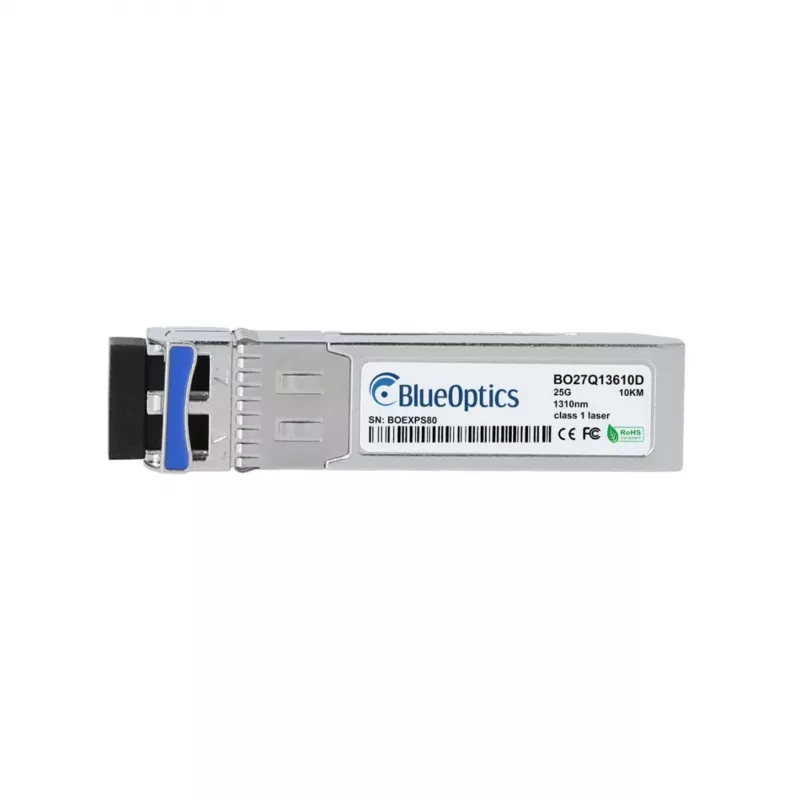

The BlueOptics BO27Q13610D is a high-performance SFP28 transceiver module designed for 25 Gigabit Ethernet applications. It is fully compatible with Ruckus 25G-SFP28-LR equipment, offering reliable connectivity for data centers and enterprise networks. This hot-pluggable module supports single-mode fiber (SMF) with LC duplex connector, delivering data rates up to 25 Gbps over distances up to 10 km.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1.0 W) and robust metal housing ensure long-term reliability.

Suitable for

• 25GBASE-LR Ethernet connections in Ruckus switches and routers
• Data center interconnects and enterprise network uplinks
• Single-mode fiber optic links up to 10 km

Key specifications

• Data Rate: 25 Gbps
• Standard: IEEE 802.3by 25GBASE-LR
• Connector: LC Duplex
• Fiber Type: Single-Mode (SMF)
• Wavelength: 1310 nm
• Max Reach: 10 km
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Form Factor: SFP28
• Transmitter: DFB Laser
• Receiver: PIN Photodiode
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: CE, FCC, RoHS, MSA Compliant
• MTBF: >500,000 hours

Recommendations

For optimal performance, use with Ruckus equipment and single-mode fiber optic cables. Ensure proper handling and installation to maintain signal integrity.
