Transmissor AV Kramer Electronics TP-780Txr

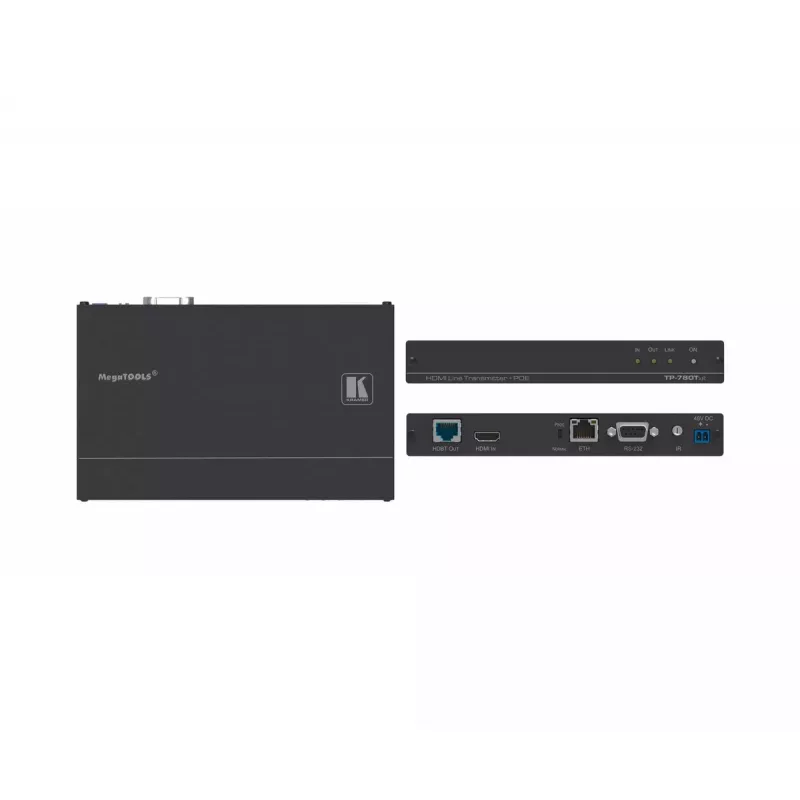

The AV transmitter Kramer Electronics TP-780Txr is a high-performance HDBaseT transmitter for long-distance transmission of HDMI, Ethernet, RS-232 and IR signals over twisted-pair cabling. It supports up to 4K@60Hz (4:2:0) 24bpp video over CAT copper cables to 100 m (330 ft) and longer distances for lower resolutions. The unit is HDMI 2.0 and HDCP 2.2 compliant, housed in a compact black aluminum enclosure and intended for professional AV installations.

Advantages

TP-780Txr converts all input signals into an HDBaseT stream and is compatible with any HDBaseT-compliant receiver. It supports deep color, x.v.Color, uncompressed HDMI audio formats, Dolby TrueHD and DTS-HD, and passes EDID and CEC between source and display. I-EDIDPro provides intelligent EDID handling for plug-and-play operation. The device extends up to 32 channels of uncompressed digital audio and carries bidirectional Ethernet (up to 100 Mbps), RS-232 and IR for device control. Status LEDs and local firmware update via RS-232 simplify maintenance. Single-cable HDBaseT plus power and a fan-less compact MegaTOOLS enclosure allow flexible mounting options.

Suitable for

• Long-distance HDMI signal extension in professional AV installations
• Conference rooms, lecture halls and auditoriums requiring remote device control
• Installations needing Ethernet, RS-232 and IR pass-through alongside video

Key specifications

• Model: TP-780Txr (Kramer Electronics)
• Video support: Up to 4K@60Hz (4:2:0) 24bpp; 2K, 3D supported
• HDMI: HDMI 2.0, HDCP 2.2, EDID and CEC pass-through
• Audio: Up to 32 channels of uncompressed digital audio
• Extension: HDBaseT over CAT copper up to 100 m (330 ft) for 4K; longer for lower resolutions
• Control: Bidirectional RS-232, bidirectional IR, Ethernet extension up to 100 Mbps
• Power: 48 V operation, max current 280 mA (per product data)
• Enclosure: Compact black aluminum MegaTOOLS, fan-less
• Dimensions: 187.5 x 115 x 25.4 mm; Weight: 0.4 kg
• MPN / EAN: 50-80399190 / 7291063077105

How to use

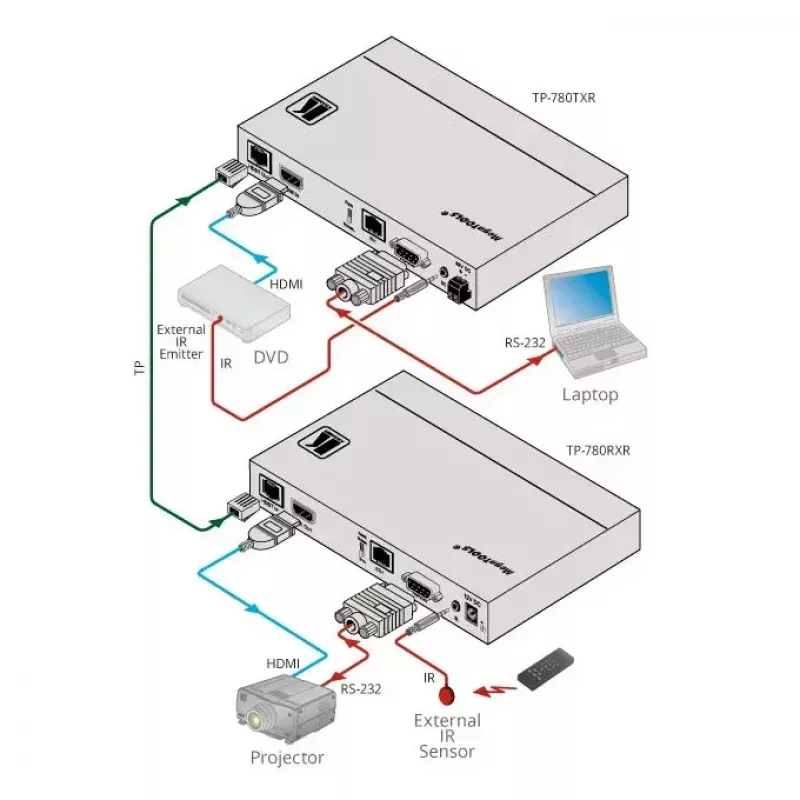

Connect the HDMI source to the TP-780Txr HDMI input and connect the HDBaseT output to an HDBaseT-compliant receiver using CAT copper cable. Provide 48 V power to the unit and verify link LEDs for HDMI and HDBaseT to confirm proper connection. For control, connect RS-232 and Ethernet interfaces or use IR as required. Use the Kramer-recommended cables for optimal reach and performance and follow the receiver’s installation instructions for the remote display.

Recommendations

For best performance, use high-quality shielded CAT cables recommended by Kramer, keep cable runs within specified distances for the required resolution, and perform firmware updates via RS-232 with the K-Upload tool when available.
