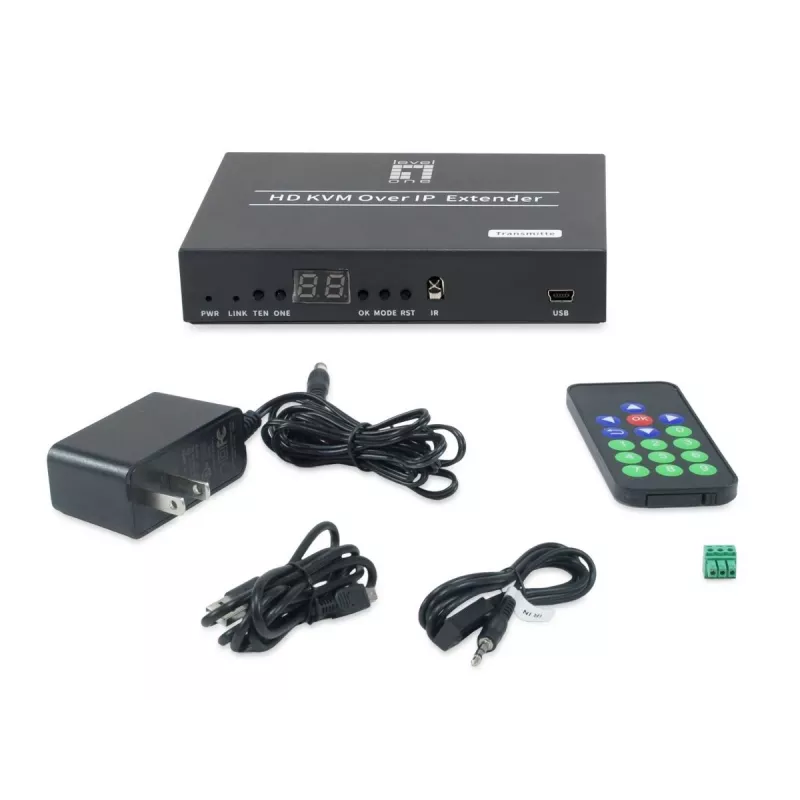

Transmissor AV LEVELONE HVE-6701T — HDMI 1.3b, até 1920×1080, Cat5e/Cat6/Cat7, Mini-USB, 12 V DC

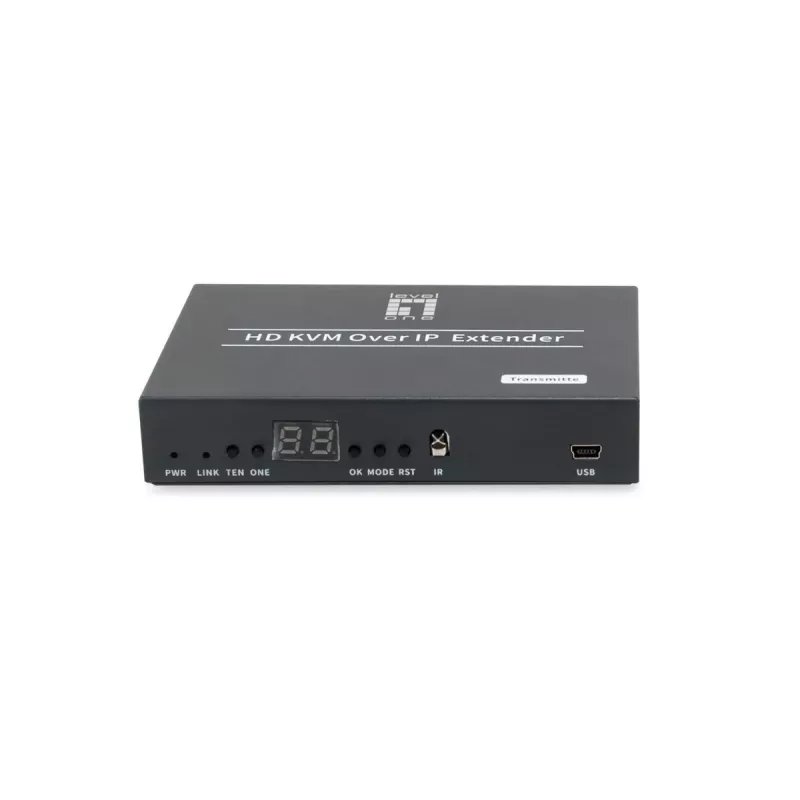

The LevelOne HVE-6701T is an AV transmitter designed for HDMI-over-IP distribution in professional and commercial environments. It supports HDMI 1.3b and HDCP, transmits HDTV resolutions up to 1920 x 1080 (1080p) at 60 Hz over a single CAT5e/6/7 cable, and can be powered via 12 V DC or PoE. The compact black transmitter is intended to work with the HVE-670 series receivers to create flexible point-to-point, point-to-many or many-to-many HDMI distribution systems across a Gigabit Ethernet LAN.

Advantages

The HVE-6701T provides scalable digital signage and AV distribution with support for cascading managed switches to extend content to more than 99 group displays on a LAN. It offers flexible topology options, built-in group selection via a hardware button, and compatibility with standard network cabling for long-distance HDMI transmission up to 150 m. Low power consumption and dual power options (12 V DC or PoE) simplify installation and deployment in varied environments.

Suitable for

• Digital signage in retail stores
• Content distribution in corporate offices and meeting rooms
• Public venues such as transportation hubs and educational facilities
• Small-scale home theatre or AV setups requiring networked HDMI distribution

Key specifications

• Product type: AV transmitter (HVE-6701T)
• Maximum resolution: 1920 x 1080 (1080p) at 60 Hz
• HDMI version: 1.3b, HDCP compliant
• Cable types supported: CAT5e / CAT6 / CAT7 (single cable)
• Maximum transfer distance: 150 m (Point-to-Point)
• Network: Gigabit Ethernet LAN, supports Point-to-Point, Point-to-Many, Many-to-Many
• Power source: 12 V DC or Power over Ethernet (PoE)
• Power consumption (max): 3.3 W
• Physical dimensions (W×D×H): 119 × 81.7 × 23 mm

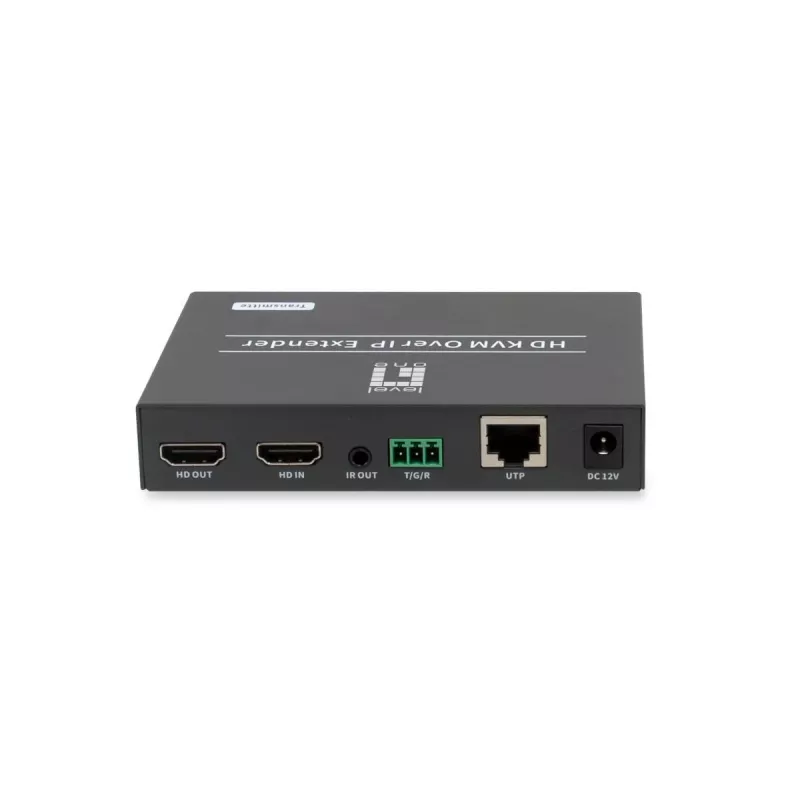

• Connector: HDMI output, wired LAN port, mini-USB (service)

How to use

Connect the HVE-6701T transmitter to an HDMI source and to a Gigabit Ethernet network using a CAT5e/6/7 cable. Power the unit with a 12 V DC adapter or via PoE if available on the network switch. Pair the transmitter with one or more HVE-670 series receivers on the same LAN; use the built-in button to assign or change the display group ID as required. For extended deployments, cascade managed switches to reach additional receivers and configure network topology according to the planned point-to-point or point-to-many layout.

Recommendations

For reliable 1080p transmission up to 150 m use quality shielded CAT6 or CAT7 cabling and managed Gigabit switches that support PoE if you choose network power. Place transmitter and receivers on the same local network and test group assignments after any topology change to ensure correct display mapping.
