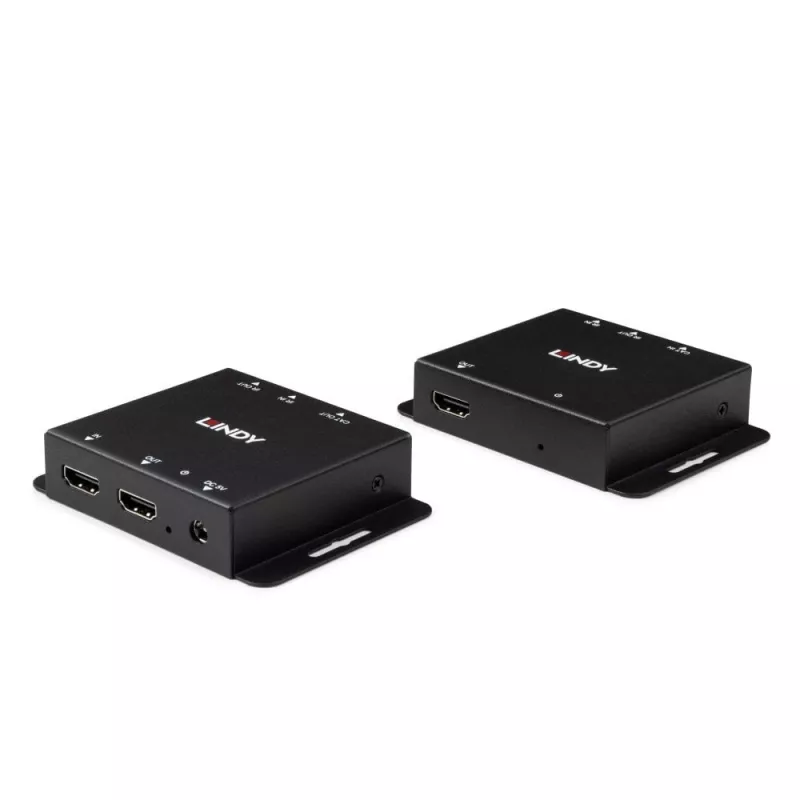

Transmissor e recetor AV Lindy 50m Cat.6 HDMI e IR Extensor 1920x1200

The Lindy 50m Cat.6 HDMI® & IR Extender is a simple to use solution which lets the user extend HDMI® signals up to 50m using a single low cost Cat.6 or above cable (not included).

For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting resolutions up to 1920x1200@60Hz, Full HD video content can be seen at distances up to 50m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.

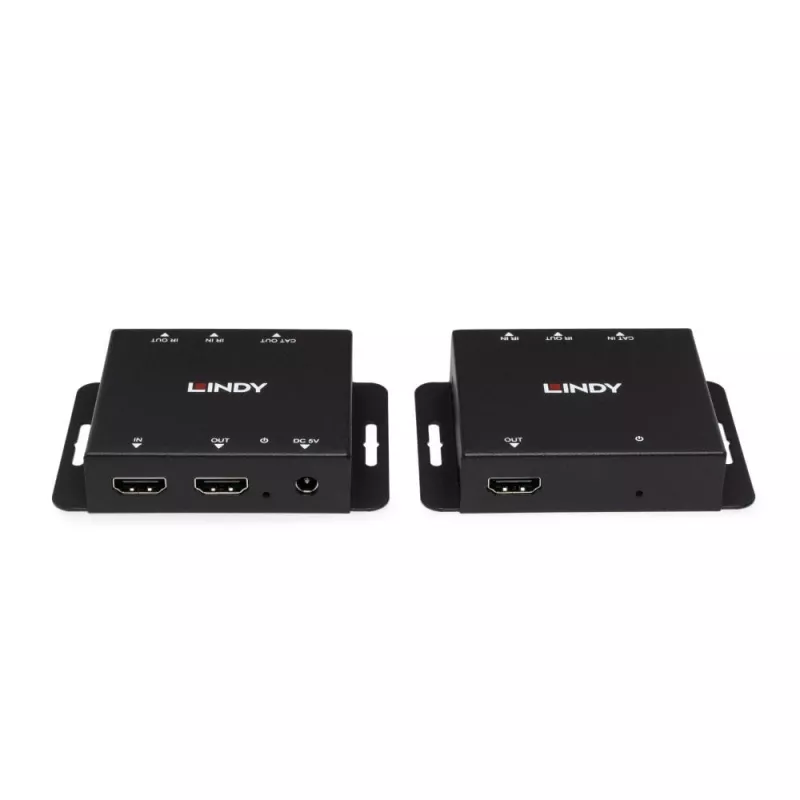

This extender features an HDMI® loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone.

Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.

In addition, the units' slim design with built-in mounting brackets allow it to be installed easily in limited spaces behind flat screen monitors or TVs.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Lindy 50m Cat.6 HDMI & IR Extender with PoC & Loop Out. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Output current: 1 A, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 96 x 20 x 68 mm, Receiver weight: 440 g, Transmitter dimensions (WxDxH): 96 x 20 x 68 mm. Quantity per pack: 1 pc(s), Package width: 215 mm, Package depth: 135 mm

How to use

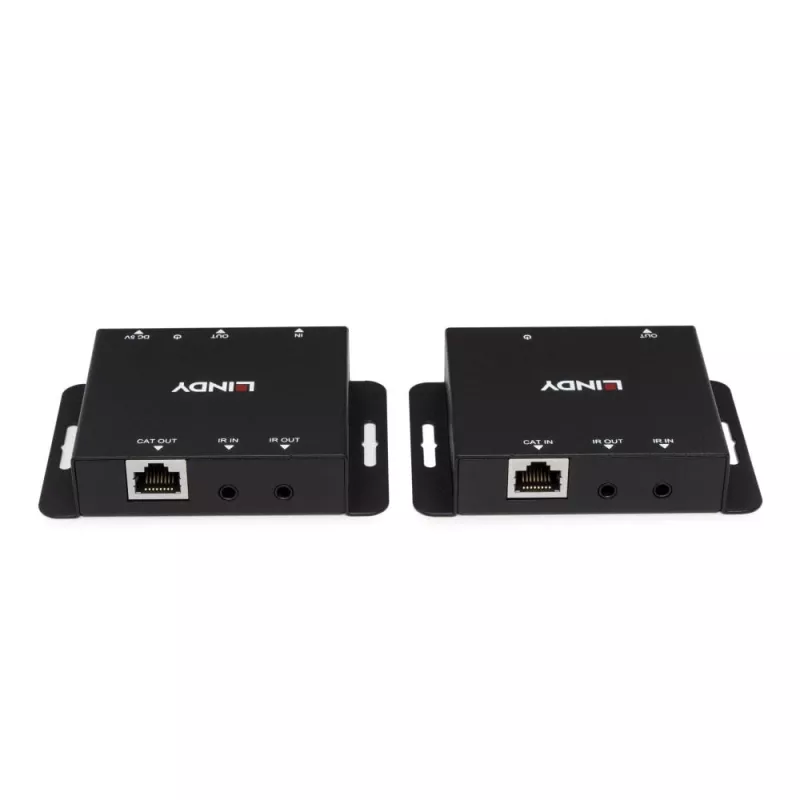

Connect the transmitter to the HDMI source and the receiver to the display using a single Cat.6 (or better) solid core cable up to 50 m. Plug the supplied IR receiver into the display side and the IR emitter into the source side to enable remote control pass-through. If local monitoring is required, connect a display to the HDMI loop-out on the transmitter. Power the system by connecting the power supply to the transmitter; PoC will provide power to the receiver.

Recommendations

For reliable performance at the quoted 50 m distance and maximum resolution, use high-quality Cat.6 (solid core) cable and avoid additional patch panels, wall plates or couplers which can reduce maximum achievable distances and signal quality.
