Transmissor e recetor de rede PLANET LRP-101U-KIT

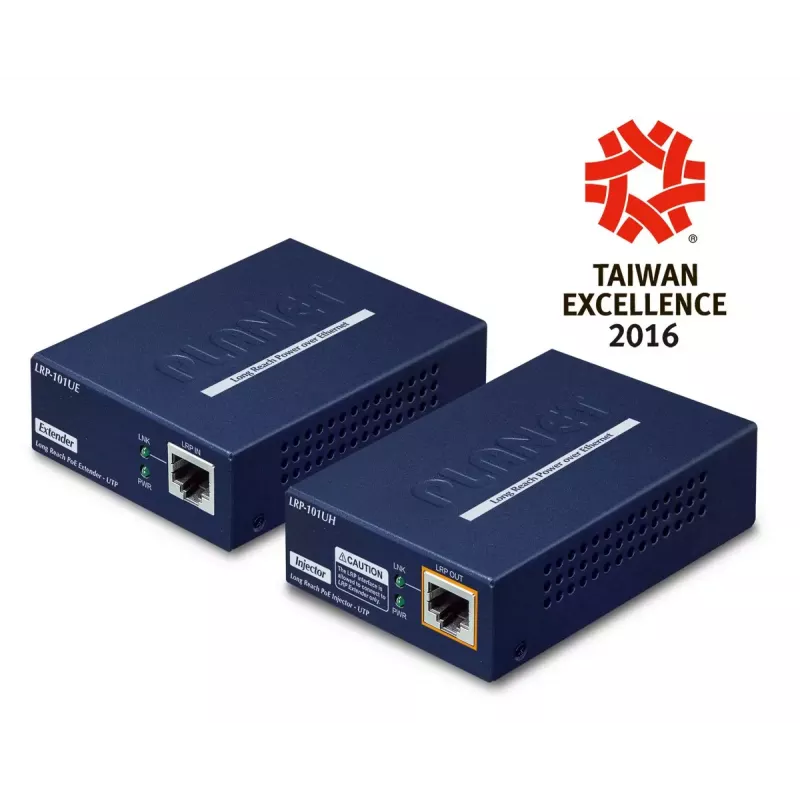

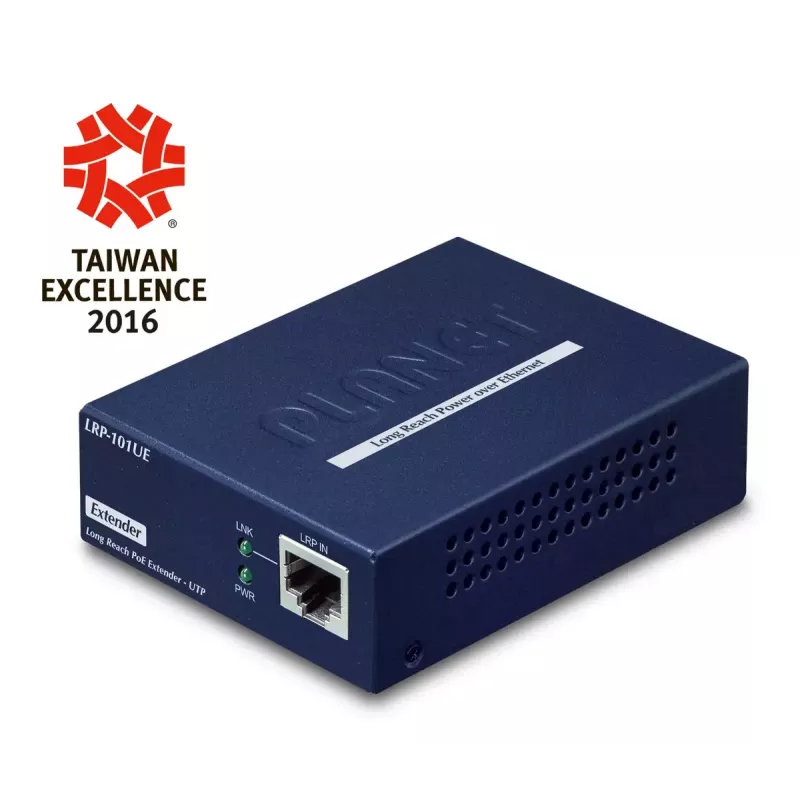

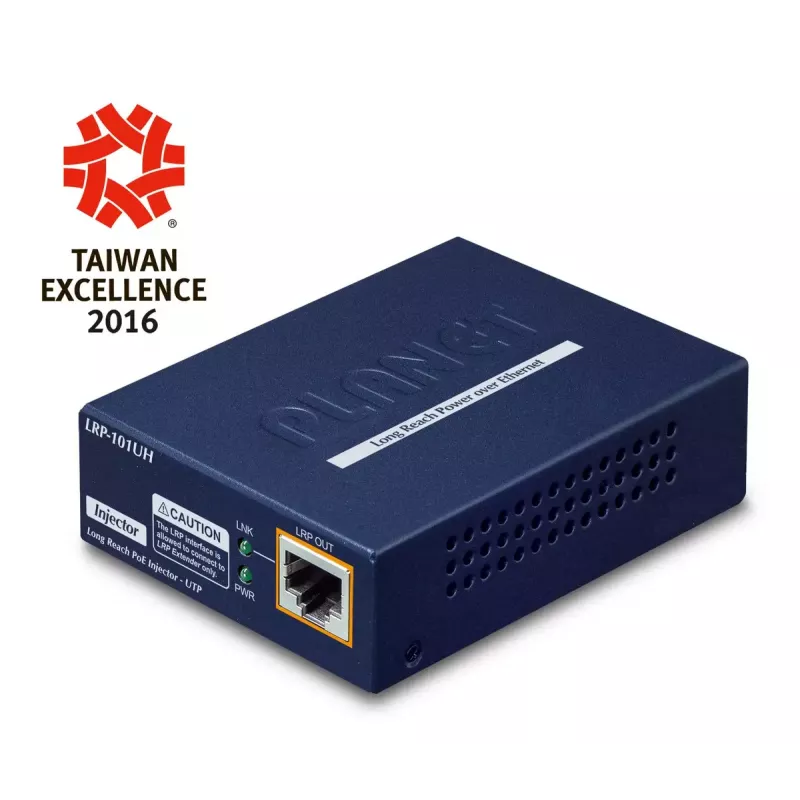

PLANET Long Reach PoE solution LRP-101U-KIT is a network transmitter and receiver kit that extends 10/100 Mbps Ethernet and injects power simultaneously to remote 802.3af/at powered devices beyond the standard 100 m Ethernet limit. The kit supports long-range data and power delivery up to 500 m (1,640 ft) over 4-pair UTP cable and up to 300 m (1,000 ft) over a single twisted pair, and includes a compact, rugged metal injector and extender pair with wall-mounting capability and operating range from -20 to 70 °C.

Advantages

The LRP-101U-KIT provides a point-to-point, plug-and-play PoE over UTP solution that eliminates the need for remote power outlets at the device location. It delivers up to 25 W to IEEE 802.3af/at PoE powered devices, supports Cat5e–Cat7 cables, and offers stable, high-quality transmission over long distances. The metal housing and wide operating temperature range make the kit suitable for demanding outdoor and industrial environments. Front-panel LEDs give clear diagnostic information for straightforward status monitoring.

Suitable for

• Long-distance PoE IP camera deployment (surveillance)
• Wireless AP or wireless LAN extension where power outlets are unavailable
• Access control systems in remote locations
• Warehouses, parking lots, campuses, and similar large-area sites

Key specifications

• Model: PLANET LRP-101U-KIT (injector + extender)
• Data rate: 10/100 Mbps
• Maximum PoE output to PD: up to 25 W
• Reach over 4-pair UTP: up to 500 m (1,640 ft)
• Reach over single twisted-pair: up to 300 m (1,000 ft)
• PoE standard: IEEE 802.3af/at compliant
• Operating temperature: -20 to 70 °C
• Housing: rugged metal, wall-mountable
• Security: 128-bit AES (device supports secure transmission)
• Output voltage: 48 V

How to use

Install the injector unit near the power source and connect it to the network switch using standard Ethernet. Run a 4-pair UTP cable (or existing twisted pair) from the injector to the extender located up to the supported distance. Connect the extender to the PoE PD (for example, IP camera or wireless AP) with a short Ethernet cable. Power on the injector; the system is plug-and-play and requires no additional configuration. Monitor front-panel LEDs to verify link, power and operating status.

Recommendations

Use Category 5e or better UTP cable (Cat5e–Cat7 recommended) for optimal signal quality. For the longest stable video transmission, avoid running UTP close to high-voltage power lines and choose shielded cable in electrically noisy environments. Verify PD power requirements to ensure the 25 W maximum output meets device needs.
