TRIAX GHV 530 BK Amplificador de entrada de casa 20 dB ganho direto para GHV 30E 323142

With a forward gain of 20 dB across 47-862 MHz and an active return path delivering 20 dB from 5-30 MHz, the TRIAX GHV 530 BK is engineered for reliable signal distribution in cable TV networks. This building entry amplifier ensures consistent performance with a noise figure below 7 dB and a maximum output level of 105 dBµV (EN 60728-3, 35 dB IMA3).

Overview

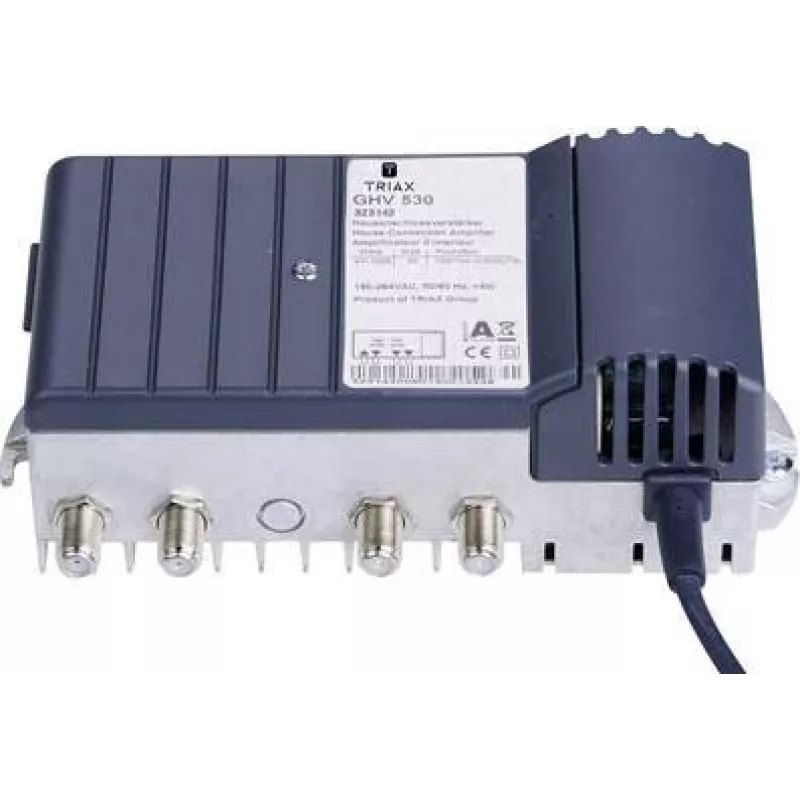

The GHV 530 BK is a die-cast metal housing amplifier designed for headend and distribution applications. It features F-type connectors, 75 Ohm impedance, and a -20 dB output test point for convenient monitoring. The unit operates from 230 V AC, consuming approximately 5 W, and is rated for temperatures from -20 to +50 °C.

What stands out

• Active return path with 20 dB gain for bidirectional services
• Class A shielding (EN 50083-2) for superior interference rejection
• Compact die-cast housing for durability and heat dissipation
• Test point enables easy signal measurement without service interruption

Technical details

• Forward gain: 20 dB (±1.5 dB)
• Forward frequency range: 47 - 862 MHz
• Return path gain: 20 dB
• Return path frequency range: 5 - 30 MHz
• Noise figure (forward): < 7 dB
• Max output level (forward): 105 dBµV (EN 60728-3, 35 dB IMA3)
• Input/output impedance: 75 Ohm
• Connectors: F-type (1 input, 1 output)
• Power supply: 230 V AC, 50 Hz
• Power consumption: approx. 5 W
• Shielding class: Class A (EN 50083-2)
• Test point: -20 dB output
• Housing material: die-cast metal
• Operating temperature: -20 to +50 °C

Our verdict

A robust and precise amplifier for professional CATV installations, offering balanced gain and low noise for dependable signal quality.
