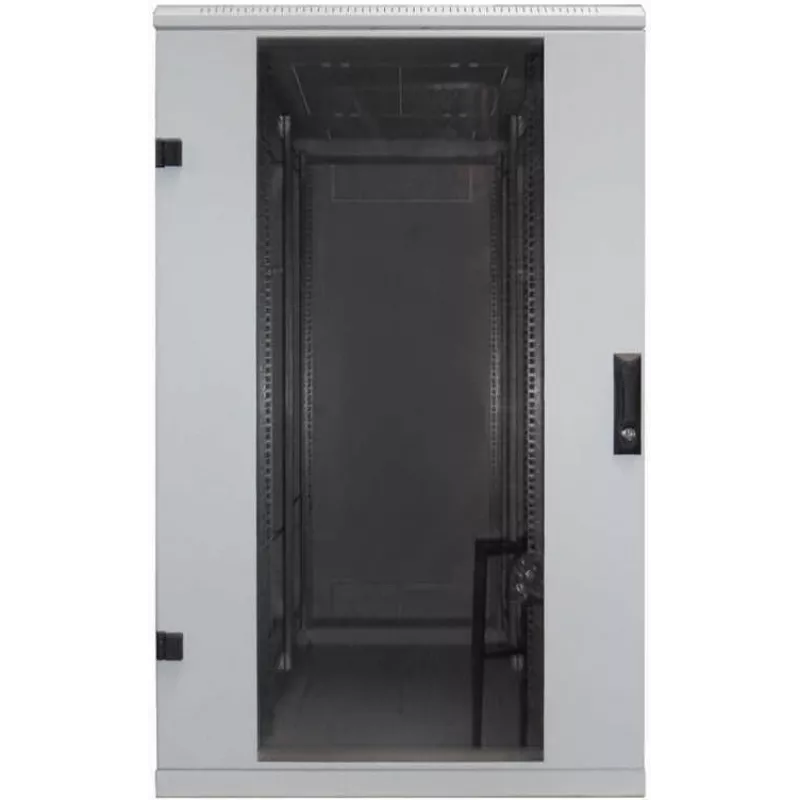

TRITON 19 armário de rede RMA 800 x - Rack (RMA-27-A88-CAX-N1)

Server rooms and network closets demand robust, secure enclosures that can handle heavy equipment while keeping cable management simple. The TRITON RMA-27-A88-CAX-N1 answers this with a welded steel frame rated for up to 800 kg, 27U of 19" rack space, and a footprint of 800x800 mm. Its removable side and rear panels, reversible double doors, and adjustable vertical rails make installation and maintenance straightforward, even in tight spaces.

Who is it for

IT administrators, system integrators, and facility managers who need a dependable floor-standing cabinet for servers, networking gear, or AV equipment. It suits data centres, enterprise server rooms, industrial environments, and any site where equipment security and airflow are priorities.

Main features

• Welded steel frame with 800 kg static load capacity for heavy equipment.
• 27U height, 19" standard, with front and rear adjustable mounting rails.
• Double doors with plug-in hinges open nearly 180° and are reversible or removable.
• Tempered glass front door and solid steel rear door with keyed alike locks.
• Removable side panels and rear panel, all lockable.
• Passive ventilation with optional fan-ready design; cable entry top and bottom.
• Includes leveling feet, castors, 2 keys, and 16 cage nuts.

Specifications

• Rack capacity: 27U
• External dimensions (W x D x H): 800 x 800 x 1340 mm
• Usable depth (min-max): 650-700 mm
• Maximum weight capacity: 800 kg
• Material: Steel
• Colour: Black (RAL 9005)
• Protection rating: IP20
• Front door: Tempered glass, lockable, removable
• Rear door: Solid steel, lockable
• Side panels: Removable, lockable
• Mounting type: Floor standing
• Adjustable mounting rails: Yes, front and rear
• Cable entry: Top and bottom
• Ventilation: Passive, fan ready
• Included accessories: 2 keys, 16 cage nuts, leveling feet, castors
• Compliance: RoHS, EN 60950-1

Tips

For active cooling, order the optional RAx-CH-X0x-X3 ventilation unit and a solid door designed for it. The lever handle can be upgraded to a semi-cylindrical locking cylinder (not included) for higher security. Use the adjustable rails to fine-tune depth for deep servers or cable management arms.
