TRU COMPONENTS 1303040 GQ22S-11E/R/12V Botão de pressão antivandalismo, pulsador, 1 NA, 250 V AC, 3 A, iluminação de anel vermelha 12 V DC, IP65, montagem 22 mm

With a robust stainless steel actuator and IP65 protection, this vandal-resistant pushbutton switch is built to withstand demanding environments. The momentary action and 1 NO contact configuration provide reliable switching for control panels, access systems, and industrial equipment.

Overview

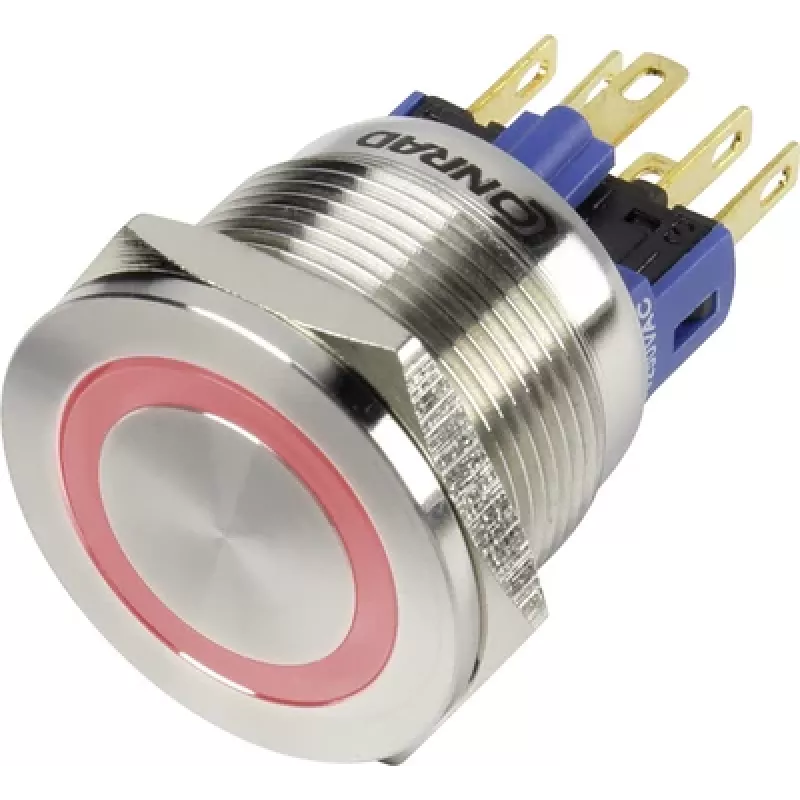

The TRU COMPONENTS 1303040 is a 22 mm mounting diameter pushbutton switch featuring a red actuator and a red illuminated ring. The ring illumination operates at 12 V DC, providing clear status indication. The switch is rated for up to 250 V AC and 3 A, making it suitable for a wide range of low-voltage control applications.

What stands out

• Vandal-protected design with stainless steel actuator for durability
• IP65 rated against dust and water jets
• Red ring illumination at 12 V DC for clear visual feedback
• Momentary switching function with 1 NO contact
• Long mechanical life of 500,000 cycles

Technical details

• Switching function: momentary (tastend)
• Contact configuration: 1 NO (normally open)
• Max. switching voltage: 250 V AC
• Max. switching current: 3 A
• Actuator colour: red
• Illumination type: ring illumination
• Illumination colour: red
• Illumination voltage: 12 V DC
• Protection rating: IP65
• Mounting diameter: 22 mm
• Actuator material: stainless steel
• Terminal type: solder terminals
• Operating temperature range: -20 to +55 °C
• Mechanical life: 500,000 cycles
• Electrical life: 50,000 cycles

Our verdict

A reliable and robust pushbutton switch for applications where durability and clear indication are essential. The IP65 rating and stainless steel construction make it a solid choice for public or industrial use.
