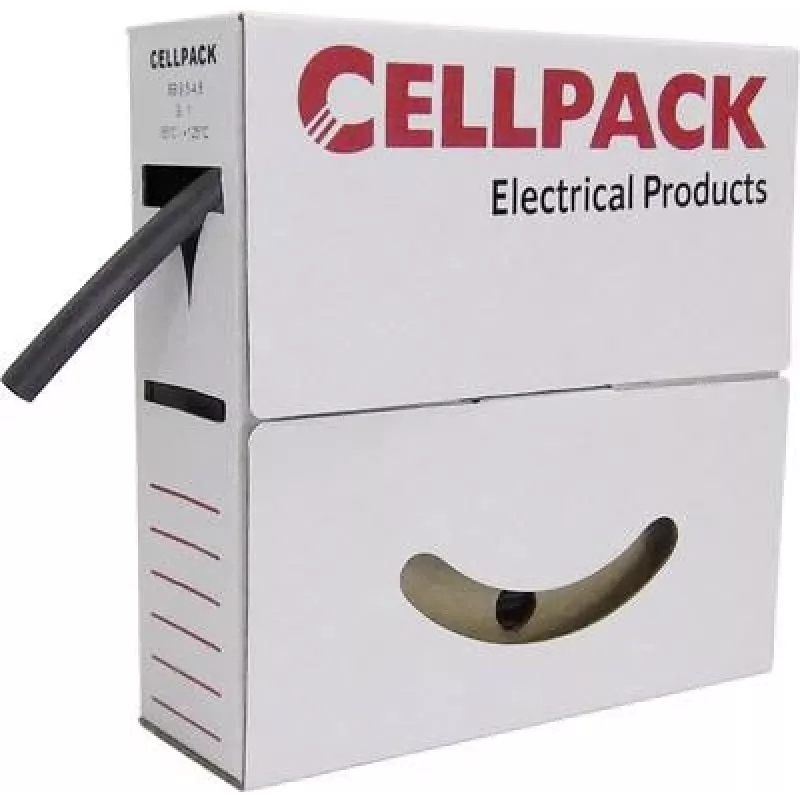

Tubo termorretrátil CellPack 1600928 verde-amarelo 6 mm 3:1 10 m

CellPack heat shrink tubing 1600928 in green-yellow is a 6 mm nominal diameter, 3:1 shrink ratio product supplied on a 10 m length. It is intended for insulating, protecting and bundling wires, terminals and connectors in a wide range of electrical and electronic applications. The tubing provides reliable electrical insulation and additional mechanical protection to small cables, solder joints and terminal connections while offering clear color coding for identification.

Advantages

The tubing combines a 3:1 shrink ratio with a flexible material that conforms to irregular shapes and forms a tight, protective covering after heat application. Its green-yellow color enables quick identification and color coding of earth/ground conductors or other designated circuits. The 6 mm nominal diameter before shrinking accommodates a variety of conductor sizes, and the 10 m length on a roll supports multiple installations without frequent replenishment.

Suitable for

Key specifications

How to use

Slide the tubing over the wire, connector or joint before making the electrical connection if possible. Apply heat evenly using a heat gun, hot air tool or controlled flame while maintaining a safe distance to avoid overheating. Heat until the tubing shrinks tightly around the component and conforms to the shape; allow it to cool so the material sets. For best results, ensure surfaces are clean and free of oils or contaminants before application.

Recommendations

Select a tubing diameter that provides sufficient overlap after shrinking for a secure fit. Use a regulated heat source to avoid damaging insulation or nearby components. For applications requiring moisture or chemical resistance, verify compatibility of the heat-shrink material with environmental conditions and consider additional sealing methods if needed.
