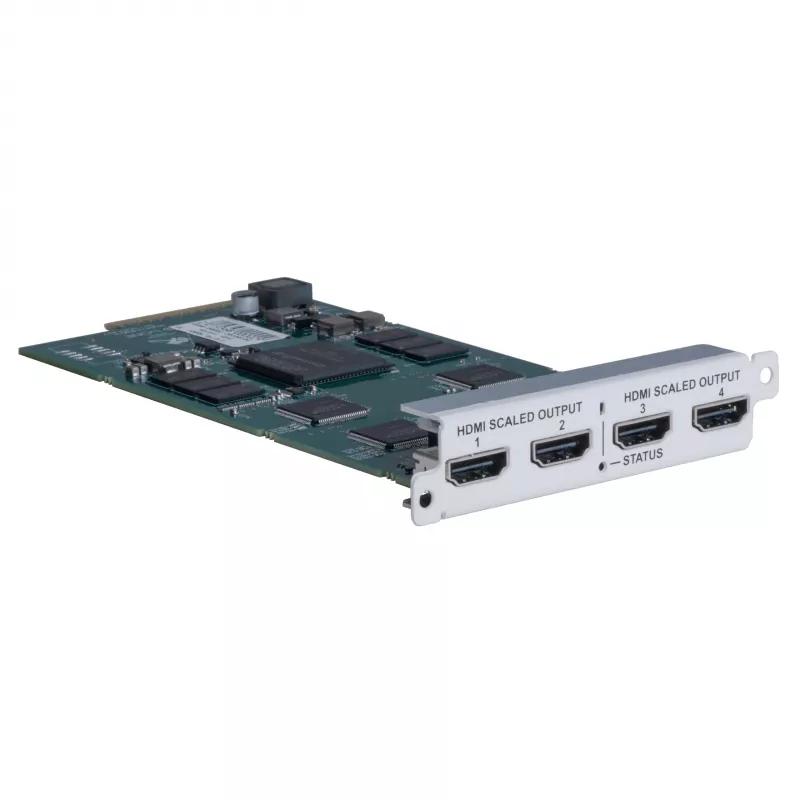

tvONE CORIOmaster módulo de saída Quad-HDMI-1080p com escalonamento, 4x saídas HDMI (CM-HDMI-SC-4OUT)

Control room operators and broadcast engineers rely on the tvONE CORIOmaster Scaled Output Module to drive multiple displays with pixel-perfect clarity. This expansion module installs into any CORIOmaster chassis and delivers two independent scaled outputs through DVI-I connectors, handling both digital and analog signals up to 2K resolution. Advanced EDID management and genlock synchronization keep every panel in a video wall perfectly aligned, while the high-quality scaling engine ensures low-latency, artifact-free images in mission-critical environments.

Key specifications

• Module type: Scaled output module for CORIOmaster series
• Number of outputs: 2 independent
• Output connector: DVI-I (digital and analog)
• Maximum digital resolution: 1920x1200 @ 60Hz (WUXGA) or 2048x1080 (2K)
• Maximum analog resolution: 2048x1080 @ 60Hz
• HDCP support: Yes, HDCP 1.4
• EDID management: Advanced
• Color depth: 24-bit (16.7 million colors)
• Scaling engine: High-quality up/down scaling
• Frame rate conversion: Yes
• Aspect ratio control: Yes
• Genlock: Yes
• Compatibility: CORIOmaster chassis C3-540, C3-510, C3-503, C3-507
• Slot requirement: 1 universal slot
• Processing latency: Very low
• Control interface: CORIOmaster software
• Video standards: PC and HDTV resolutions

Why choose it

This module offers exceptional flexibility for complex video wall installations. Dual independent outputs allow you to drive separate displays or zones from a single slot, reducing chassis footprint and cost. Genlock capability ensures all connected displays are synchronized frame-by-frame, eliminating tearing and stutter in multi-panel setups. The advanced scaling engine maintains image quality across a wide range of input and output resolutions, making it suitable for both standard and high-resolution content.

Ideal use cases

• Video wall installations requiring multiple scaled outputs
• Control rooms and monitoring centers
• Broadcast studios and post-production facilities
• Digital signage networks with synchronized content
• Corporate lobbies and command centers

Good to know

Installation is straightforward: the module occupies a single universal slot in any compatible CORIOmaster chassis and is configured through the intuitive CORIOmaster software. No additional drivers are required. For optimal performance, pair with a compatible CORIOmaster chassis and ensure firmware is up to date. The module supports both digital and analog outputs, providing flexibility for legacy displays and modern digital panels.
