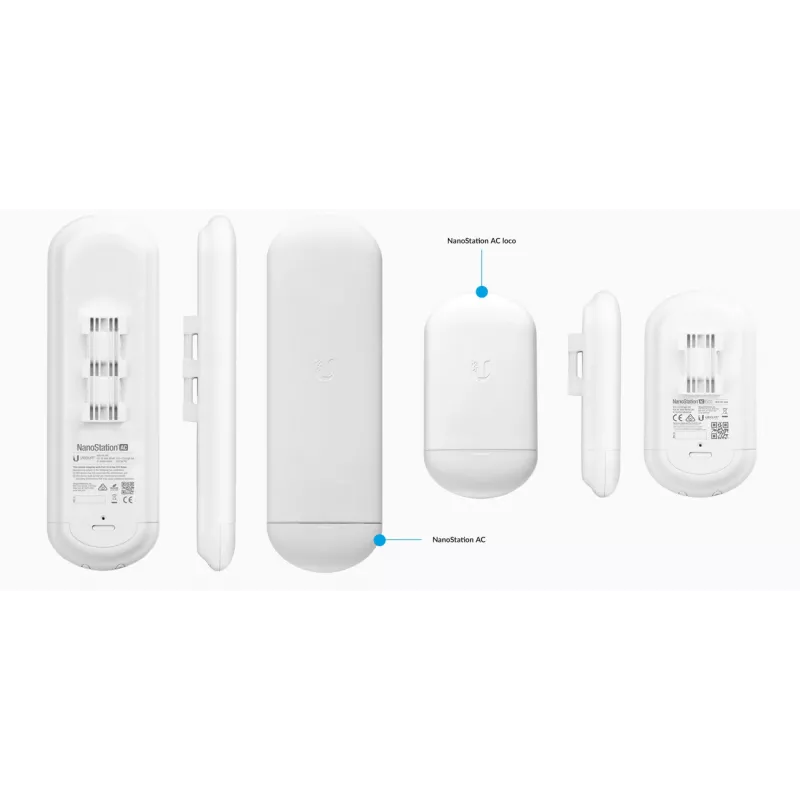

Ubiquiti NanoStation AC loco NS-5ACL - estação base sem fios - AirMax ac - 5 GHz (pack de 5)

The Ubiquiti NanoStation AC loco NS-5ACL is a high-performance outdoor wireless base station designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) applications. Featuring airMAX ac technology and a 13 dBi integrated directional antenna, this device delivers throughput of over 450 Mbps on the 5 GHz band. This pack includes 5 units, ideal for scalable deployments.

Advantages

With its compact form factor and robust outdoor enclosure, the NanoStation AC loco offers reliable connectivity in harsh environments. The airMAX ac TDMA protocol ensures low latency and high spectral efficiency, making it suitable for ISP backhaul, surveillance, and enterprise networks. Easy installation with included pole-mount kit and management via airOS web interface.

Suitable for

• Wireless ISPs for customer premises equipment (CPE) or backhaul
• Video surveillance systems requiring long-range links
• Enterprise campus network extensions
• Public Wi-Fi hotspots

Key specifications

• Wireless Standard: IEEE 802.11a/n/ac
• Frequency Band: 5 GHz
• Max Throughput: 450+ Mbps
• Antenna Gain: 13 dBi
• Antenna Type: Integrated Directional
• Operating Modes: Access Point, Station, PtP, PtMP
• Processor: MIPS 74Kc
• Memory: 64 MB DDR2
• Networking Interface: 1x 10/100/1000 Ethernet Port
• Power Method: 24V Passive PoE (Pairs 4,5+; 7,8 Return)
• Max Power Consumption: 8.5 W
• Enclosure Material: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount Kit Included
• Operating Temperature: -40 to 70°C
• Operating Humidity: 5 to 95% Noncondensing
• Management Interface: airOS via Web UI
• Wireless Security: WPA2 AES
• Range: Up to 10+ km
• Pack Quantity: 5 Units

Recommendations

For optimal performance, pair with Ubiquiti PoE switches or injectors. Ensure clear line of sight for maximum range. Suitable for outdoor use; IP rating not specified but UV stabilized plastic provides weather resistance.
