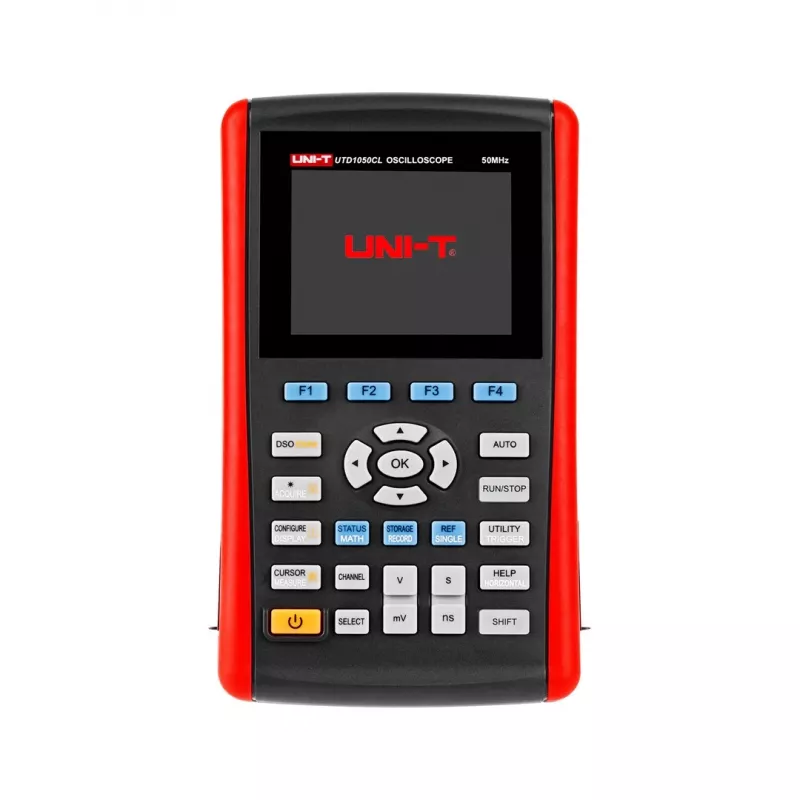

UNI-T UTD1050CL Osciloscópio 50 MHz 2 canais

The UNI-T UTD1050CL is a high-performance 50 MHz digital oscilloscope designed for precise signal analysis in education, service, and embedded development. With 2 channels and a maximum real-time sample rate of 250 MS/s, it captures fast transients and detailed waveforms. The 5.7-inch TFT LCD display provides clear visualization, while 28 automatic measurements and multiple trigger modes simplify troubleshooting.

Advantages

Reliable 50 MHz bandwidth for general-purpose and automotive electronics. Dual-channel input with 25 kpts memory depth per channel ensures accurate capture. USB connectivity for data transfer and remote control. Compact design with intuitive interface.

Suitable for

• Electronics repair and service technicians
• Educational labs and training
• Embedded system development
• Hobbyists and makers

Key specifications

• Bandwidth: 50 MHz
• Channels: 2
• Real-time Sample Rate: 250 MS/s (max)
• Memory Depth: 25 kpts per channel
• Rise Time: ≤7 ns
• Vertical Sensitivity: 5 mV/div - 20 V/div
• Time Base Range: 5 ns/div - 50 s/div
• Display: 5.7-inch TFT LCD, 320x240 pixels
• Input Impedance: 1 MΩ ±2% || 18 pF ±3 pF
• Max Input Voltage: 400 V (DC+AC Peak)
• Trigger Modes: Edge, Pulse, Video, Slope, Alternate
• Interface: USB Host, USB Device
• Automatic Measurements: 28 types
• Waveform Storage: 20 waveforms
• Vertical Resolution: 8-bit
• Input Coupling: DC, AC, GND
• Power Supply: 100-240 V AC, 50/60 Hz

Recommendations

For best results, use with included probes and USB cable. Suitable for bench-top use in dry environments.
