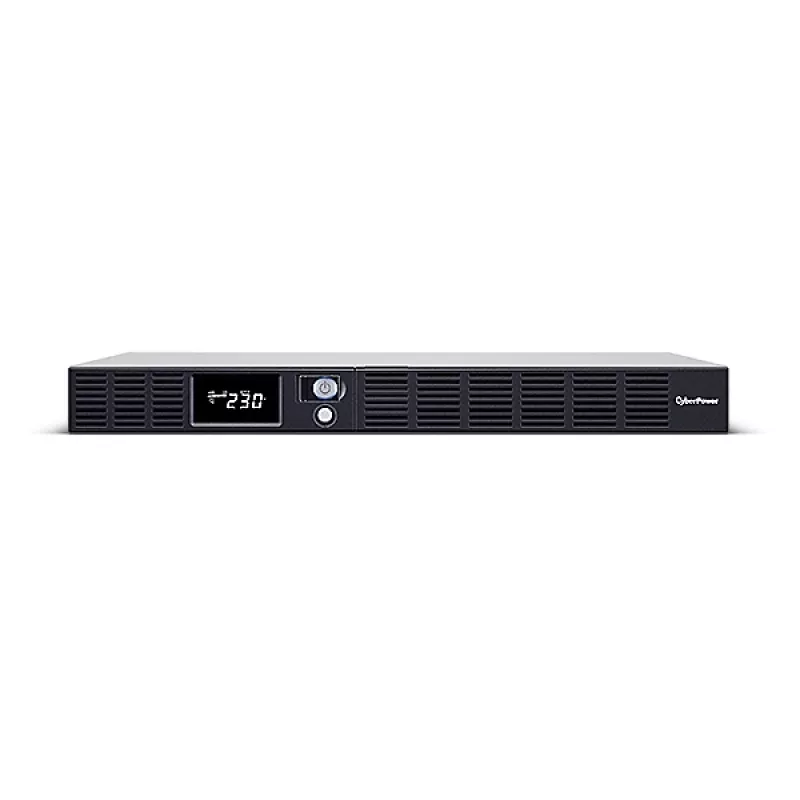

Unidade de alimentação ininterrupta CYBERPOWER OR1000ERM1U — 1 kVA (600 W), line-interactive, rack 1U, 6× saídas C13, LCD, prateado

The CyberPower OR1000ERM1U is a line-interactive uninterruptible power supply (UPS) providing 1 kVA / 600 W output capacity and simulated sine wave power. Designed for rackmount installation with convertible tower capability, it protects office systems, workstations, networking devices and peripherals by supplying backup power during mains failures. The unit features a metal housing, six AC outlets and a sealed lead‑acid battery, with a typical runtime of approximately 14 minutes at half load.

Advantages

The OR1000ERM1U offers real-time status via a multifunction LCD that displays input/output voltages, load and battery levels, estimated battery runtime and overload warnings. Network surge protection on its communication ports helps prevent damage from lightning-induced spikes. Its rackmount/tower convertible design increases installation flexibility, and hot-swappable battery capability allows battery replacement or maintenance without shutting down connected equipment.

Suitable for

• Office PCs and workstations
• Small server or back‑office equipment in server rooms and data centers
• Networking devices and peripherals (routers, switches, NAS)
• Environments requiring rackmount or tower installation

Key specifications

• Output power capacity: 1 kVA
• Output power: 600 W
• Output waveform: Simulated sine wave
• AC outlets: 6
• Battery type: Sealed lead‑acid (hot‑swappable)
• Typical runtime: ~14 minutes at 50% load
• Form factor: Rackmount with tower convertible design
• Weight: 13.7 kg
• Color: Silver
• Certifications: RoHS, CE, EAC, RCM

How to use

Install the UPS in a rack or place it as a tower following the manufacturer’s mounting instructions. Connect critical devices to the UPS AC outlets and plug the UPS into a grounded mains outlet. Use the multifunction LCD to monitor input/output voltages, load and battery state. In the event of a mains failure, the UPS will automatically switch to battery power to keep connected equipment running. For network-connected devices, connect the communication ports as required to enable surge protection for network lines.

Recommendations

For reliable operation, position the UPS in a well-ventilated, temperature-controlled area and avoid placing heavy objects on the unit. Periodically check battery condition via the LCD and replace batteries using the hot-swap procedure when runtime declines significantly. Do not exceed the 600 W output rating and distribute loads across outlets appropriately.
