Unidade de distribuição de energia BACHMANN BN PRO M RCM 16xC13 4xC19 3m CEE 16A/3p

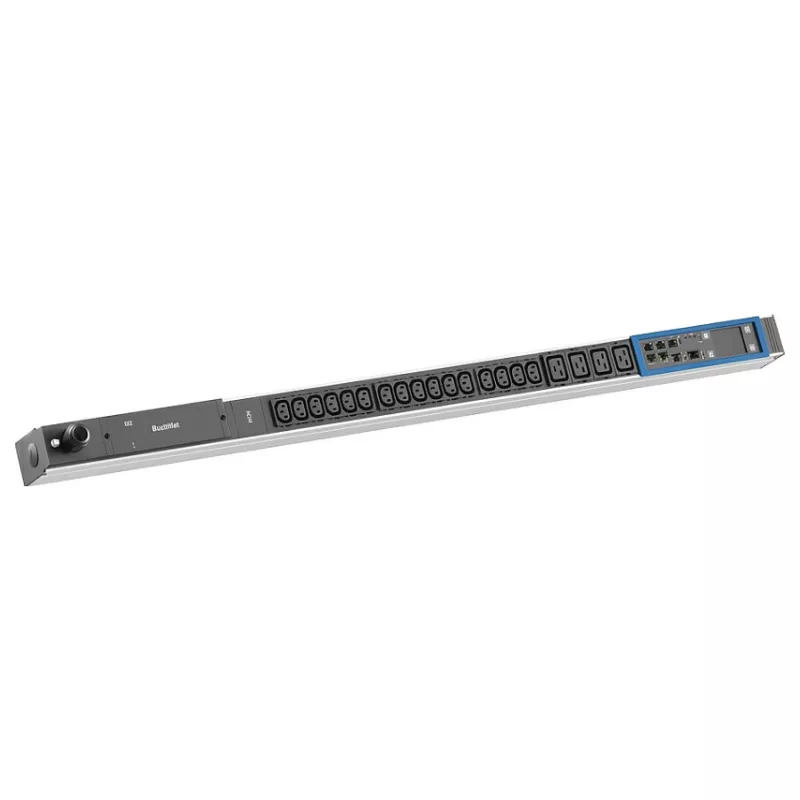

The BACHMANN BN PRO M RCM is a professional 0U vertical power distribution unit (PDU) designed for data centers and IT environments requiring reliable 3-phase power distribution with integrated residual current monitoring. With 16 C13 and 4 C19 outlets, a 3-meter input cable, and a CEE 16A 5-pin plug, this PDU ensures efficient power delivery and safety.

Advantages

Integrated residual current monitoring (RCM) Type A provides all-current-sensitive protection, enhancing safety. The anodized aluminum housing offers durability and heat dissipation. Phase status LEDs and RCM status LED allow quick visual diagnostics. Vertical 0U mounting saves rack space.

Suitable for

• Data centers and server rooms requiring 3-phase power distribution
• IT equipment with C13 and C19 power connectors
• Applications needing residual current monitoring for safety compliance

Key specifications

• Product Type: Power Distribution Unit (PDU)
• Form Factor: 0U Vertical Rackmount
• Input Connector: CEE 16A 5-pin (3P+N+PE)
• Input Voltage: 400V AC (3-Phase)
• Input Current Rating: 16A per phase
• Number of C13 Outlets: 16
• Number of C19 Outlets: 4
• Total Outlets: 20
• Cable Length: 3.0 meters
• Residual Current Monitoring: Yes, Type A
• Housing Material: Anodized Aluminum
• Max Total Power: Approx. 11 kW
• Protection Class: IP20
• Color: Black/Silver
• Operating Temperature: 0°C to 45°C

Recommendations

For optimal performance, ensure the PDU is installed by a qualified electrician and connected to a suitable 3-phase power source. Regularly inspect the RCM status for any fault indications.
