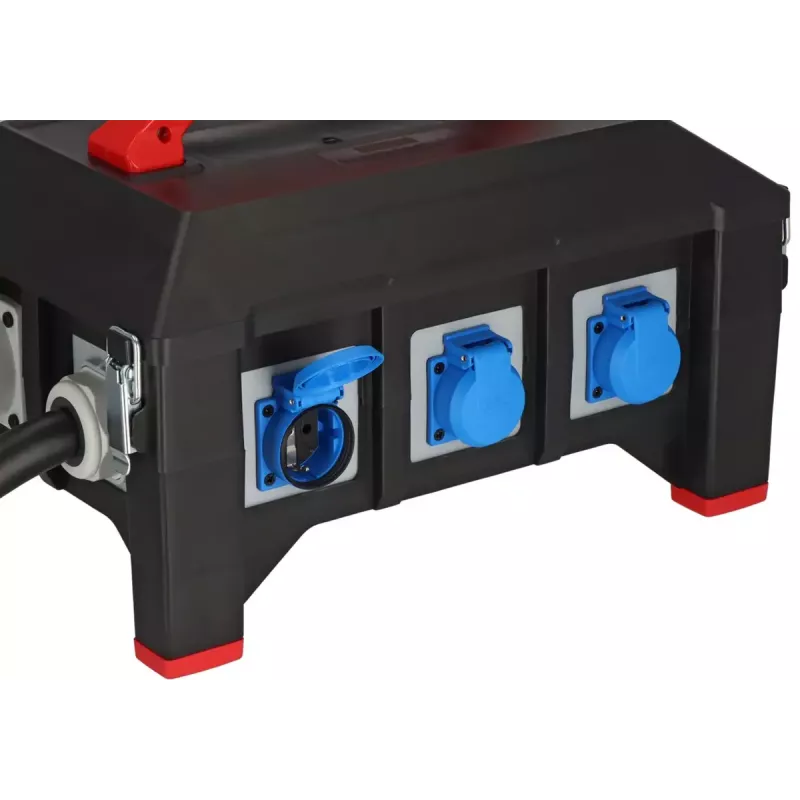

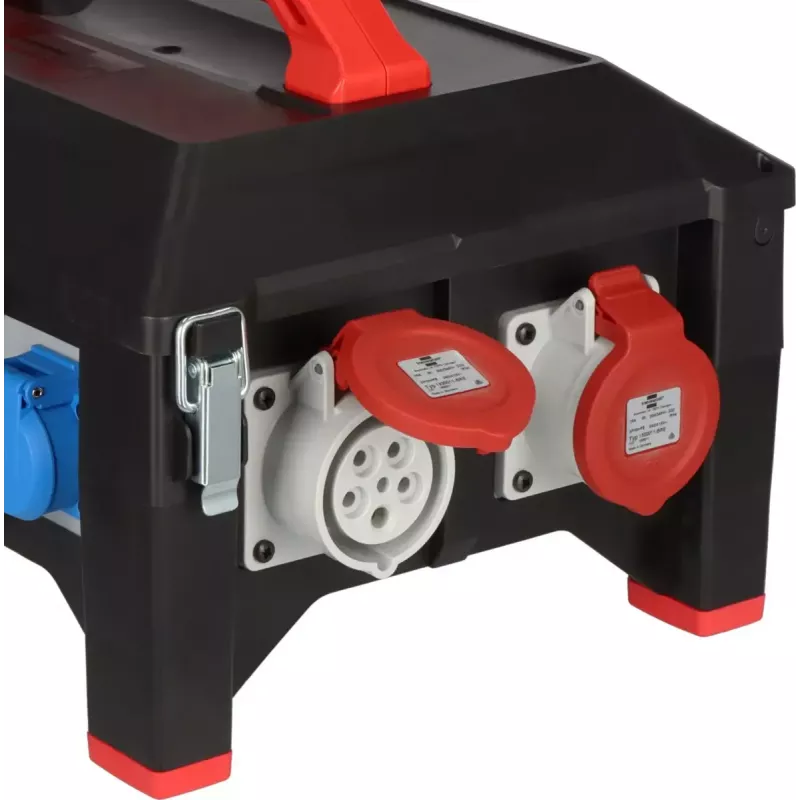

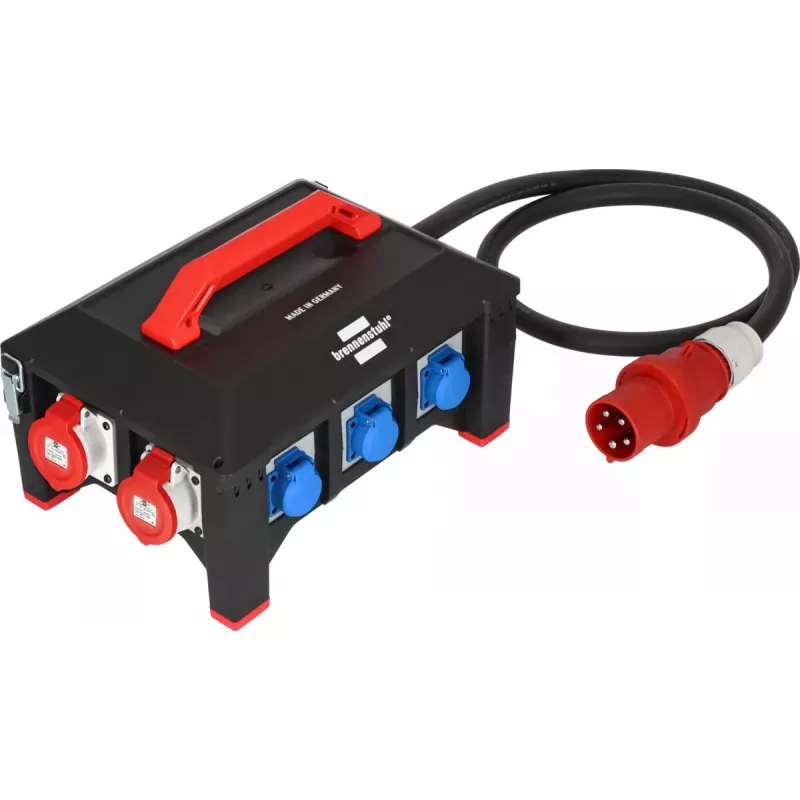

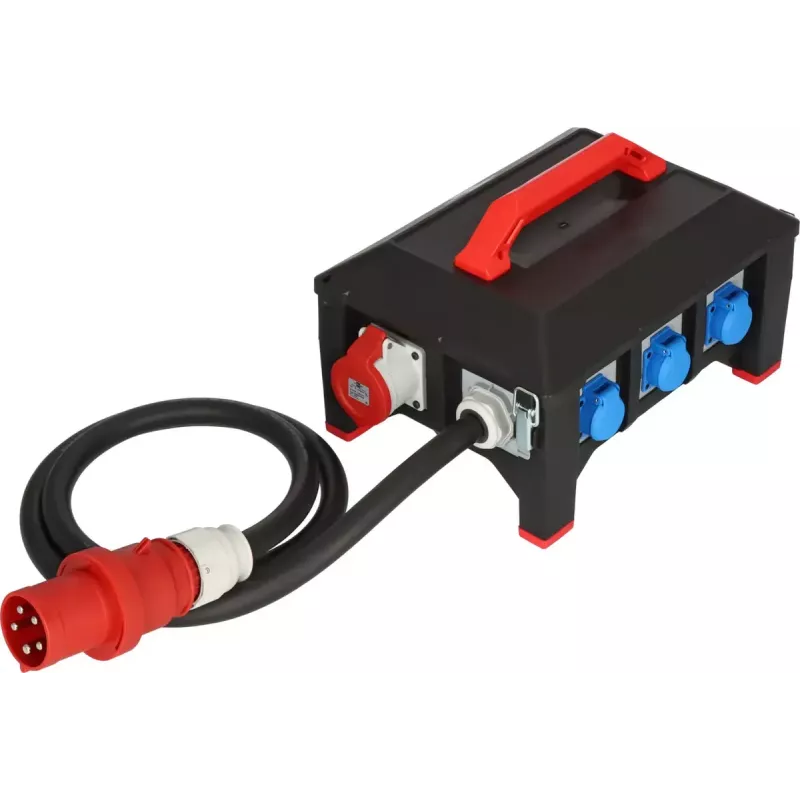

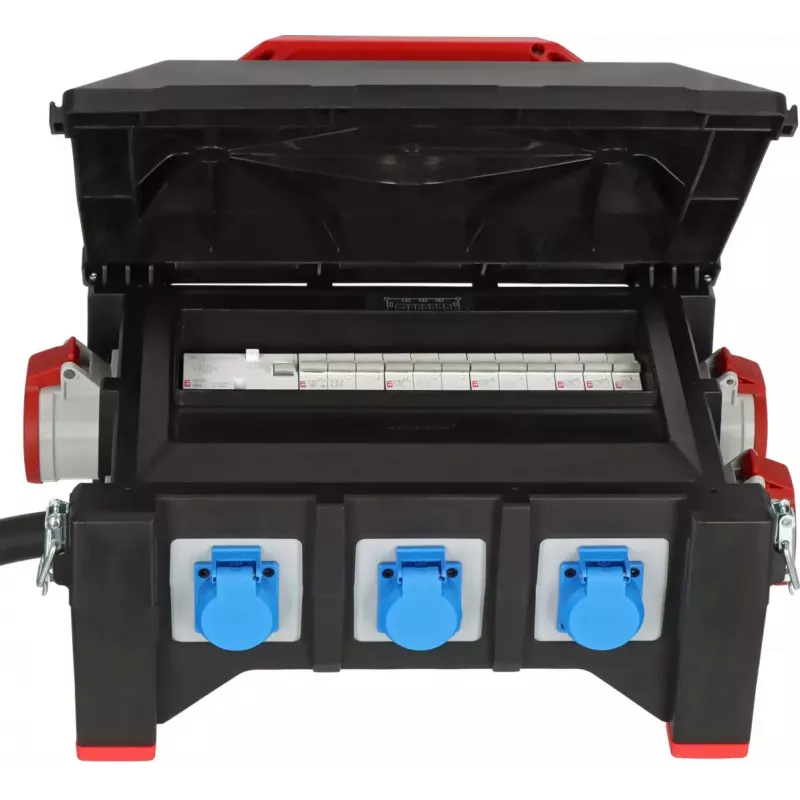

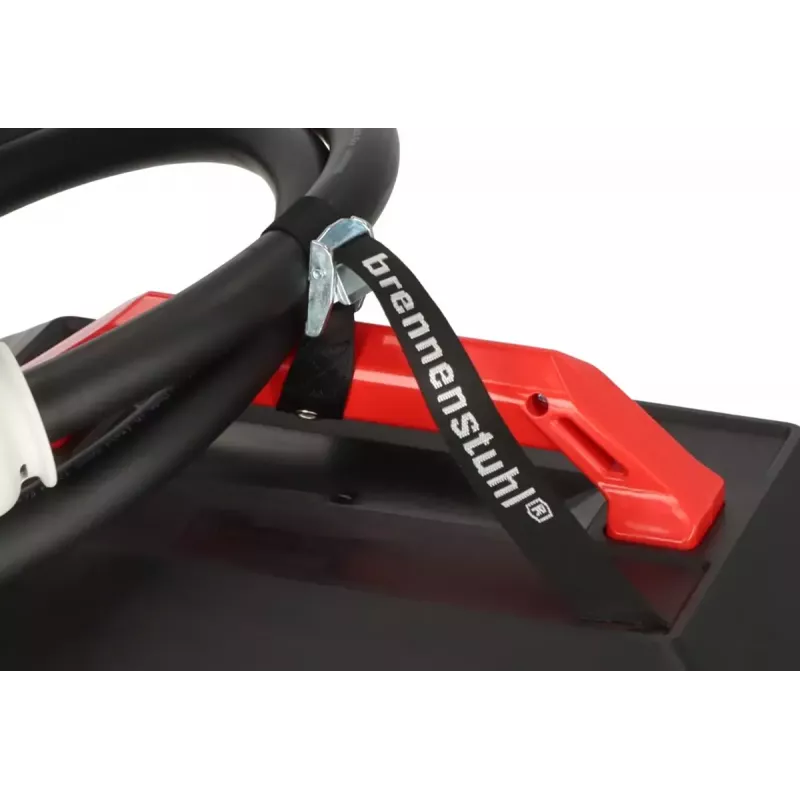

Unidade de distribuição de energia Brennenstuhl BSV 5-63A 9 tomadas AC 400V 63A

The Brennenstuhl BSV 5-63A 9 AC outlets 400V 63A is a robust power distribution unit designed for versatile use in professional and industrial environments. Constructed from durable plastic and rubber materials with an IP44 protection rating, the unit provides reliable distribution of three-phase power at a nominal voltage of 400V and a maximum current of 63A. Supplied with a 2 m H07RN-F 5G16.0 cable and an integrated input fuse, the unit is intended to offer secure and stable power supply for temporary installations, workshops, and site applications.

Advantages

The unit combines high current capacity with compact and portable design, enabling efficient power distribution where three-phase supply is required. The IP44-rated enclosure protects against splashing water and solid objects, while the rubberized housing improves impact resistance and grip. Inclusion of a heavy-duty H07RN-F cable and built-in input fuse enhances electrical safety and simplifies connection to site power sources.

Suitable for

• Construction sites and temporary installations
• Industrial workshops and machine tools
• Event power distribution and stage equipment
• Maintenance, testing and site service tasks

Key specifications

• Nominal voltage: 400 V (three-phase)
• Maximum current capacity: 63 A
• Number of AC outlets: 9
• Cable: 2 m H07RN-F 5G16.0 (flexible rubber cable)
• Housing materials: durable plastic and rubberized elements
• Protection rating: IP44 (splash and limited dust protection)
• Integrated input fuse for overload protection

How to use

Connect the power distribution unit to a compatible three-phase supply using the supplied H07RN-F cable ensuring the supply is switched off before connection. Mount or place the unit on a stable, dry surface where it is protected from direct water exposure beyond the IP44 rating. After connection, verify correct phase and earth continuity and switch on the supply. Distribute power to connected devices through the unit's nine AC outlets, observing the total load does not exceed the maximum current rating. For safety, always follow site electrical regulations and use appropriate personal protective equipment when making connections.

Recommendations

Use the unit within its rated voltage and current limits, avoid permanent outdoor exposure to severe weather, and perform regular visual inspections of the cable, plugs and housing for damage. Ensure connections are performed by qualified personnel and protect the unit from overload with appropriate upstream protection if additional circuit protection is required.
