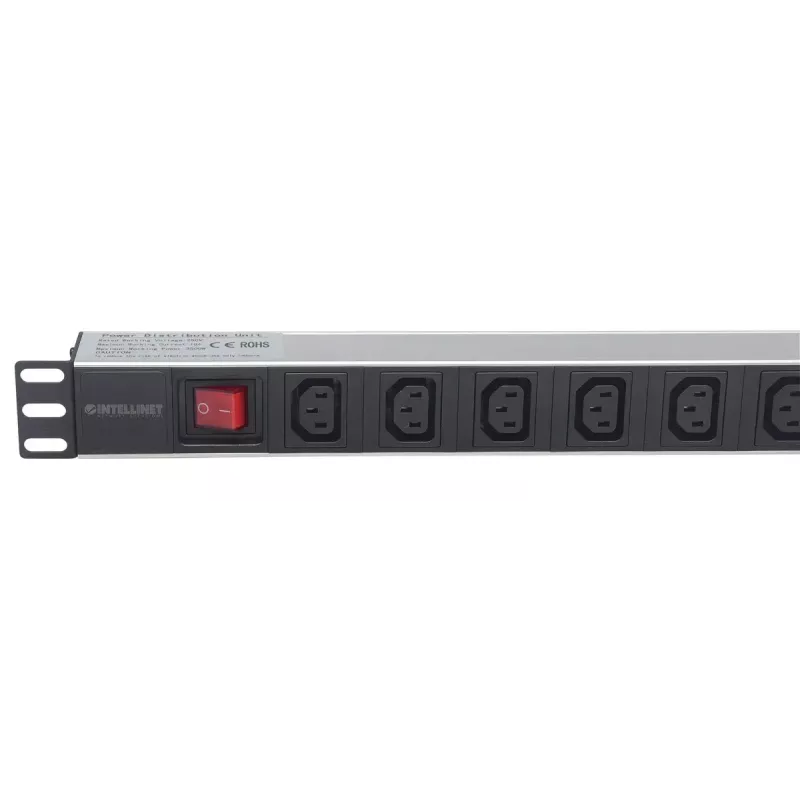

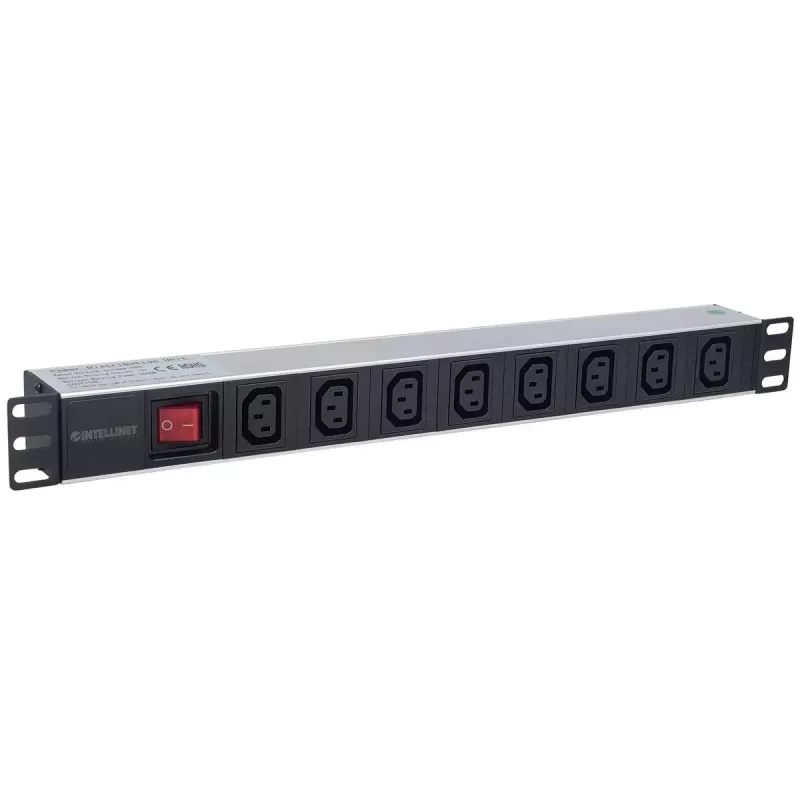

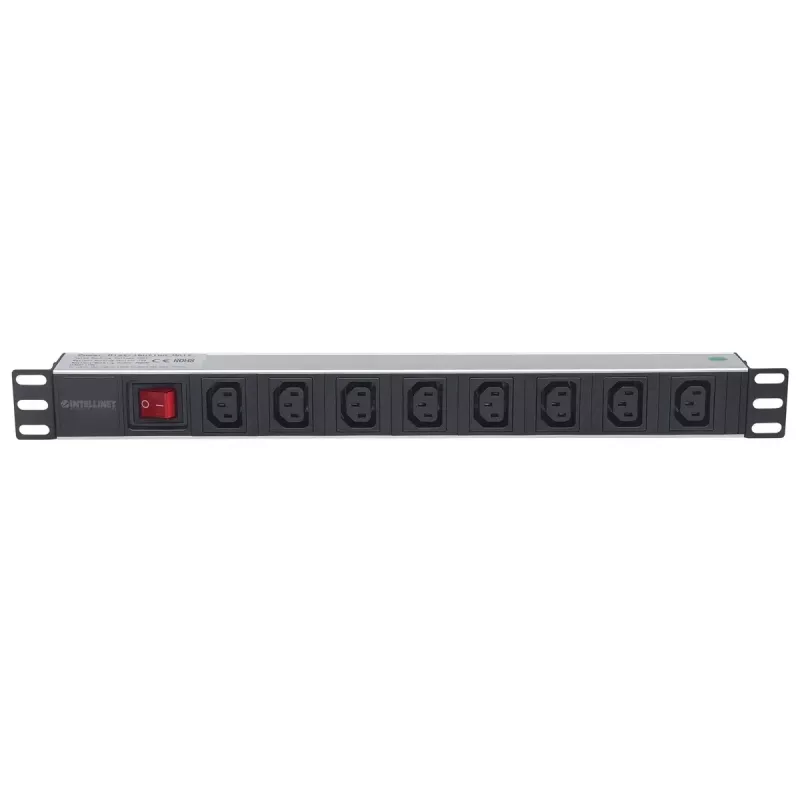

Unidade de distribuição de energia (PDU) Intellinet 19 polegadas 1U para rack 8 tomadas C13 com cabo de alimentação removível e entrada C20 traseira

The Intellinet 19" 1U Rackmount Power Distribution Unit (PDU) provides organized power distribution for server racks and IT cabinets. This 1U-high PDU includes eight C13 outlets, a removable power cable that connects to the rear C14 input, and supports an input voltage range of 110–250 V with a maximum current of 16 A. The compact, rackmountable design and two-tone silver and black finish suit standard 19" racks and help manage power for multiple devices.

Advantages

This Intellinet PDU offers a space-saving 1U format with eight C13 outputs to power multiple devices from a single rack unit. The removable cable and rear C14 inlet simplify installation and maintenance. With a wide input voltage range (110–250 V) and a 16 A maximum current rating, it is compatible with common rack equipment and provides reliable power distribution while keeping a low overall weight of 0.9 kg.

Suitable for

• Small to medium server racks
• Network switches and patch panels
• Rack-mounted servers and storage devices
• IT cabinets in offices and branch sites

Key specifications

• Form factor: 19" 1U rackmount

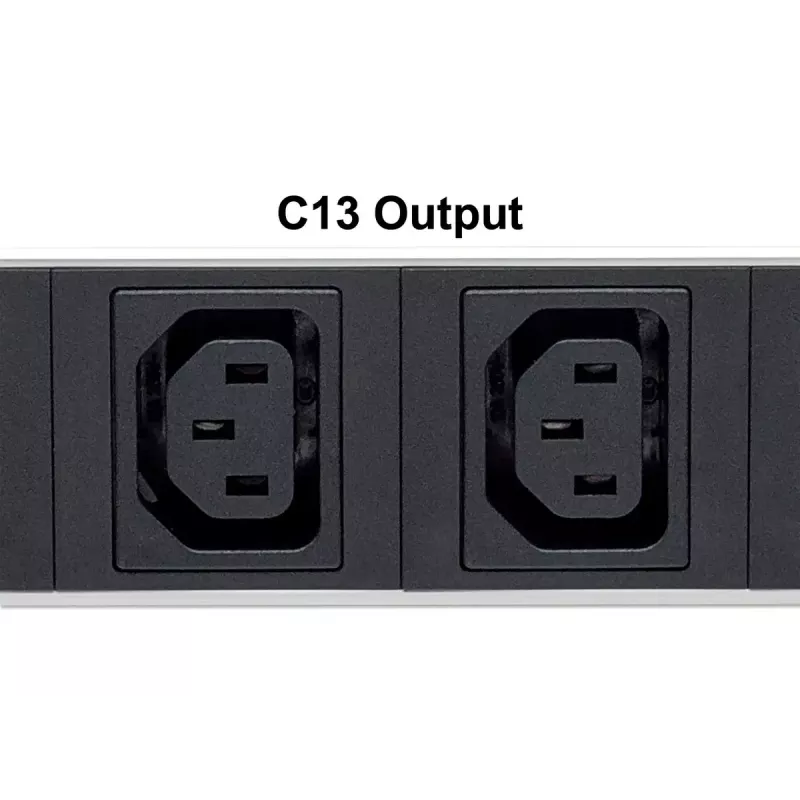

• AC outlets: 8 × C13

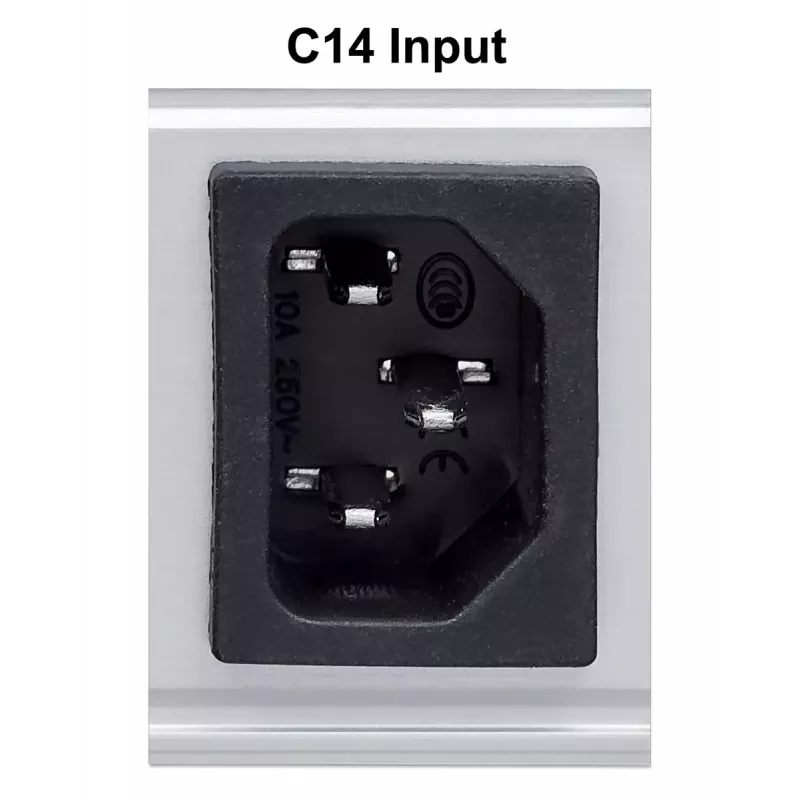

• Input connector: C14 (rear), removable power cable included
• Nominal input voltage: 110–250 V
• Maximum current: 16 A
• Colour: Silver, Black
• Weight: 0.9 kg

How to use

Mount the PDU in a standard 19" rack occupying a single 1U space. Connect the removable power cable to the rear C14 inlet and then to an appropriate mains outlet or UPS. Plug rack equipment into the eight C13 outlets as required, taking care not to exceed the total maximum current of 16 A. Position cables to avoid strain on connectors and to maintain airflow within the rack.

Recommendations

Do not exceed the rated 16 A maximum current; distribute high‑draw devices across multiple PDUs or circuits if necessary. Use a properly rated upstream circuit or UPS and periodically inspect the removable cable and connectors for wear or damage.
