Unidade de distribuição de energia PDU Lanberg PDU-PRO-07E-0200-BK

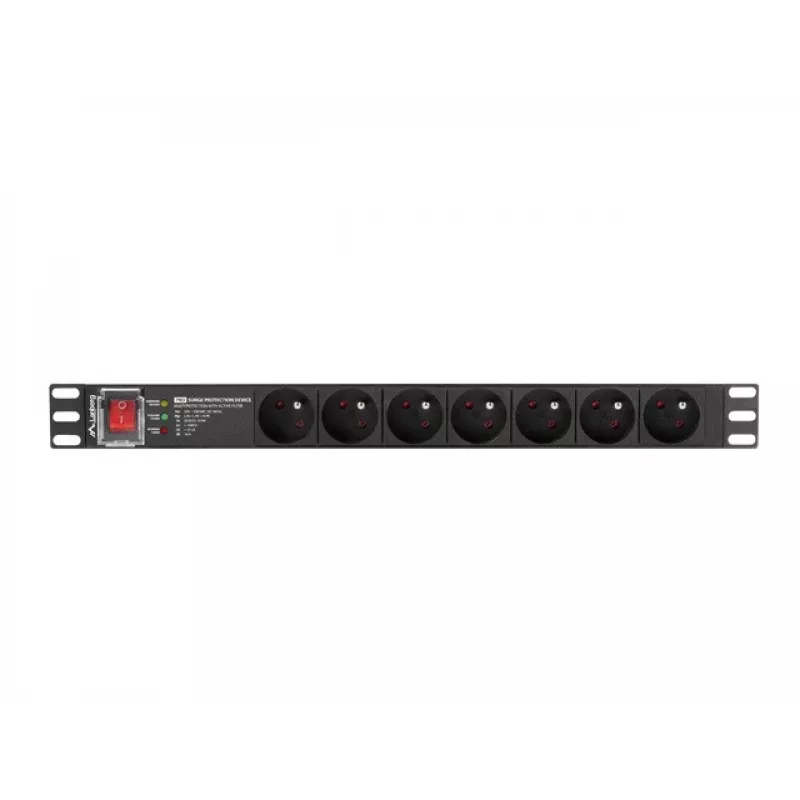

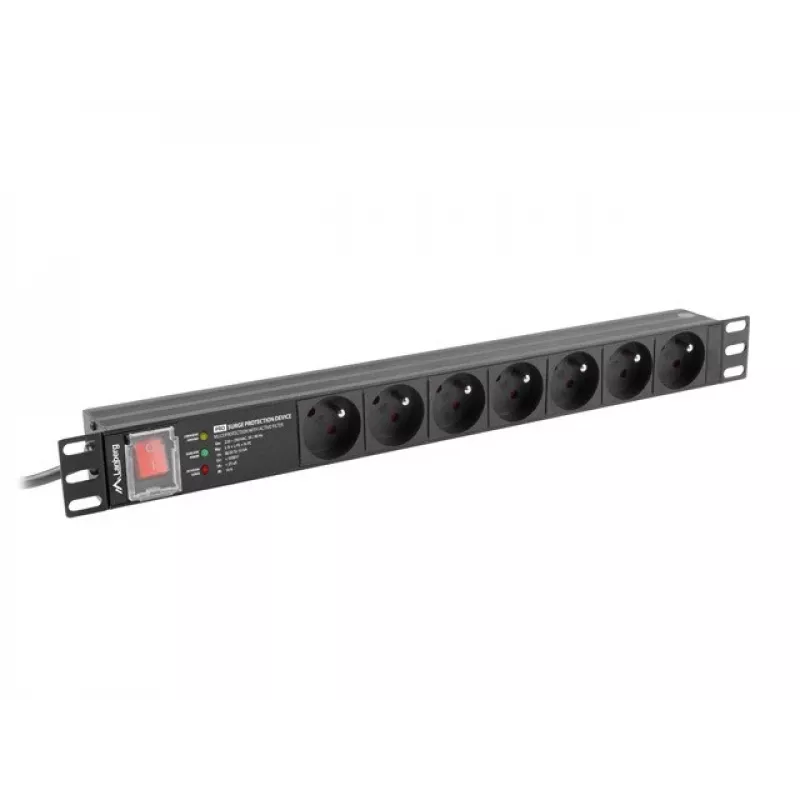

Lanberg Power Distribution Unit PDU-PRO-07E-0200-BK is a 1U switched PDU designed for horizontal front mounting in 19" server cabinets. It delivers reliable power through six Type E AC outlets with a 2 m cable and supports a nominal input voltage of 220–250 V and a maximum current of 16 A. The compact black housing (481.7 mm width, 45 mm depth and height) is intended for professional server-room and data-center environments where continuous power distribution and rack-space efficiency are required.

Advantages

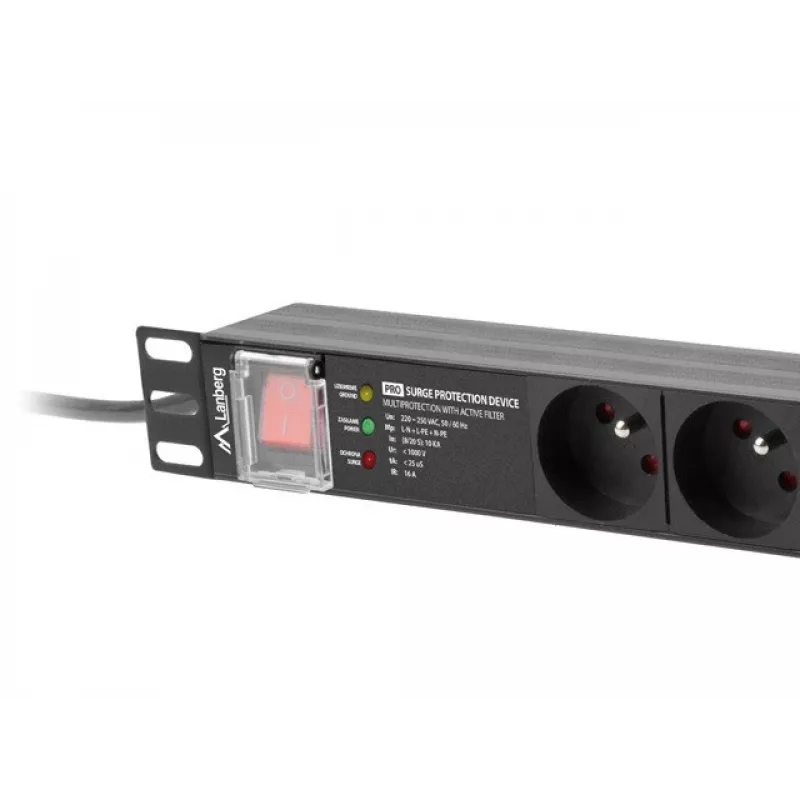

This PDU provides overload protection, user-protecting current circuit diaphragms and an automatic fuse for easy maintenance or replacement. A larger cable cross-section improves current-carrying capacity and helps ensure uninterrupted operation under high load. Its switched design allows controlled power distribution in multi-device setups, reducing downtime and simplifying rack wiring.

Suitable for (tasks / use cases)

Key specifications

How to use

Mount the PDU horizontally on the front rail of a 19" server cabinet occupying one rack unit (1U). Connect the mains input to a suitably rated 220–250 V supply with capacity for up to 16 A. Plug devices into the six Type E outlets as required. Observe the PDU's switched control functions (if applicable) and follow rack power management procedures to sequence device power-on and power-off safely.

Recommendations

Install the PDU using appropriate earthing and follow local electrical regulations. Ensure the supply circuit is rated for at least 16 A and avoid exceeding the combined load rating. Periodically check the automatic fuse and cable condition; replace components only with manufacturer-specified parts.
