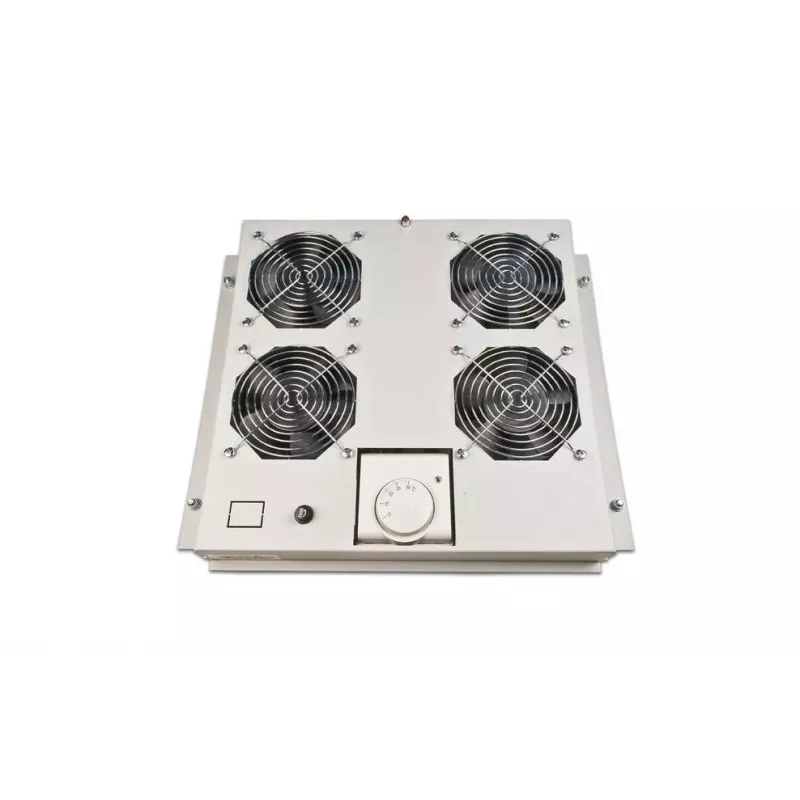

Unidade de ventilação de teto para rack 19 polegadas Wirewin FAN ROOF 4V, 4 ventoinhas, 230V, 960 m³/h, cinzento-claro

The FAN ROOF 4V stands out as a dedicated roof-mounted ventilation solution for 19-inch racks, delivering high airflow with four integrated fans in a single compact unit. Unlike generic cooling accessories, it is engineered specifically for rack environments, ensuring efficient heat extraction from the top of the enclosure.

Highlights

• Four integrated fans provide a total airflow of 960 m³/h
• Designed for roof mounting on standard 19-inch racks
• Operates on 230V AC, 50/60Hz with a 2m power cable and Schuko plug
• Low noise level of 47 dB(A) for office-friendly operation
• Durable sheet steel housing with light grey powder coating (RAL 7035)

In daily use

The FAN ROOF 4V maintains optimal temperatures inside your rack by continuously exhausting warm air. Its four fans work together to prevent hotspots, protecting sensitive equipment from overheating. The unit is easy to install on the roof of compatible racks and connects directly to a standard power outlet. With an operating temperature range of 0°C to +50°C, it suits most server rooms and network closets.

Full specifications

• Product type: Roof fan unit
• Number of fans: 4
• Rack compatibility: 19-inch
• Mounting position: Roof
• Power supply: 230V AC, 50/60Hz
• Total airflow: 960 m³/h
• Noise level: 47 dB(A)
• Power consumption: 80 W
• Colour: RAL 7035 (light grey)
• Material: Sheet steel
• Cable type: 2m power cable with Schuko plug (CEE 7/7)
• Protection class: IP20
• Operating temperature range: 0°C to +50°C
• Housing finish: Powder-coated

Final note

For racks that require active top ventilation, the FAN ROOF 4V offers a reliable, high-capacity cooling solution with straightforward installation and robust construction.
