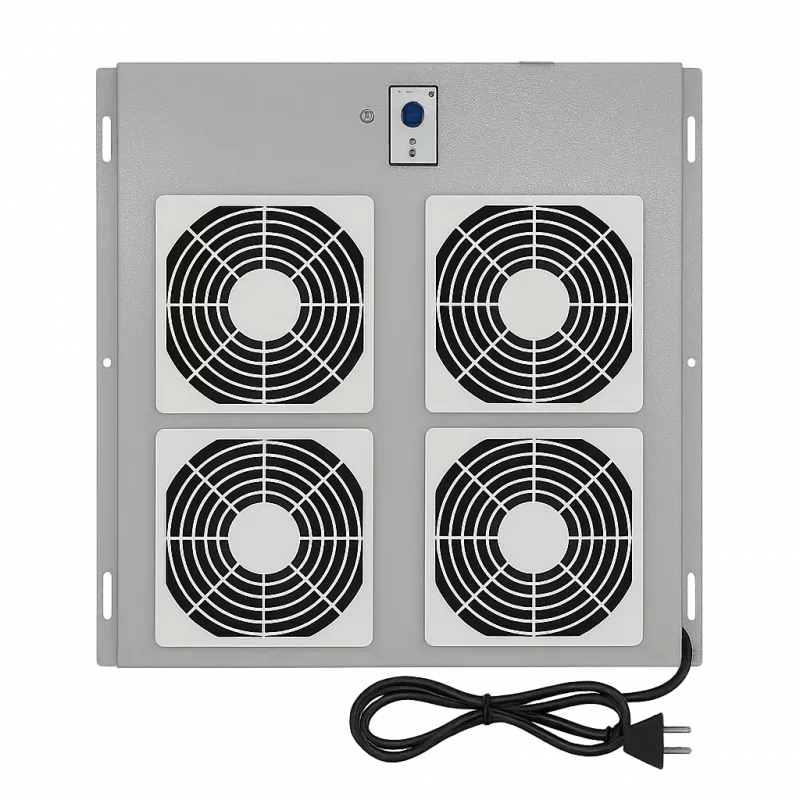

Unidade de ventilação DSIT DS-FT-OUT com 4 ventoinhas e termostato para caixa exterior de armários de rede

Outdoor network cabinets face extreme temperature swings that can push sensitive equipment beyond safe operating limits. The DSIT DS-FT-OUT ventilation unit tackles this by integrating four axial fans and a precise thermostat to keep the internal climate stable. Built for outdoor enclosures, it actively expels hot air and draws in cooler ambient air, preventing overheating that leads to premature hardware failure and network downtime.

Who is it for

Network administrators, system integrators, and facility managers responsible for outdoor IT infrastructure. Ideal for telecom cabinets, industrial control enclosures, and any outdoor rack housing switches, routers, or servers that require reliable thermal management in challenging environments.

Main features

• Four high-performance axial fans deliver a combined airflow of 480 m³/h for rapid heat dissipation.
• Integrated adjustable thermostat with a range of 0°C to +60°C, enabling automatic fan activation based on real-time temperature.
• Robust IP54 protection rating guards against dust ingress and water splashes, ensuring dependable operation outdoors.
• Durable sheet steel construction with a powder-coated finish in RAL 7035 light grey, blending seamlessly with standard enclosures.
• Versatile mounting options for cabinet top or side installation, with a 2-meter power cable and Schuko plug for immediate connection.

Specifications

• Product type: Ventilation Unit
• Application: Outdoor Network Cabinets
• Number of fans: 4
• Fan type: Axial
• Integrated thermostat: Yes
• Thermostat adjustment range: 0°C to +60°C
• Total airflow: 480 m³/h
• Noise level: 47 dB(A)
• IP protection rating: IP54
• Power supply: 230V AC, 50/60Hz
• Material: Sheet Steel
• Surface finish: Powder-coated
• Color: RAL 7035 (Light Grey)
• Mounting type: Cabinet Top/Side Mount
• Power cable length: 2 m
• Power plug type: Schuko (Type F)

Tips

To maximize cooling efficiency, position the ventilation unit at the top of the cabinet to expel hot air naturally. Ensure the thermostat is set according to the equipment's maximum operating temperature to prevent unnecessary fan cycling. Regularly inspect and clean the fan blades and grilles to maintain optimal airflow and extend the unit's lifespan.
