Unidade de ventilador de teto Digitus DN-19 FAN-2-WM-T

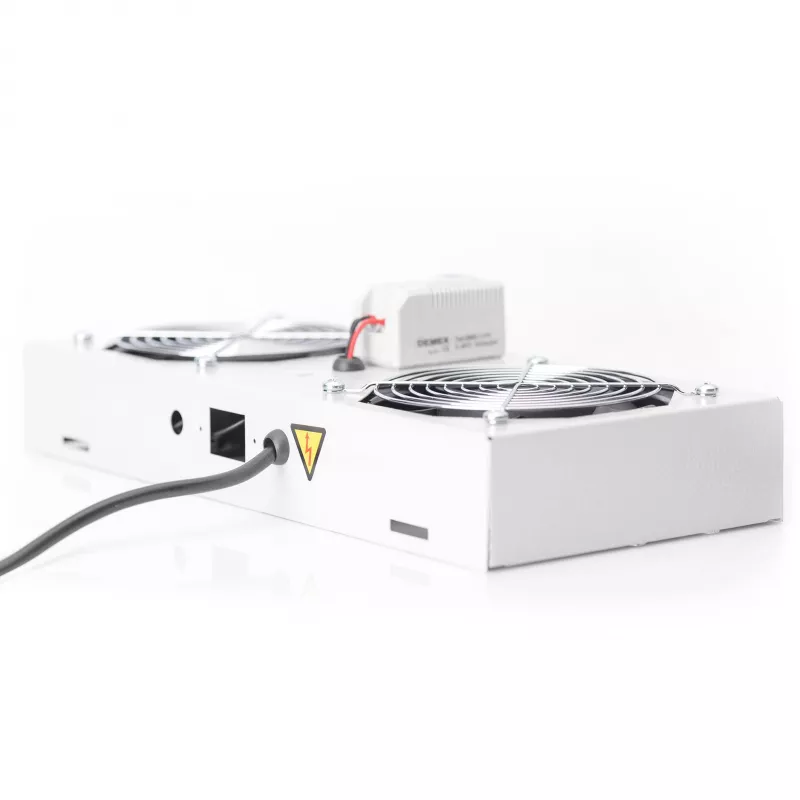

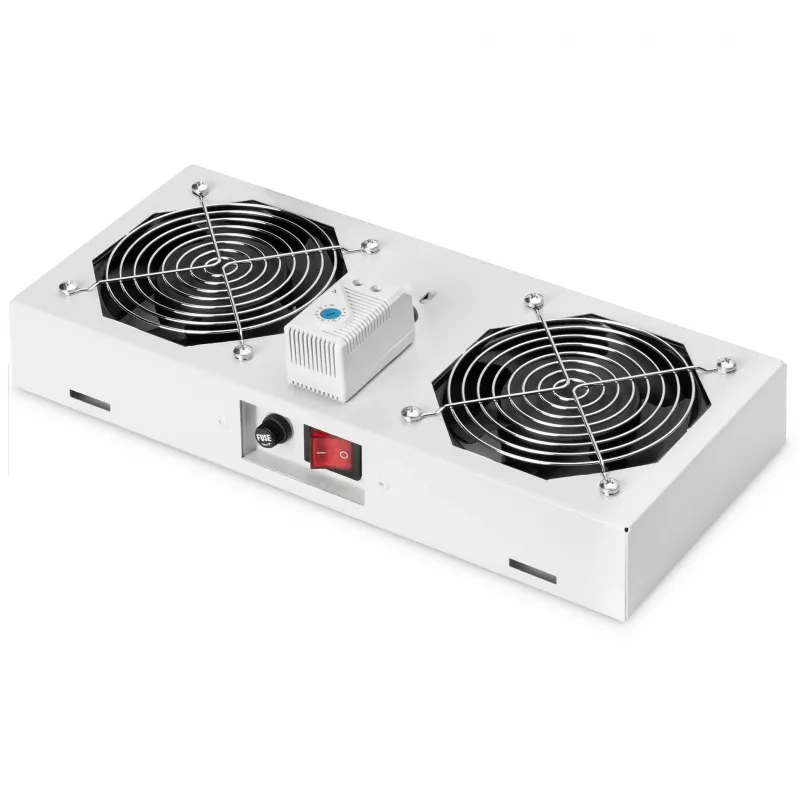

The DIGITUS 483 mm (19") Roof Ventilation Unit DN-19 FAN-2-WM-T is designed for wall-mounted 19" cabinets and unmounted network and server cabinets. Constructed to German standards from sturdy steel sheet, the unit is compact and lightweight, measuring 438 x 400 x 40 mm and weighing 2 kg. It is available in grey (RAL 7035) and black (RAL 9005) and comes with two fans delivering a combined airflow of 276 m³/h to help maintain appropriate operating temperatures in IT racks.

Advantages

The roof-mounted ventilation unit provides efficient extraction and airflow for wall mounting cabinets and server racks. Its steel-sheet housing offers mechanical strength and durability while the compact dimensions and low weight simplify handling and installation. An integrated switch and adjustable thermostat allow basic control over fan operation and temperature response. Available in standard RAL colours for visual compatibility with common cabinet ranges.

Suitable for

• 483 mm (19") wall-mounted network cabinets (Unique series)
• Unmounted network and server cabinets (-EC)
• Small server rooms, network closets and telecommunication enclosures

Key specifications

• Brand: DIGITUS
• Model: DN-19 FAN-2-WM-T
• Fit: 483 mm (19") wall mounting and unmounted cabinets
• Airflow: 276 m³/h (two fans)
• Dimensions (W×D×H): 438 × 400 × 40 mm
• Weight: 2 kg
• Material: Steel sheet housing
• Colours: Grey (RAL 7035) or Black (RAL 9005)

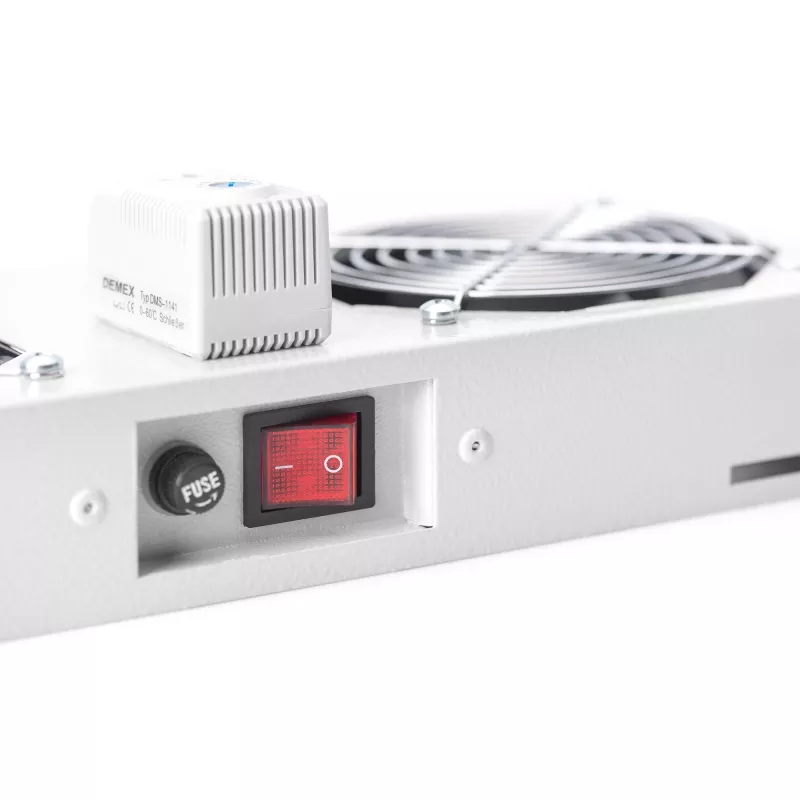

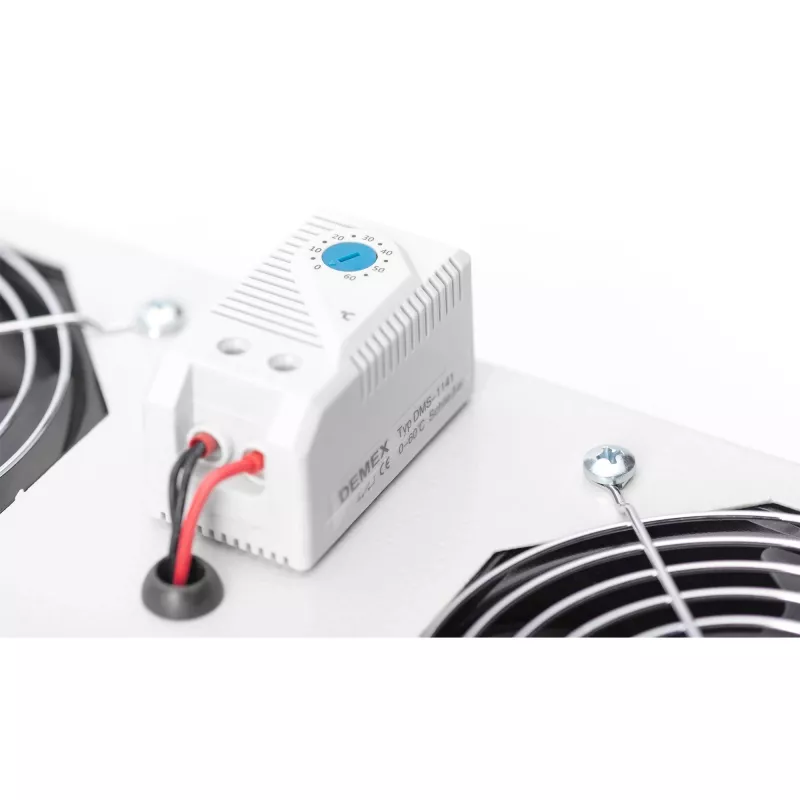

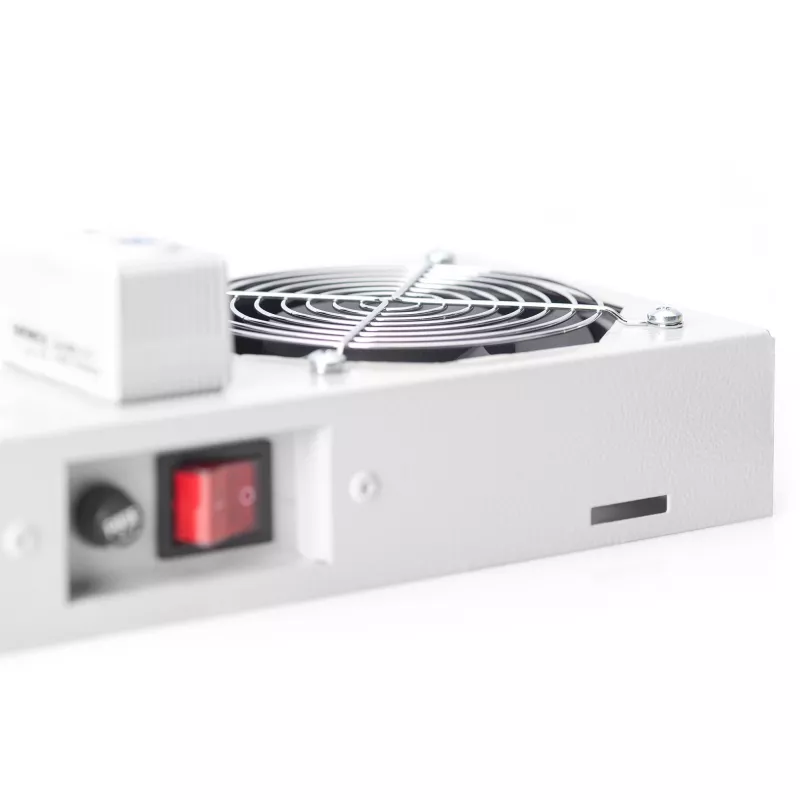

• Controls: On/off switch and adjustable thermostat
• MPN: DN-19 FAN-2-WM-T
• EAN: 4016032158752

How to use

Install the ventilation unit into the cabinet's roof module according to the cabinet manufacturer's instructions. Secure the unit in place, connect the power supply, and set the thermostat to the desired temperature. Use the switch to enable or disable the fans as required. Ensure that airflow paths inside the cabinet are not obstructed and that intake and exhaust openings have sufficient clearance.

Recommendations

For reliable cooling, position the unit so that hot air is effectively exhausted from the top of the cabinet; check and clean fan vents regularly and verify thermostat settings to match the equipment heat load.
