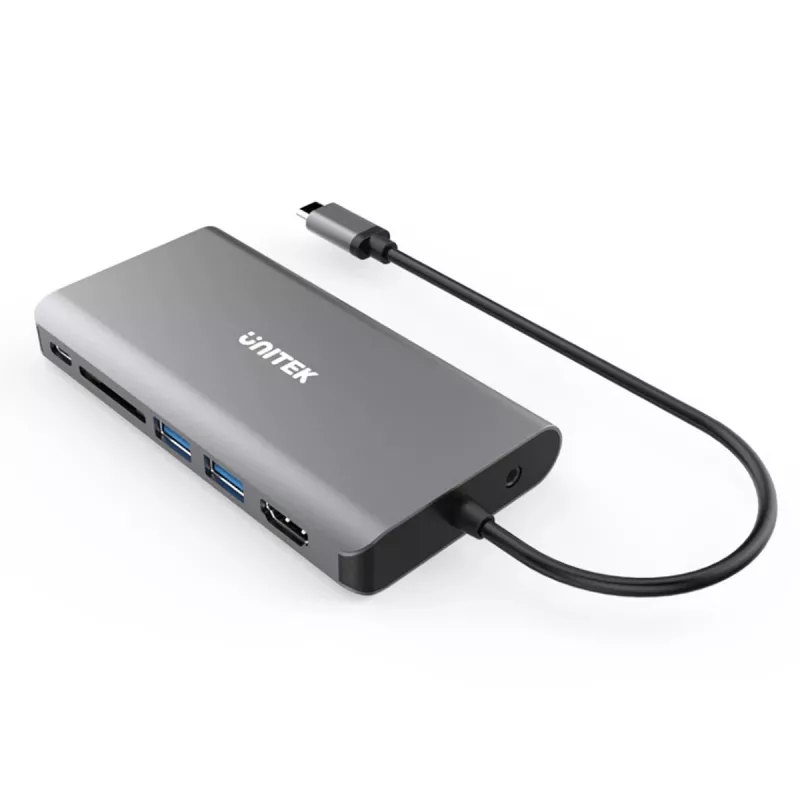

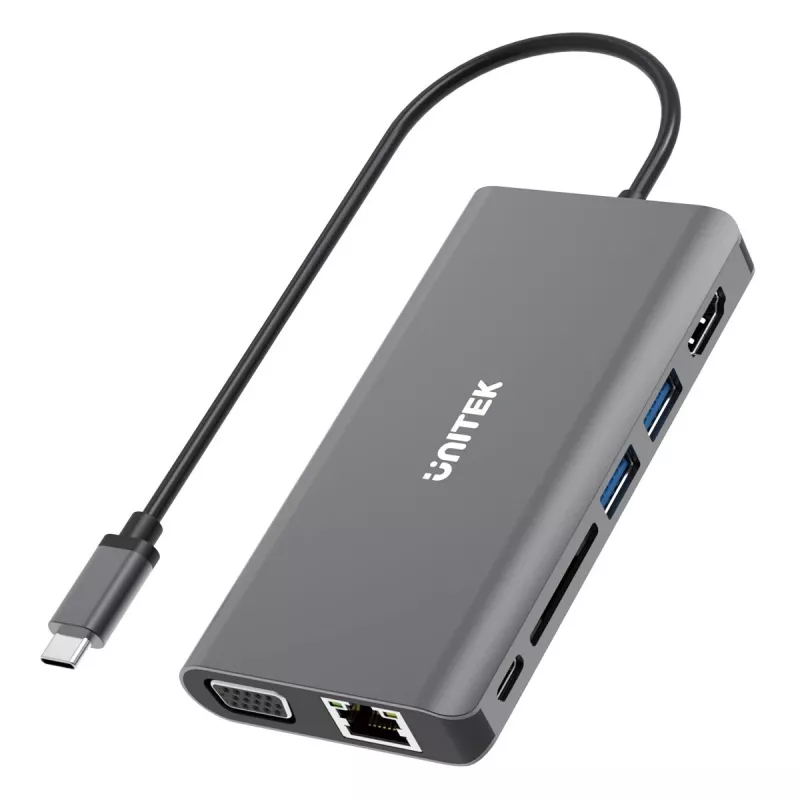

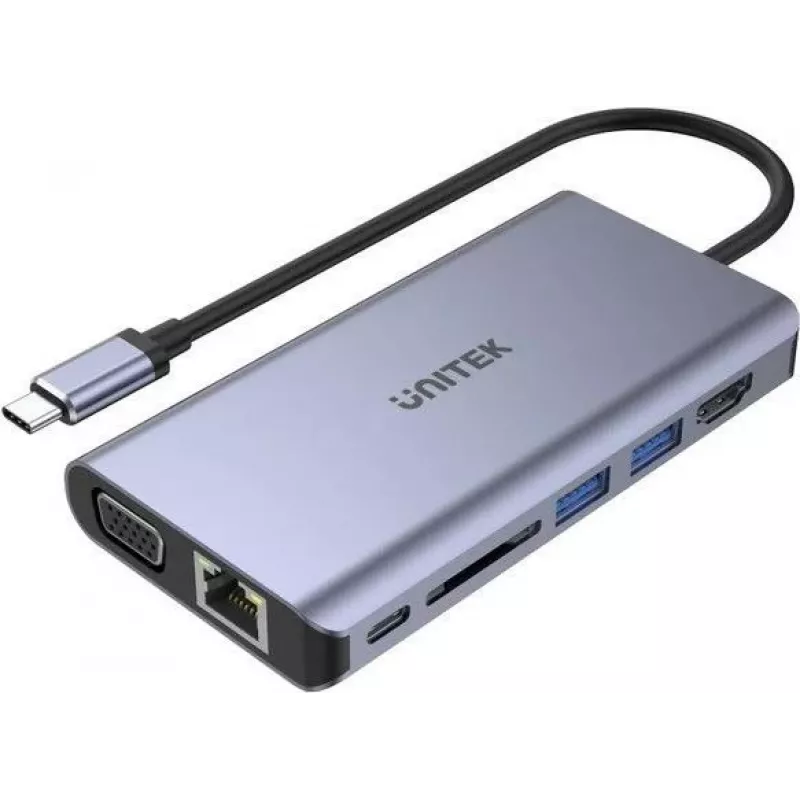

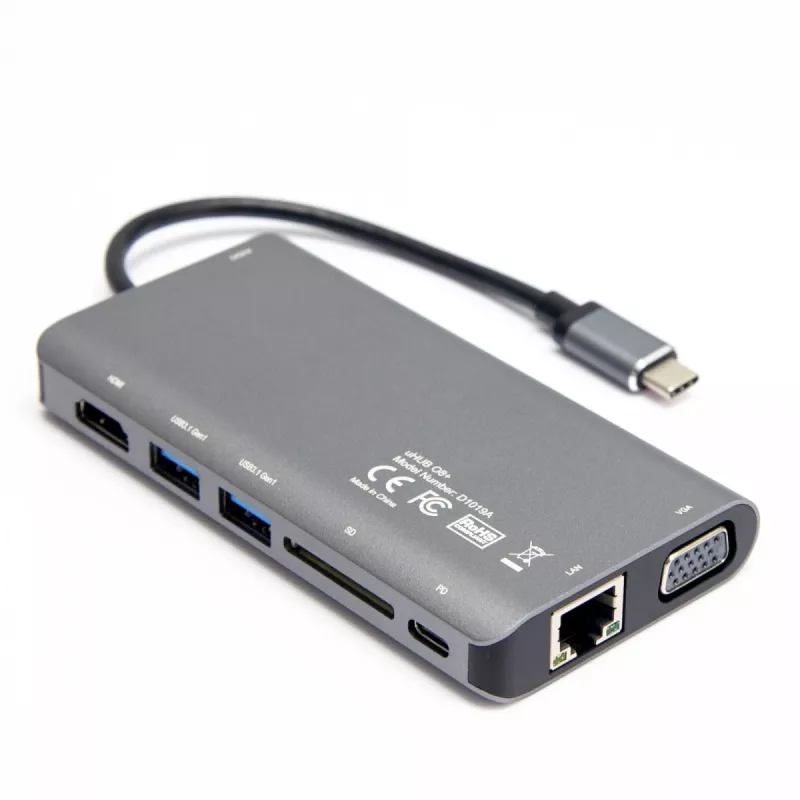

UNITEK uHUB O8+ Hub USB 3.2 Gen 1 Type-C com fio, Cinzento, 100W Power Delivery

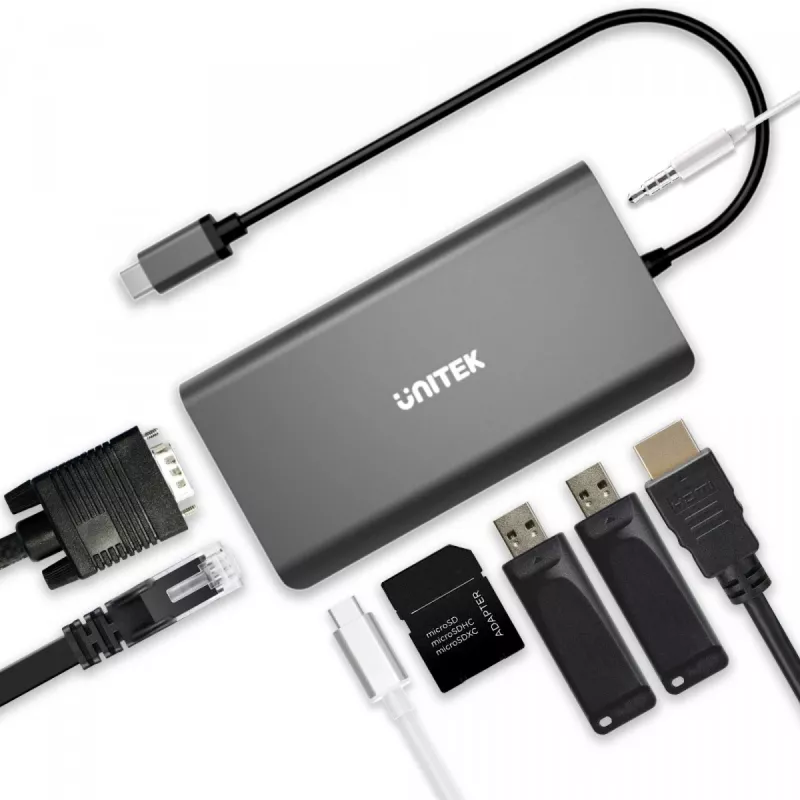

The UNITEK uHUB O8+ is an 8-in-1 USB-C hub in a grey aluminium housing that expands a laptop or USB-C device with Power Delivery 100W charging, dual video outputs (4K HDMI and Full HD VGA), Gigabit Ethernet, SD/MicroSD card reader, two SuperSpeed USB-A ports and a 3.5 mm audio jack. The hub uses a USB 3.2 Gen 1 (Type-C) host interface and supports simultaneous charging and data transfer up to 5 Gbps.

Advantages

The hub supports USB Power Delivery Revision 3.0 (up to 100W, 20V/5A) while providing USB 3.0 SuperSpeed data transfer (5 Gbps). Dual video outputs allow HDMI at up to 4K@30Hz and VGA at Full HD 1080p; when both HDMI and VGA are used simultaneously the maximum output for each is 1080p@60Hz. The integrated Gigabit Ethernet port supports 10/100/1000 Mbps and network features such as IPv4/IPv6 checksum offload and Wake-on-LAN. Compact aluminium construction offers a lightweight, durable accessory for mobile setups.

Suitable for

• Connecting a laptop or tablet to wired Ethernet for stable internet access
• Extending displays to an external monitor or projector via HDMI or VGA
• Charging a USB-C laptop or device while using peripherals (up to 100W PD)
• Transferring data from SD and MicroSD cards or USB-A storage devices

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C), data up to 5 Gbps
• Power Delivery: USB PD Revision 3.0, up to 100W (20V/5A)
• Video outputs: HDMI 1.4 (up to 4K@30Hz, HDCP 1.4) and VGA (up to 1080p)
• USB ports: 2 × USB-A SuperSpeed (5 Gbps), backward compatible with USB2.0/1.1
• Card reader: SD / MicroSD (up to 48 Mbps)
• Audio: 3.5 mm jack, supports 48 kHz, 16-bit sampling
• Ethernet: Gigabit RJ45, 10/100/1000 Mbps, IEEE 802.3, IPv4/IPv6 COE, Wake-on-LAN
• Colour: Grey; Material: Aluminium
• Plug-and-play: no driver required

How to use

Connect the hub's USB-C plug to your laptop or compatible device USB-C port. If you need to charge the host device, connect a USB-C PD charger to the hub's USB-C power input and ensure the charger supports up to 100W. Attach external displays to the HDMI or VGA ports; note that simultaneous use of both outputs limits each to 1080p@60Hz. Insert SD or MicroSD cards into the card reader and plug USB drives into the USB-A ports for data access. Connect a network cable to the RJ45 port for wired internet connection and a headset or speakers to the 3.5 mm jack for audio output.

Recommendations

For stable high-resolution video output, use a Quality HDMI cable and a display that supports the stated resolutions. When using PD charging, verify your power adapter supports the required 20V/5A output. Avoid excessive bending of the hub cable and keep the aluminium body ventilated during extended use.
