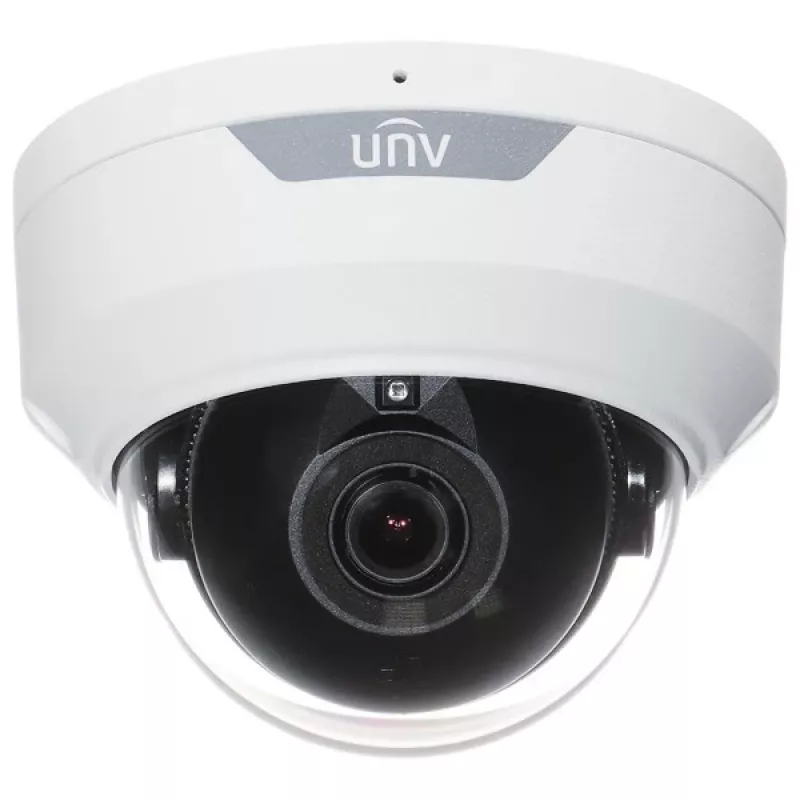

UNIVIEW IPC325LB-AF28-A2 Câmara IP dome IR 5MP, 2,8mm, IK10, IP67

The UNIVIEW IPC325LB-AF28-A2 is a high-performance 5MP IR dome IP camera designed for demanding indoor and outdoor surveillance. With a vandal-resistant IK10 metal housing and IP67 weatherproof rating, it delivers reliable 24/7 security in harsh environments. The 2.8mm fixed lens provides a wide 105.7° horizontal field of view, while advanced IR LEDs ensure clear night vision up to 30 meters.

Advantages

Exceptional 5MP resolution (2880x1620) at 30fps delivers crisp, detailed images. Digital WDR (DWDR) handles challenging backlight conditions. Smart analytics including motion detection, line crossing, and intrusion detection enhance security efficiency. The camera supports Ultra 265, H.265, and H.264 compression to save bandwidth and storage.

Suitable for

• Retail stores, offices, and warehouses
• Schools, hospitals, and public facilities
• Outdoor perimeters and parking lots
• Any location requiring vandal-resistant surveillance

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 5MP (2880x1620) @ 30fps
• Lens: 2.8mm fixed, F2.0
• Angle of View: Horizontal 105.7°
• IR Range: Up to 30m (98ft)
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Min Illumination: Color 0.003 Lux, 0 Lux with IR
• WDR: Digital WDR (DWDR)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Power: 12V DC, PoE (802.3af)
• Max Power: 5.0W
• Local Storage: Micro SD slot up to 256GB
• Network: 1x RJ45 10/100Mbps
• Smart Features: Motion detection, tampering alarm, line crossing, intrusion
• Operating Temperature: -30°C to 60°C
• Material: Metal base, plastic dome

Recommendations

For optimal performance, use a PoE switch or injector (IEEE 802.3af) and a high-quality Micro SD card (Class 10 or UHS-I) for local recording. Ensure the camera is mounted securely to a solid surface to maintain IK10 integrity.
