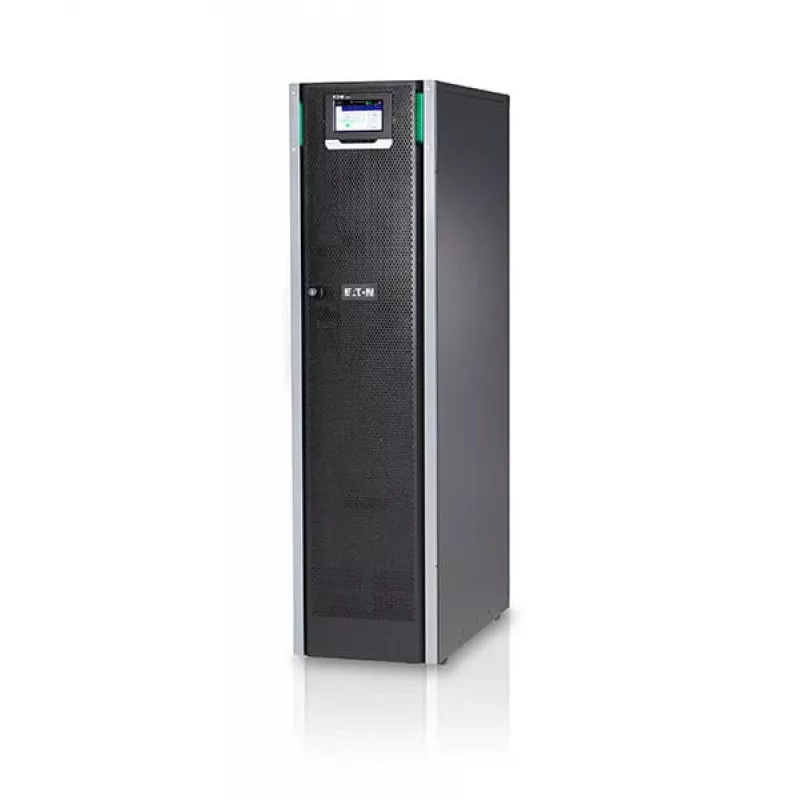

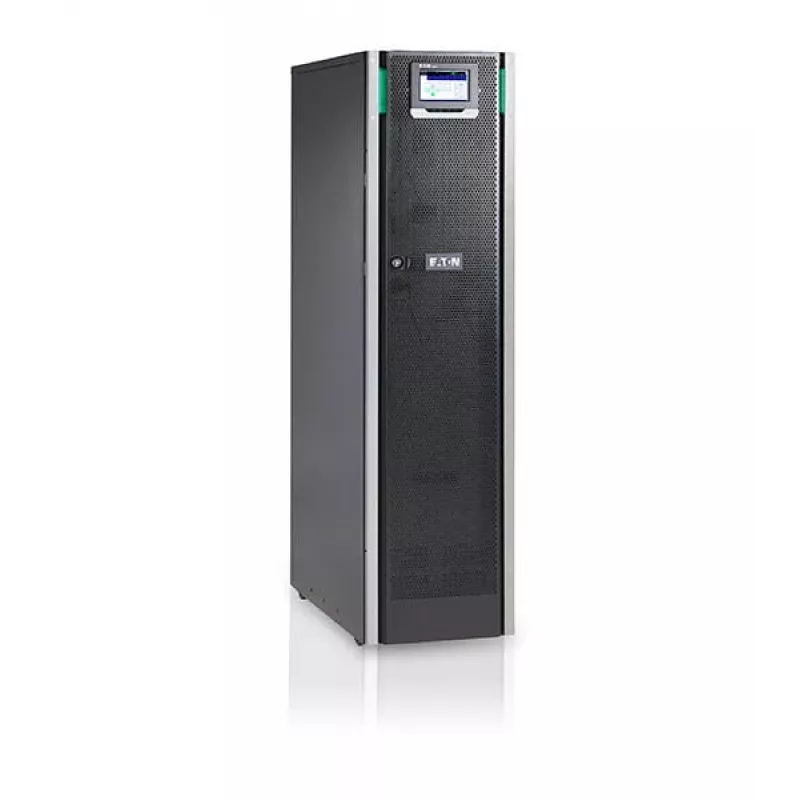

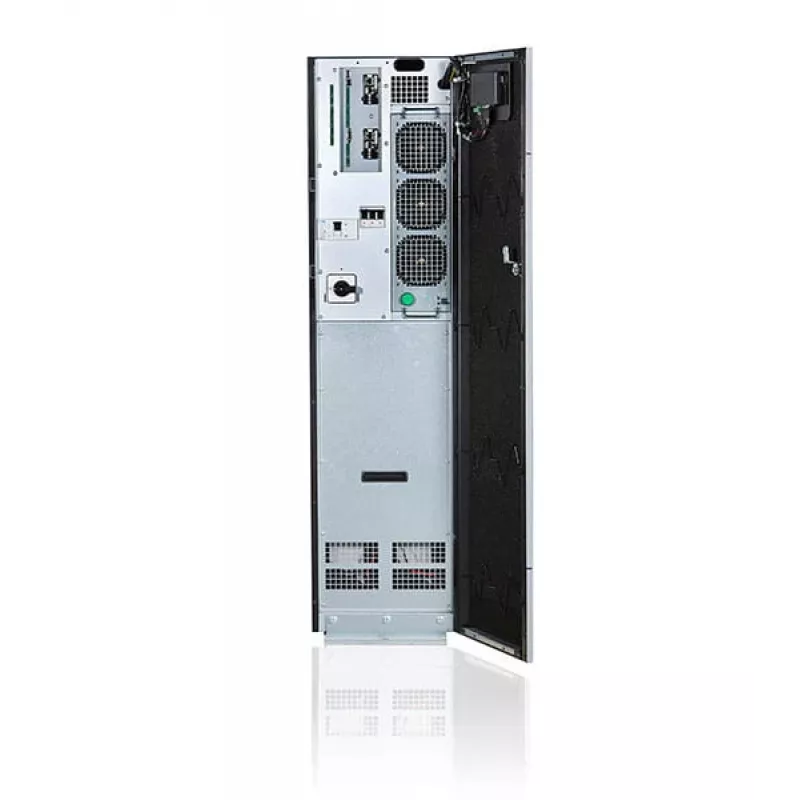

UPS online de dupla conversão Eaton 93PS 30kVA/30kW, 380/400/415V, torre, fator de potência 1,0, modo ESS

Delivering up to 97% efficiency in double conversion mode and 99% in Energy Saver System (ESS) mode, the Eaton 93PS UPS provides exceptional power protection for critical infrastructure. This 30kVA/30kW three-phase UPS operates with a unity power factor, ensuring maximum usable power for your equipment.

Overview

The Eaton 93PS is a high-performance, online double-conversion UPS designed for data centers, industrial applications, and other mission-critical environments. It accepts a wide input voltage range of 380/400/415V AC (3-phase) and delivers clean, regulated output at the same voltages. With an input frequency range of 40-70 Hz, it adapts to unstable power conditions, while the output frequency is auto-sensing at 50/60 Hz. The UPS features a floor-standing tower form factor and supports external VRLA or lithium-ion batteries for flexible runtime configuration.

What stands out

• Unity power factor (1.0) provides full 30kW capacity, maximizing energy utilization.
• Scalable architecture allows parallel operation for capacity expansion or redundancy.
• Advanced communication options: USB, RS-232, network slot, and relay contacts for seamless integration.
• Graphical LCD display with LED indicators for intuitive monitoring and control.
• Low input harmonic distortion (<3% THDi) reduces impact on upstream power systems.
• Automatic and manual maintenance bypass ensures continuous uptime during service.
• Compatible with Eaton Intelligent Power Manager (IPM) software for centralized management.

Technical details

• Topology: Online Double Conversion
• Power capacity: 30 kVA / 30 kW
• Input voltage: 380/400/415 V AC (3-phase)
• Output voltage: 380/400/415 V AC (3-phase)
• Input frequency: 40 - 70 Hz
• Output frequency: 50/60 Hz (auto-sensing)
• Efficiency (double conversion): up to 97%
• Efficiency (ESS mode): up to 99%
• Power factor: 1.0 (unity)
• Scalability: Yes, parallelable for capacity and redundancy
• Communication ports: USB, RS-232, network slot (for optional card), relay contacts
• Battery type: External VRLA (Valve Regulated Lead Acid) or Lithium-ion (optional)
• Form factor: Floor-standing Tower
• Harmonic distortion (THDi): <3%
• Display: Graphical LCD with LED indicators
• Management software: Eaton Intelligent Power Manager (IPM)
• Bypass type: Automatic and Manual Maintenance Bypass

Our verdict

The Eaton 93PS 30kVA UPS is a robust, high-efficiency solution for demanding power protection needs. Its unity power factor, scalable design, and advanced management capabilities make it an excellent choice for data centers and industrial applications.
