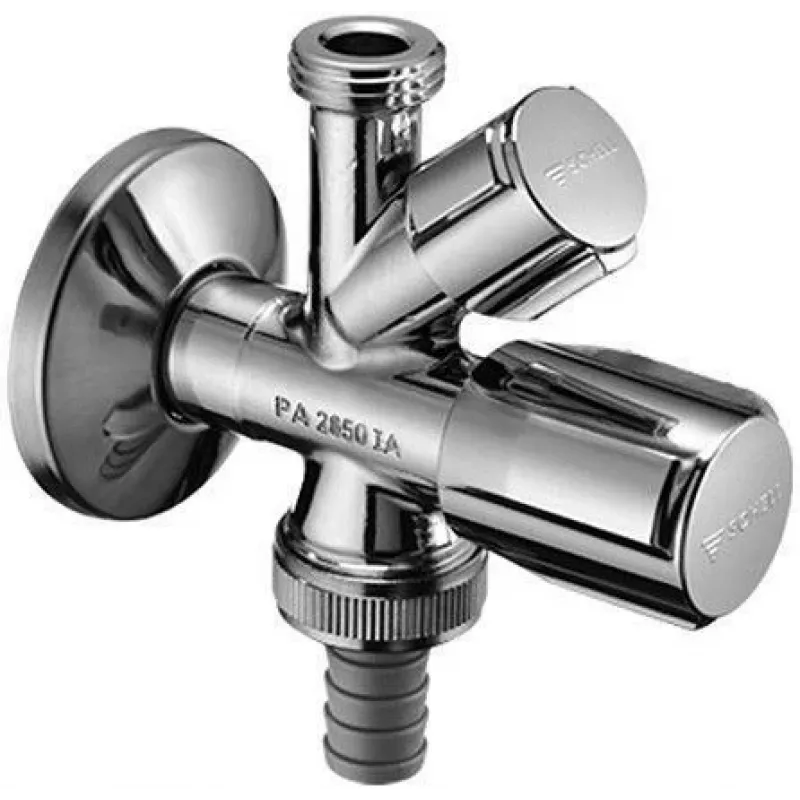

VALVE válvula de esquadria 1/2 polegada x 1/2 polegada x 3/4 polegada rosca macho, latão cromado, dupla saída com válvula de retenção

This angle valve stands apart from standard single-outlet models by offering two independent male-thread connections—1/2" for a primary fixture and 3/4" for an appliance such as a washing machine or dishwasher—plus an integrated backflow preventer on the appliance side. The self-sealing brass spindle with double O-ring ensures drip-free operation even after years of use, while the chrome-plated finish resists corrosion and keeps its shine in humid environments.

Highlights

• Dual outlets: 1/2" male thread for faucet or sanitary fixture, 3/4" male thread for appliance connection
• Integrated backflow preventer in the 3/4" outlet protects drinking water from contamination
• Self-sealing brass spindle with double O-ring seal for maintenance-free, leak-proof performance
• Chrome-plated brass body (DIN EN 50930-6 compliant) for durability and aesthetic appeal
• Sliding rosette with 54 mm diameter covers wall imperfections and provides a clean finish
• Metal handle for precise flow control and long service life
• Certified to DVGW and P-IX standards for safety and reliability

In daily use

Installed on a wall connection, this valve allows simultaneous supply of cold or hot water to two different devices. The 1/2" outlet can serve a sink faucet or toilet cistern, while the 3/4" outlet connects directly to a washing machine or dishwasher hose. The integrated backflow preventer ensures that water from the appliance cannot flow back into the drinking water system, meeting strict plumbing codes. The self-sealing spindle means no packing nut needs periodic tightening, and the double O-ring prevents leaks even under high pressure. The sliding rosette adjusts to cover the wall opening, giving a tidy appearance without additional escutcheons.

Full specifications

• Inlet connection: 1/2" (DN 15) male thread, wall connection
• Outlet 1 connection: 1/2" (DN 15) male thread
• Outlet 2 (appliance) connection: 3/4" (DN 20) male thread
• Material: Brass, compliant with DIN EN 50930-6
• Finish: Chrome-plated
• Valve type: Angle valve (Eckventil)
• Spindle type: Self-sealing brass spindle with double O-ring seal
• Handle material: Metal
• Rosette: Sliding, diameter 54 mm
• Backflow preventer: Integrated in 3/4" appliance connection
• Max. operating pressure: 10 bar
• Max. operating temperature: 90 °C
• Flow class: A (for 1/2" outlet)
• Noise class: I
• Certifications: DVGW, P-IX
• Application: Cold and hot water supply, connection of two devices (e.g., faucet and washing machine)
• Installation: Wall-mounted

Final note

For plumbers and DIY enthusiasts who need a reliable, code-compliant dual-outlet valve with built-in backflow protection, this chrome-plated brass angle valve delivers professional-grade performance and a clean, finished look.
