VCX CF PV32 2P base de fusível 2 polos 32A 1000V DC para fusível 10x38mm, montagem em calha DIN, ligação por parafuso, fotovoltaica

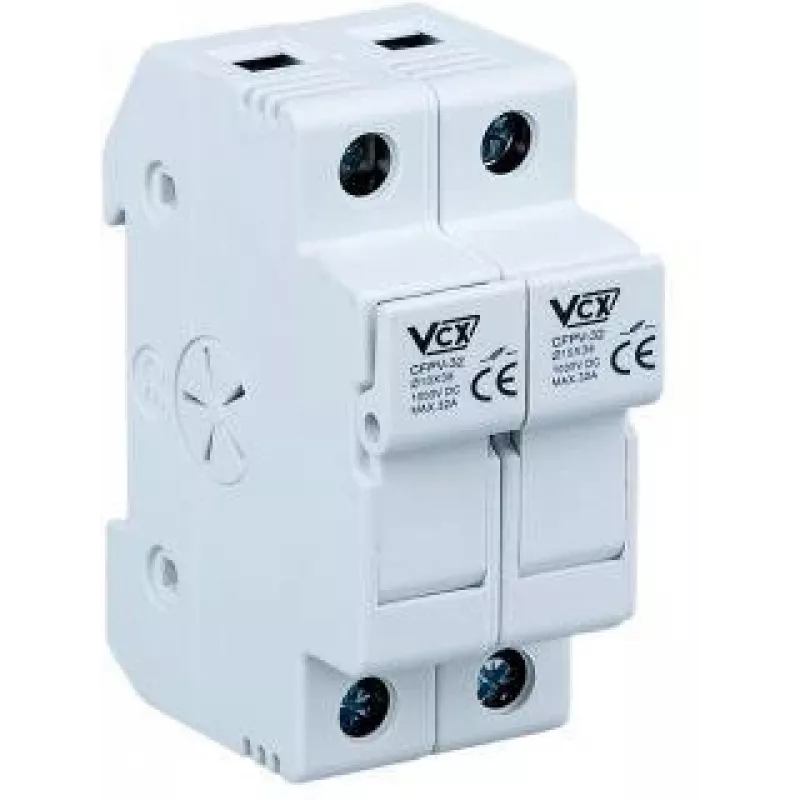

The VCX CF PV32 2P is a high-quality 2-pole fuse base designed for photovoltaic (PV) systems. It accommodates 10x38mm fuses and is rated for 32A at 1000V DC, ensuring reliable overcurrent protection in solar installations. The fuse base features a compact 2-module (36mm) design for DIN rail mounting, with screw terminals accepting wire cross-sections from 1 to 10 mm². Manufactured from self-extinguishing thermoplastic, it offers IP20 protection and operates in temperatures from -25°C to +70°C. Compliant with IEC 60269-6, it delivers a rated short-circuit breaking capacity of 30 kA and impulse withstand voltage of 6 kV.

Advantages

This fuse base provides robust protection for PV arrays, with high DC voltage rating and breaking capacity. Its compact 2-module width saves space on the DIN rail, while the screw terminals ensure secure and easy wiring. The self-extinguishing material enhances safety, and the wide operating temperature range makes it suitable for various environments.

Suitable for

• Photovoltaic (PV) systems requiring DC fuse protection
• Solar combiner boxes and distribution panels
• Industrial and commercial solar installations
• DIN rail mounted fuse holders for 10x38mm fuses

Key specifications

• Number of Poles: 2-Pole
• Rated Current: 32 A
• Rated Voltage: 1000 V DC
• Fuse Size Compatibility: 10x38 mm
• Mounting Type: DIN Rail (35mm)
• Connection Type: Screw Terminals
• Wire Cross Section: 1 - 10 mm²
• Standard Compliance: IEC 60269-6
• Protection Degree: IP20
• Operating Temperature Range: -25°C to +70°C
• Material: Thermoplastic, Self-extinguishing
• Insulation Voltage: 1000 V DC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Short-Circuit Breaking Capacity (Icn): 30 kA
• Application: Photovoltaic (PV) Systems
• Module Width: 2 Modules (36 mm)

Recommendations

For optimal performance, use with 10x38mm PV fuses rated for 1000V DC. Ensure proper torque settings for screw terminals as per manufacturer guidelines. This fuse base is ideal for new solar installations or retrofitting existing systems.
