VCX Pro base de fusível 2 polos 32A 400V AC 10x38mm calha DIN

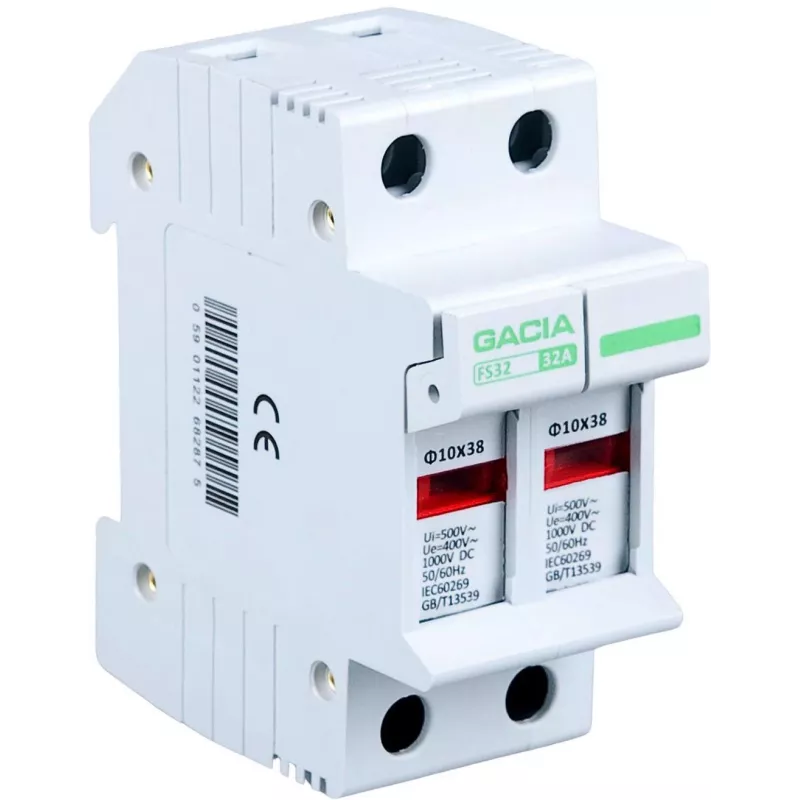

The VCX Pro Fuse Base FS 32 2P PRO is a high-quality, 2-pole fuse base designed for cylindrical fuses of size 10x38 mm. Rated at 32 A and 400 V AC, it is ideal for industrial and commercial electrical installations requiring reliable overcurrent protection. The base mounts easily on DIN rail (TH35) and complies with PN-EN 60947-3 standards.

Advantages

Robust thermoplastic construction ensures durability and long service life. The compact 2-module (36 mm) design saves space on the DIN rail. Clear marking and easy wiring with terminal capacity of 1–16 mm² simplify installation and maintenance.

Suitable for

• Industrial control panels
• Distribution boards
• Machine and equipment protection
• Commercial electrical systems

Key specifications

• Number of Poles: 2
• Fuse Type: Cylindrical (10x38 mm)
• Rated Current: 32 A
• Rated Voltage: 400 V AC
• Mounting: DIN Rail (TH35)
• Terminal Capacity: 1–16 mm²
• Protection Degree: IP20
• Standards: PN-EN 60947-3
• Modular Width: 2 modules (36 mm)
• Material: Thermoplastic
• Operating Temperature: -5°C to +40°C
• Colour: Grey/White

Recommendations

For optimal performance, use with VCX Pro compatible fuse links rated up to 32 A. Ensure proper tightening torque as per installation manual. Suitable for indoor use only.
