VENTILADOR AXIAL VENTS VKOMZ 200

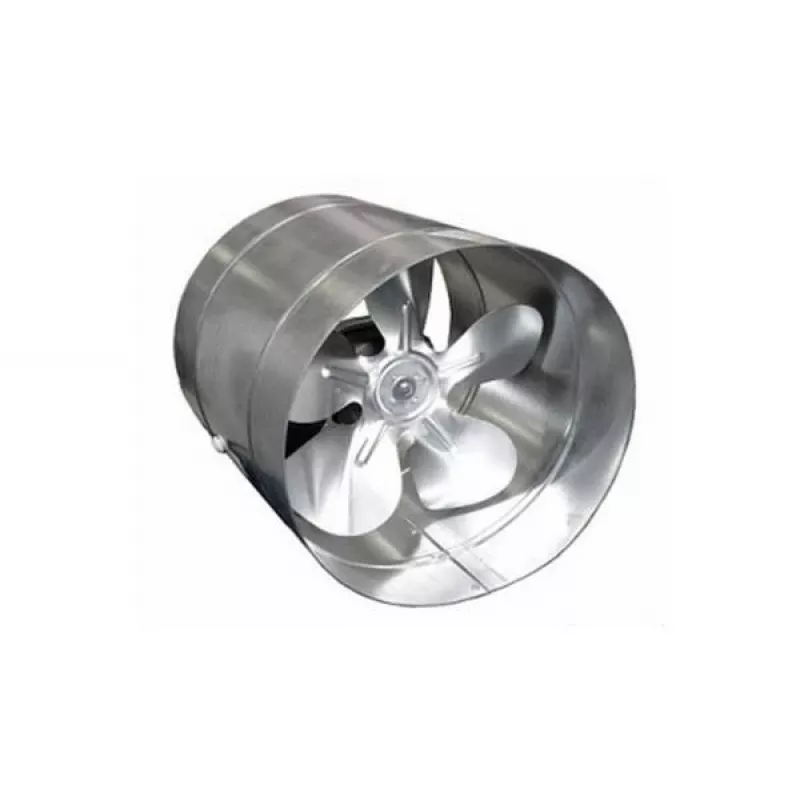

The AXIAL FAN VENTS VKOMZ 200 is a high-performance axial inline duct fan designed for efficient air movement in residential, commercial, and industrial ventilation systems. With a 200 mm duct diameter and robust airflow of 780 m³/h, this fan ensures reliable supply and exhaust ventilation.

Advantages

This fan features a durable ABS plastic casing, IPX4 protection against water splashes, and a single-phase asynchronous motor with thermal overload protection for safe operation. Its ball bearings and wide operating temperature range (-25°C to +40°C) ensure long-lasting performance. The fan can be mounted at any angle and is compatible with external speed controllers for adjustable airflow.

Suitable for

• Supply and exhaust ventilation in residential buildings
• Commercial ventilation systems (offices, shops)
• Industrial ventilation applications
• Inline duct mounting in HVAC systems

Key specifications

• Duct Diameter: 200 mm
• Airflow: 780 m³/h
• Power Consumption: 79 W
• Voltage: 230 V / 50 Hz
• Current: 0.35 A
• Rotational Speed: 2400 RPM
• Noise Level: 45 dB(A) at 3 m
• Protection Rating: IPX4
• Material: ABS plastic
• Motor: Single-phase asynchronous with thermal protection
• Bearings: Ball bearings
• Operating Temperature: -25°C to +40°C

Recommendations

For optimal performance, use with an external thyristor or autotransformer speed controller. Ensure proper duct sealing to maximize airflow efficiency.
