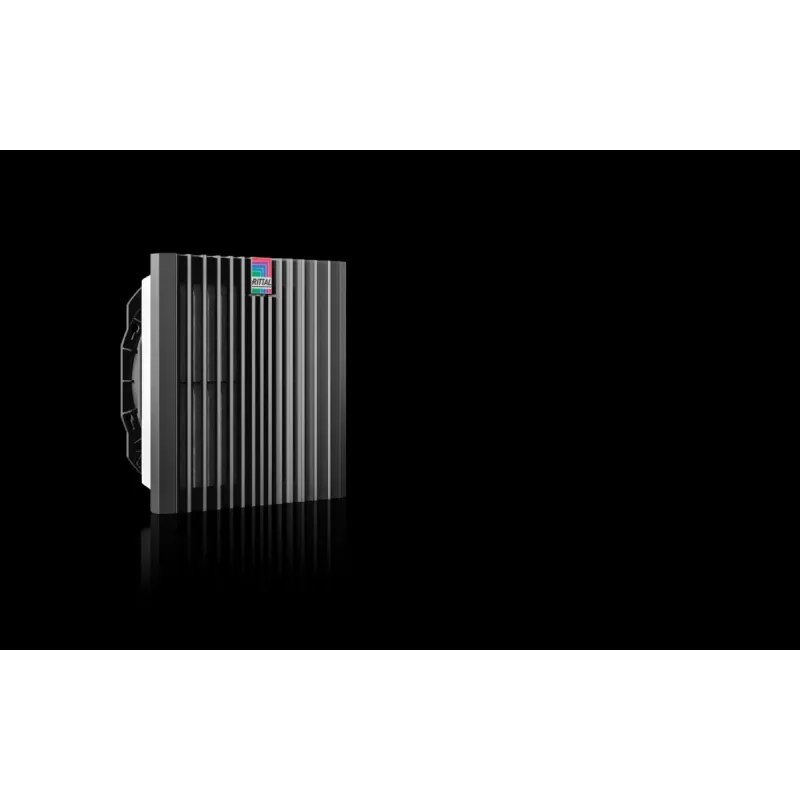

Ventilador com filtro Rittal Blue e+ 218/191 m³/h 115 V RAL 9005 3240718

In control cabinets and enclosures, effective thermal management is essential. The Rittal Blue e+ Filter Fan 218/191 m³/h 115 V RAL 9005 provides reliable air circulation to prevent overheating of sensitive electronics. With a rated operating voltage of 115 V AC (50/60 Hz) and an unimpeded air throughput of 218 m³/h at 50 Hz (191 m³/h at 60 Hz), this fan is suitable for a variety of industrial applications. The housing is made of plastic (ABS) in jet black (RAL 9005), and the unit offers IP54 protection. Connection is via a terminal strip. The fan operates within a temperature range of -10 °C to +55 °C and has a noise level of 65 dB(A) at 50 Hz (67 dB(A) at 60 Hz).

Key specifications

• Product Type: Filter Fan
• Series: Blue e+
• Rated Operating Voltage: 115 V AC
• Rated Operating Frequency: 50/60 Hz
• Air Throughput (unimpeded, 50 Hz): 218 m³/h
• Air Throughput (unimpeded, 60 Hz): 191 m³/h
• Dimensions (W x H x D): 255 x 255 x 150 mm
• Installation Cut-out (W x H): 223 x 223 mm
• Color: RAL 9005 (Jet Black)
• Protection Category: IP54
• Noise Level (50 Hz): 65 dB(A)
• Noise Level (60 Hz): 67 dB(A)
• Operating Temperature Range: -10 °C to +55 °C
• Rated Current (50 Hz): 0.3 A
• Rated Current (60 Hz): 0.3 A
• Power Consumption (50 Hz): 30 W
• Power Consumption (60 Hz): 30 W
• Material: Plastic (ABS)
• Connection Type: Terminal strip
• Approvals: UL/cUL, TÜV, EAC

Why choose it

This filter fan combines efficient airflow with a robust design, ensuring reliable cooling for your enclosure. The IP54 protection guards against dust and water splashes, while the wide operating temperature range makes it suitable for challenging environments.

Ideal use cases

• Cooling of control cabinets in industrial automation
• Ventilation for electrical enclosures in manufacturing plants
• Thermal management for IT enclosures in harsh conditions

Good to know

The fan is easy to install with a cut-out of 223 x 223 mm and connects via a terminal strip. It is approved by UL/cUL, TÜV, and EAC, ensuring compliance with international standards.
