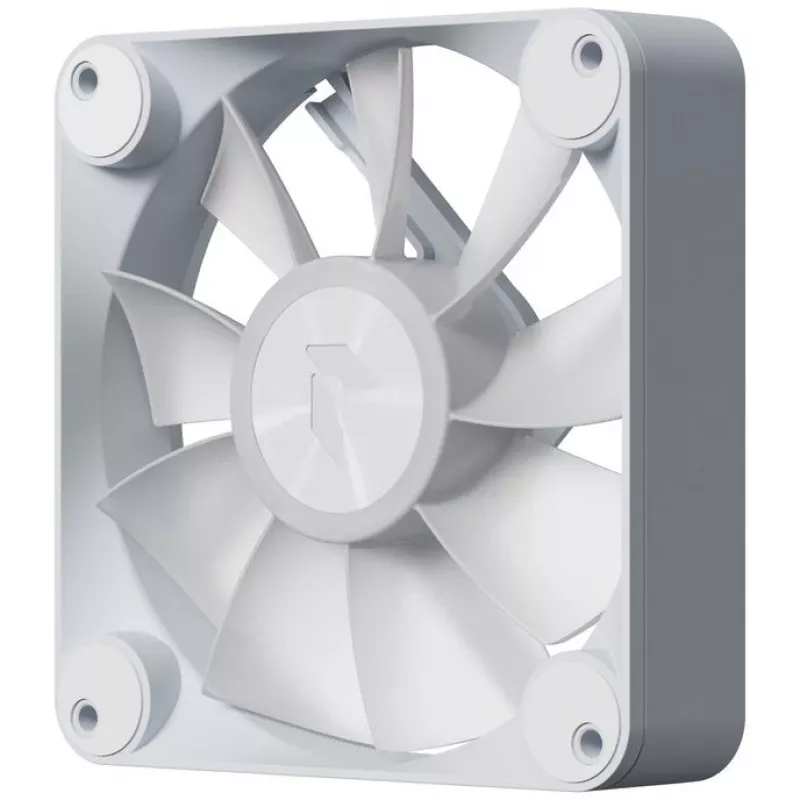

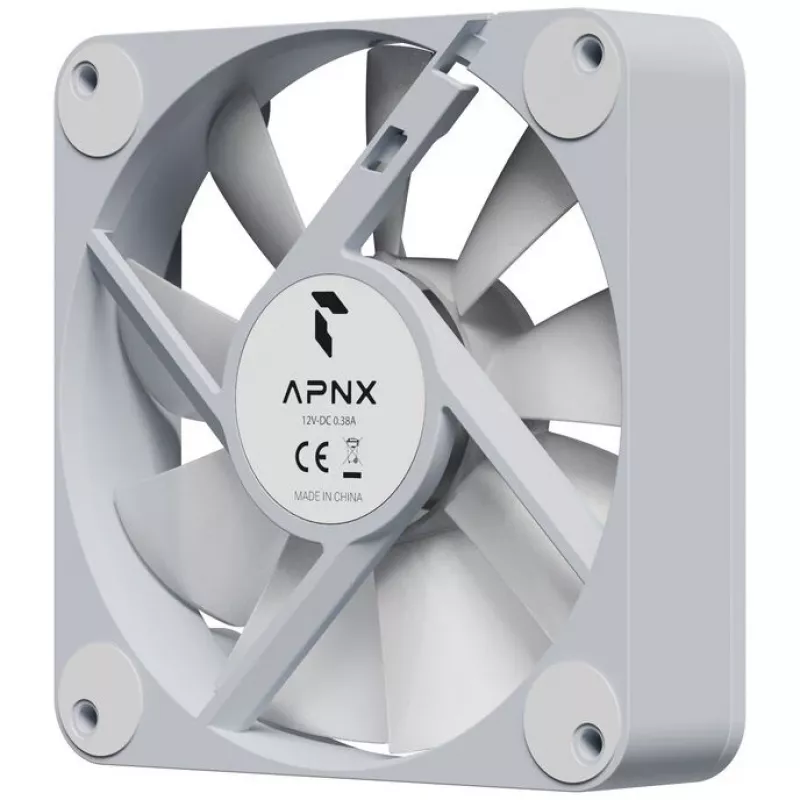

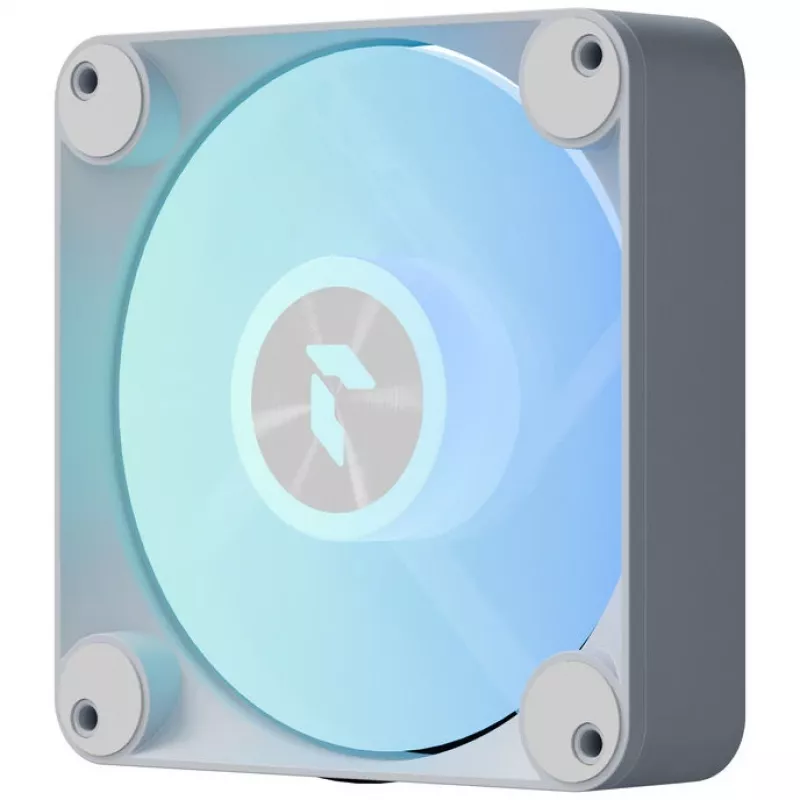

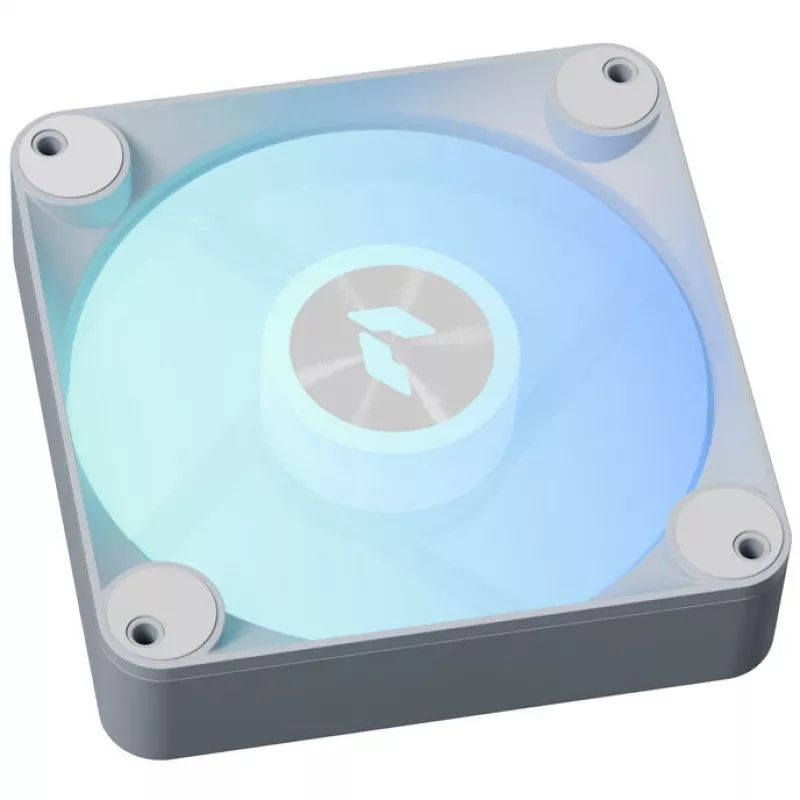

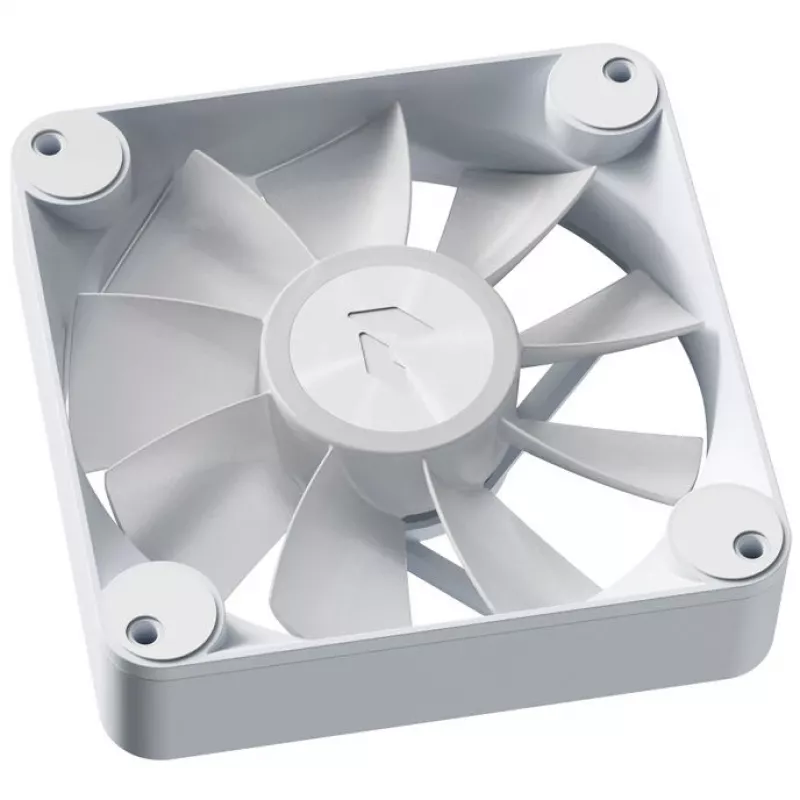

Ventoinha APNX FP1-120-R PWM ARGB branco 120mm, controlo PWM, iluminação ARGB

APNX FP1-120-R PWM ARGB White 120mm is a compact cooling fan intended for PC case or CPU cooling. The fan combines PWM speed control for automatic adjustment of airflow with addressable RGB illumination for customizable lighting. Its 120mm frame and white finish suit a variety of desktop builds where space-efficient cooling and coordinated system lighting are required.

Advantages

The fan provides PWM-controlled speed regulation to balance cooling performance and acoustic level, allowing compatible motherboards or fan controllers to adjust RPM according to temperature. Addressable RGB lighting enables per-LED color control and dynamic effects when connected to an ARGB header or compatible controller. The 120mm size delivers a compromise between airflow and compact installation space, and the white frame offers a neutral appearance that integrates with light or dark system themes.

Suitable for

• Desktop PC cases with 120mm fan mounts
• CPU coolers or radiator setups that accept 120mm fans
• Systems requiring PWM-based automatic fan speed control
• Builds where addressable RGB lighting is desired

Key specifications

• Fan diameter: 120 mm
• Frame color: white
• Speed control: PWM (pulse-width modulation)
• Lighting type: addressable RGB (ARGB)
• Mounting format: standard 4-hole 120mm

How to use

Install the fan into a compatible 120mm mount inside the PC case or on a compatible CPU cooler or radiator using the four mounting holes. Connect the PWM power cable to a motherboard fan header labeled for PWM control so the system can adjust fan speed based on temperature. Connect the ARGB cable to a compatible 3-pin 5V ARGB header or to an ARGB controller to enable addressable lighting effects. Ensure cable routing avoids contact with the fan blades and secures connectors to prevent disconnection during operation.

Recommendations

Use a motherboard or controller that supports 4-pin PWM fans and 3-pin 5V ARGB headers for full functionality. Configure fan curves in BIOS or fan-control software to balance cooling and noise. Periodically clean dust from the blades and frame to maintain airflow efficiency and lighting appearance.
