Ventoinha Corsair iCUE LINK LX140-R RGB 14 cm Branca 2000 RPM

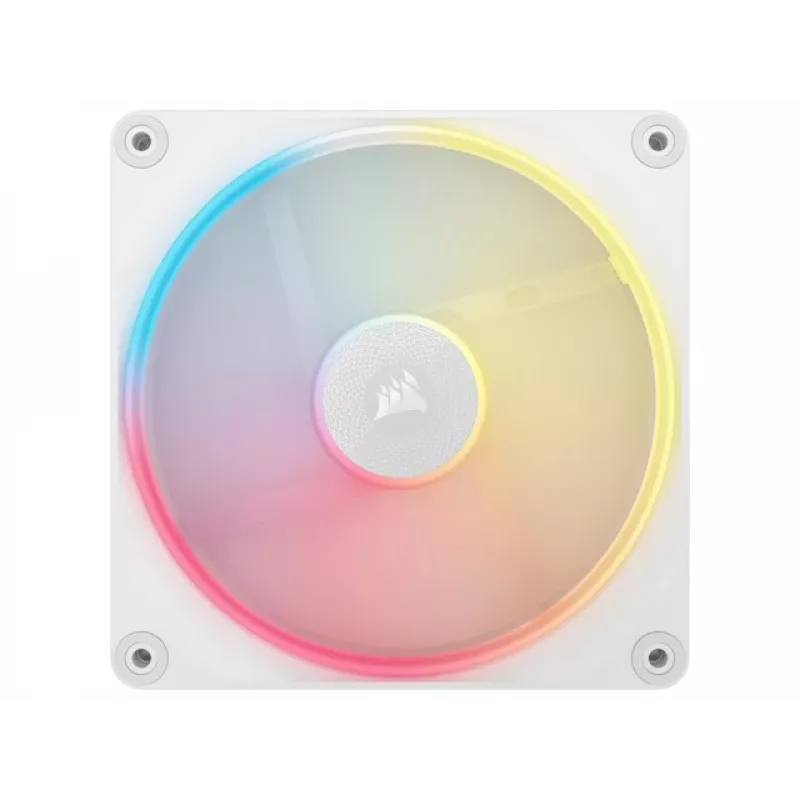

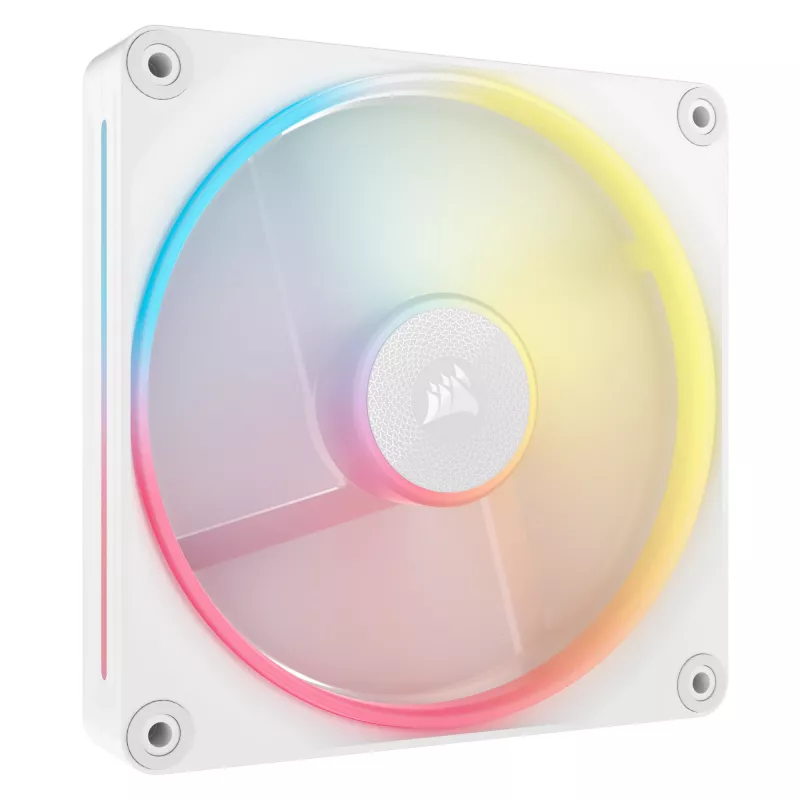

The Corsair iCUE LINK LX140-R RGB 14 cm White 2000 RPM is a 140 mm case fan engineered to improve airflow and help maintain optimal system temperatures. With a maximum rotational speed of 2000 RPM and a maximum static pressure of 3.55 mmH2O, this white fan is intended for use in PC builds where efficient cooling and a clean aesthetic are desired. The reverse rotor design preserves RGB lighting visibility when the fan is mounted as an intake, and the QuikTurn screw system simplifies installation.

Advantages

The reverse rotor design keeps RGB lighting fully visible when the fan is installed as an intake, ensuring an unbroken visual appearance. The fan’s rated 2000 RPM speed and 3.55 mmH2O air pressure support effective airflow and cooling performance for case ventilation or on radiators that accept 140 mm fans. The QuikTurn screws provide tool-free, single-turn mounting that is as secure as traditional screws while speeding up assembly, especially when installing multiple fans.

Suitable for

• Case ventilation in mid-tower and full-tower PC builds
• Intake or exhaust mounting where visible RGB lighting is desired
• Cooling radiators compatible with 140 mm fans (check radiator specifications)
• System builders who prefer quicker fan installation using QuikTurn screws

Key specifications

• Type: Fan
• Fan diameter: 140 mm
• Maximum speed: 2000 RPM
• Maximum static pressure: 3.55 mmH2O
• Product colour: White
• Model: Corsair iCUE LINK LX140-R RGB (MPN CO-9051055-WW, EAN 0840006688747)

How to use

Mount the fan in the desired orientation for intake or exhaust, taking advantage of the reverse rotor design to maintain RGB visibility when used as intake. Secure the fan using the included QuikTurn screws by turning each screw until it locks—no additional tools required. Connect the fan’s power and RGB headers according to your motherboard or controller instructions, and configure fan speed and lighting through Corsair iCUE or compatible software if available.

Recommendations

For optimal cooling, place these fans to create a balanced airflow path (intake at the front/bottom, exhaust at the rear/top). Verify radiator compatibility before installing on liquid cooling radiators. Clean the fan blades periodically to maintain performance and avoid obstructing airflow.
