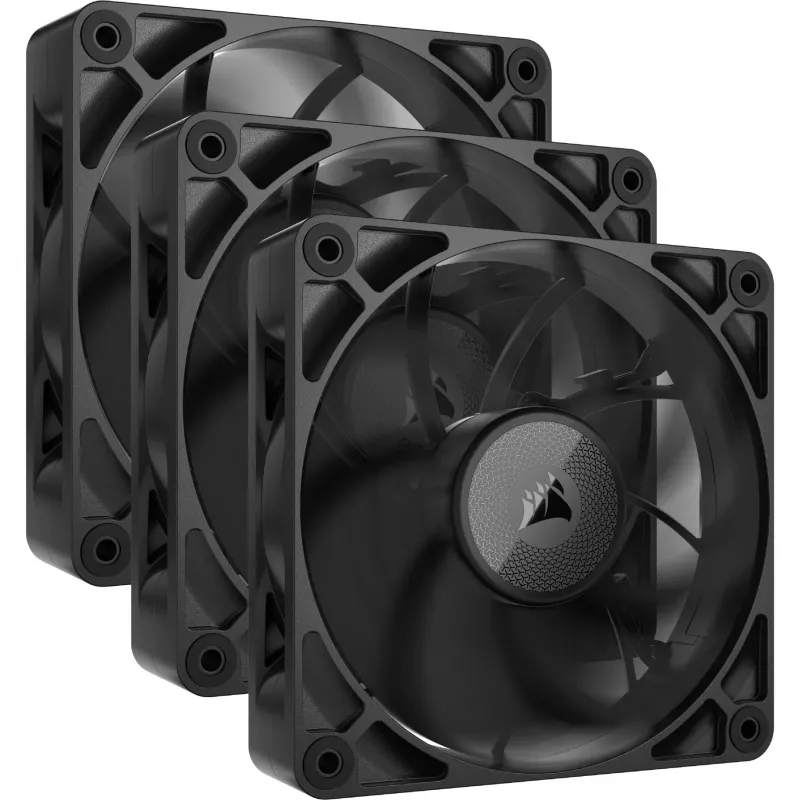

Ventoinha Corsair iCUE LINK RX120 MAX 12 cm preta, 3 unid., 400–2000 rpm

The Corsair iCUE LINK RX120 MAX is a 120 mm case fan sold in a pack of three, designed to provide efficient cooling for PC cases and radiators. It operates across a 400–2000 RPM range and delivers high airflow and static pressure while maintaining lower noise levels. The fan features a universal iCUE LINK connector for simple chainable installation and a black finish that suits most system builds.

Advantages

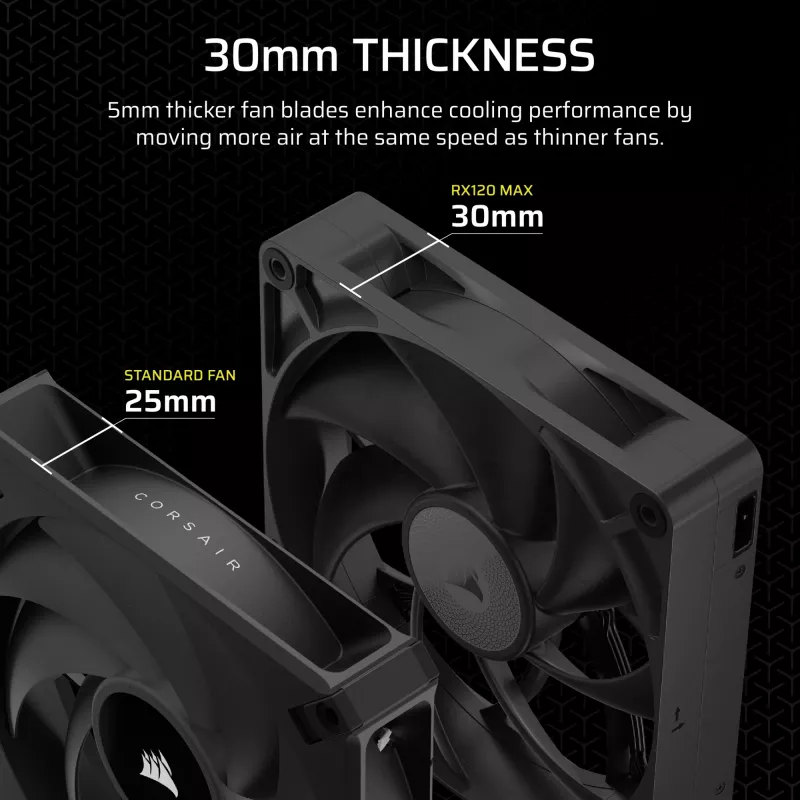

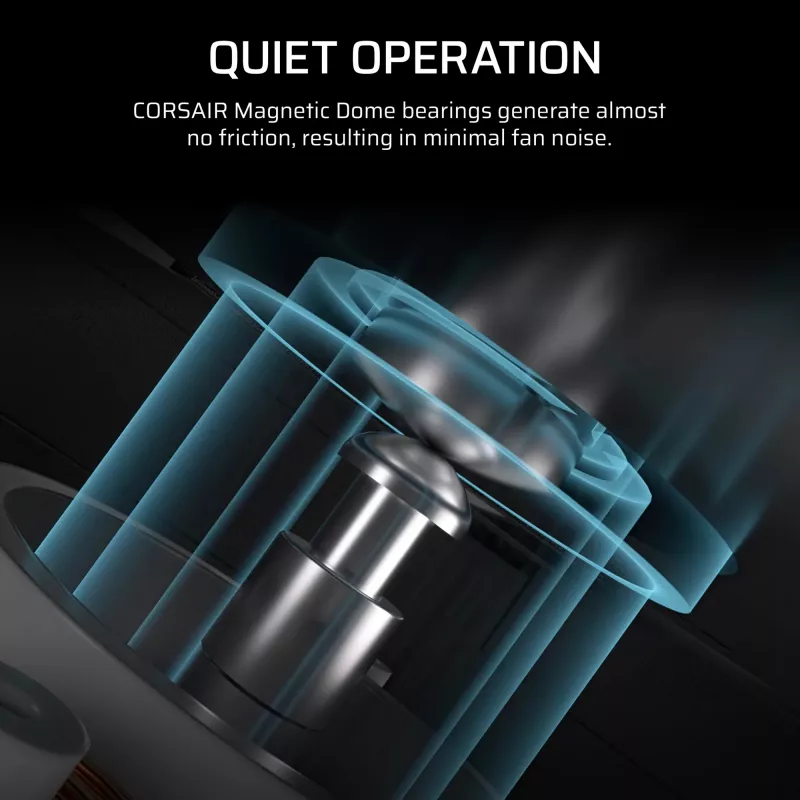

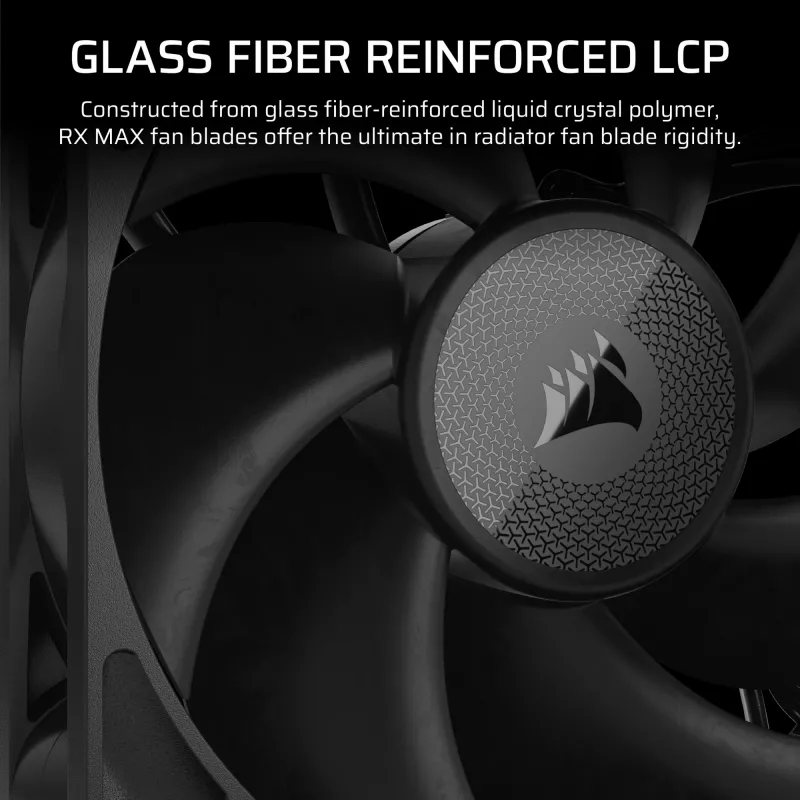

Thicker 30 mm fan blades increase airflow and static pressure compared with standard fans, enabling stronger cooling performance. Glass fiber–reinforced liquid crystal polymer blades maintain rigidity under load to prevent bending, preserving consistent radiator flow. The magnetic dome bearing reduces friction and mechanical noise, extending fan life. QuikTurn screws simplify and speed up installation while remaining robust and secure.

Suitable for

• Case cooling in desktop PC builds
• Radiator mounting for liquid CPU/GPU coolers
• Systems requiring high static pressure in confined or obstructed airflow paths

Key specifications

• Model: Corsair iCUE LINK RX120 MAX (3-pack)
• Fan diameter: 120 mm
• Thickness: 30 mm
• Speed range: 400–2000 RPM

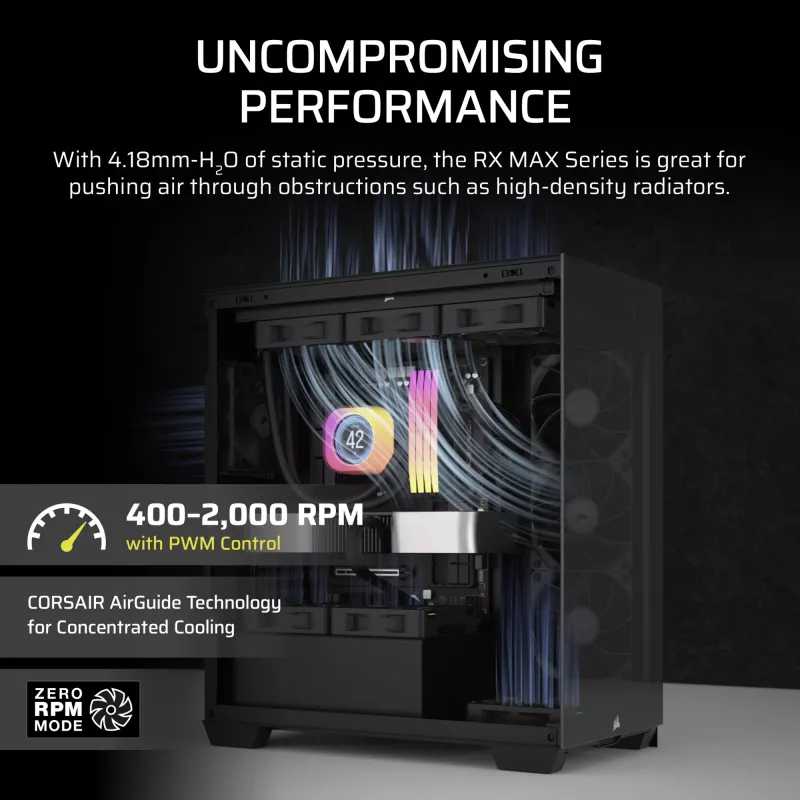

• Maximum static pressure: 4.18 mmH2O
• Colour: Black
• Weight (package): 0.811 kg
• MPN: CO-9051042-WW
• EAN: 0840006683056

How to use

Install the RX120 MAX fans into your case or radiator fan mounts using the included QuikTurn screws. Connect the fans using the iCUE LINK universal connector to chain multiple fans together and then attach to the appropriate controller or motherboard header as required. Ensure airflow orientation matches your desired intake or exhaust configuration and that fans are secured firmly to avoid vibration.

Recommendations

Use RX120 MAX fans at variable speeds via PWM or fan control software to balance cooling performance and acoustic levels; lower RPM still achieves strong airflow thanks to the thicker blade design. For radiator installation, position fans to push air through the radiator fins and verify clearance for the 30 mm thickness when mounting multiple fans or tight-fit radiators.
