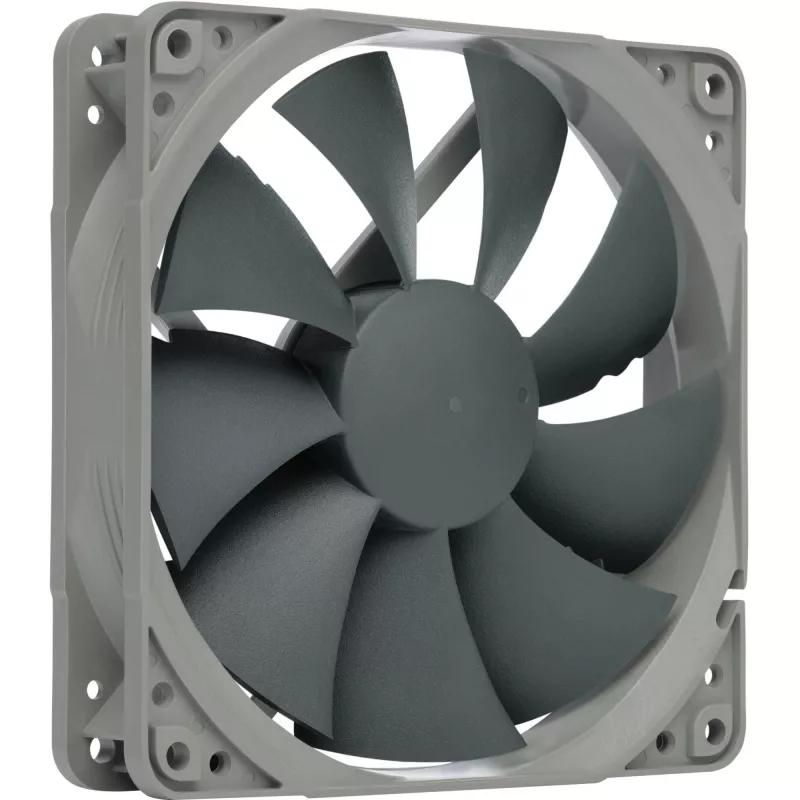

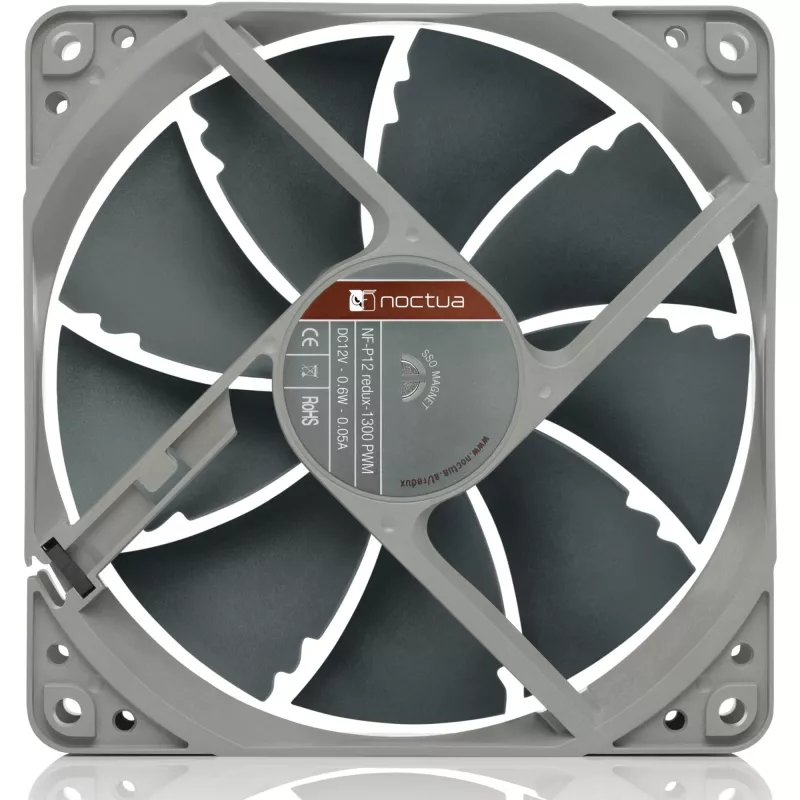

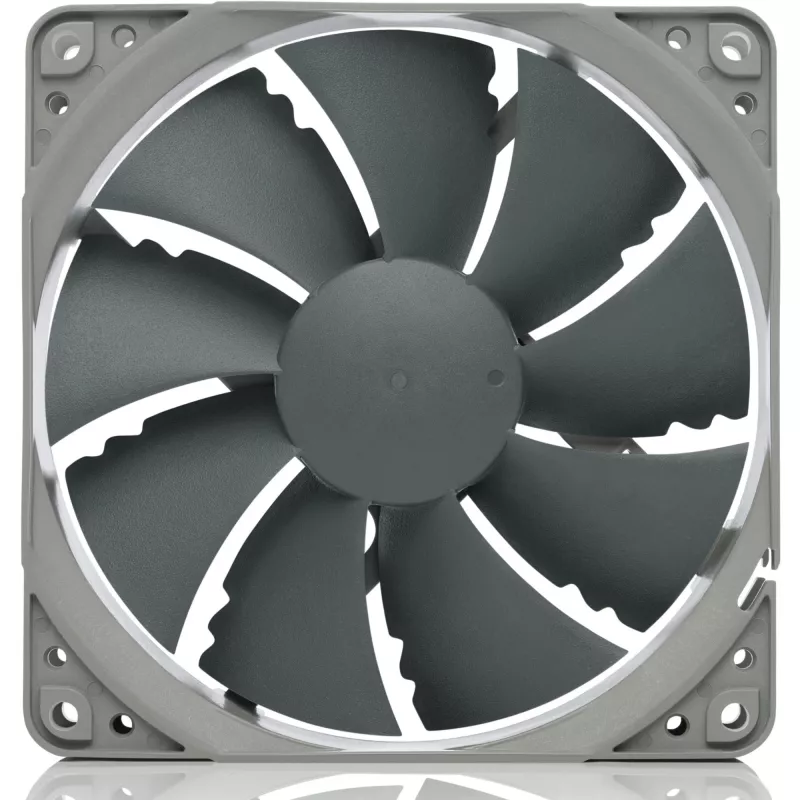

Ventoinha de caixa Noctua NF-P12 redux-1300 PWM, 120 mm, 1300 rpm, 12 V, 4 pinos PWM, 92,3 m³/h, 19,8 dB

The Noctua NF-P12 redux 1300 PWM is a 120 mm case and radiator fan designed for pressure-demanding applications such as CPU coolers and water-cooling radiators. This redux edition returns the proven NF-P12 design in a streamlined, affordably priced package that focuses on the essential: a premium, quiet 120 mm fan with an industry-grade SSO bearing, over 150,000 hours MTTF rating and a 6-year manufacturer’s warranty. The 1300 RPM PWM model uses Noctua’s NE-FD1 PWM IC for automatic speed control to balance cooling capacity and low noise.

Advantages

The NF-P12 redux delivers high static pressure and good airflow in a compact nine-blade design optimised for radiators and tight grills. Integrated Vortex-Control Notches reduce perceptible tonal noise by spreading vortex frequencies, while Smooth Commutation Drive (SCD) technology and the updated SCD2 implementation minimise PWM switching noise and torque variations for quiet operation at low speeds. The SSO bearing adds long-term stability and quietness, and a selection of optional Noctua accessories (anti-vibration mounts, Low-Noise-Adaptors, y-cables, adapters and extensions) allows users to adapt the fan to specific installation needs.

Key specifications

• Model: NF-P12 redux 1300 PWM
• Fan size: 120 mm
• Maximum speed: 1300 RPM (PWM)
• Bearing: SSO (self-stabilising oil-pressure) bearing
• MTTF: over 150,000 hours
• Control: NE-FD1 PWM IC with Smooth Commutation Drive (SCD / SCD2)
• Design: nine-blade pressure-optimised impeller with Vortex-Control Notches
• Warranty: 6 years manufacturer’s warranty

How to use

Connect the NF-P12 redux to a compatible 4-pin PWM header on the motherboard or to a PWM-capable fan controller to enable automatic speed regulation. Install the fan on a CPU cooler, radiator or case location using the supplied screws or optional anti-vibration mounts. Orient the fan so that airflow direction suits your cooling configuration (airflow arrow on the frame indicates direction). If lower noise is desired, use motherboard fan control curves or a Low-Noise-Adaptor to reduce maximum RPM.

Recommendations

For radiator and high-impedance setups choose the NF-P12 redux 1300 PWM for its pressure-optimised nine-blade design and SSO bearing. Consider Noctua’s NA-SAVP1 anti-vibration pads if you want to damp small vibrations and match the fan colour to your build; optional Low-Noise-Adaptors or PWM tuning can further reduce noise when full RPM is not required.
