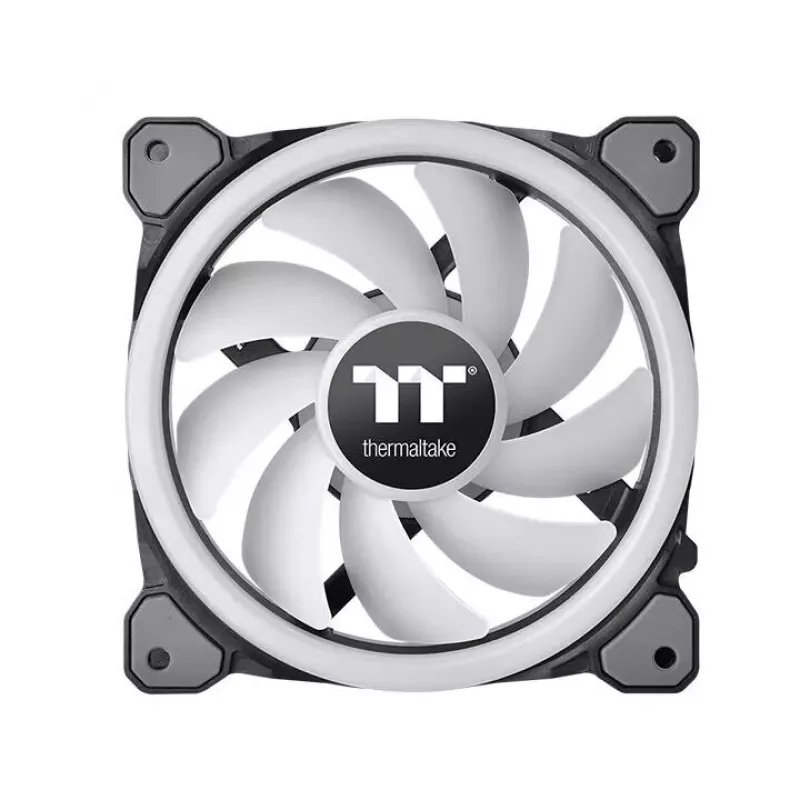

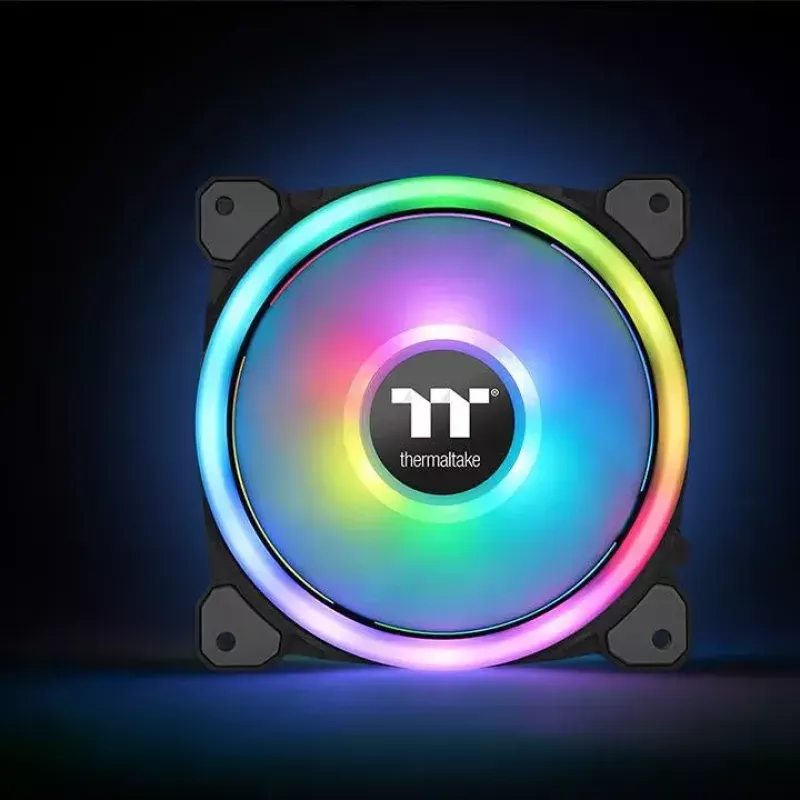

Ventoinha de radiador Thermaltake Riing Trio 12 LED RGB, TT Premium Edition

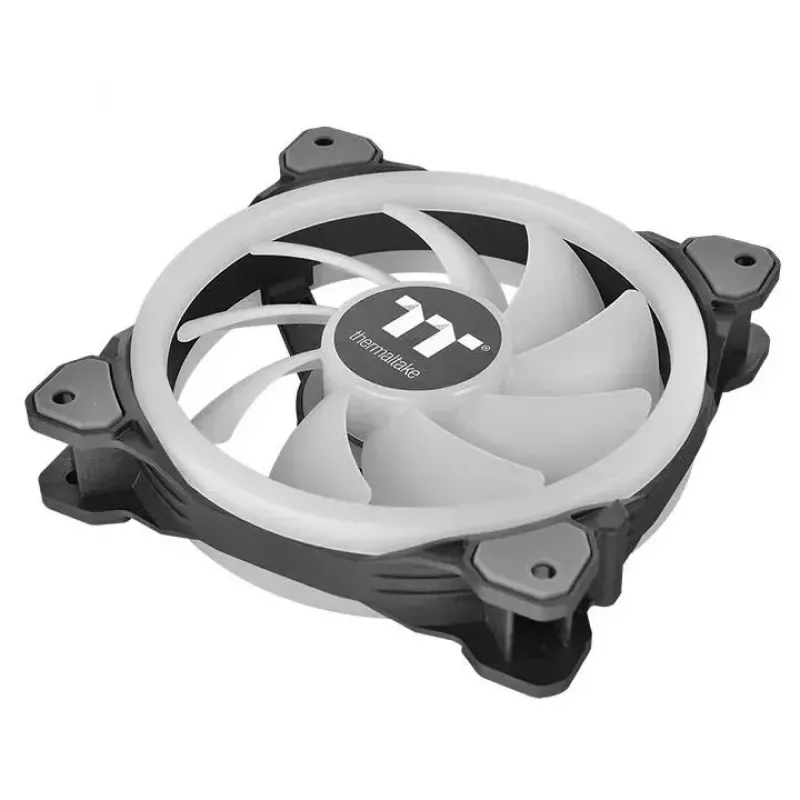

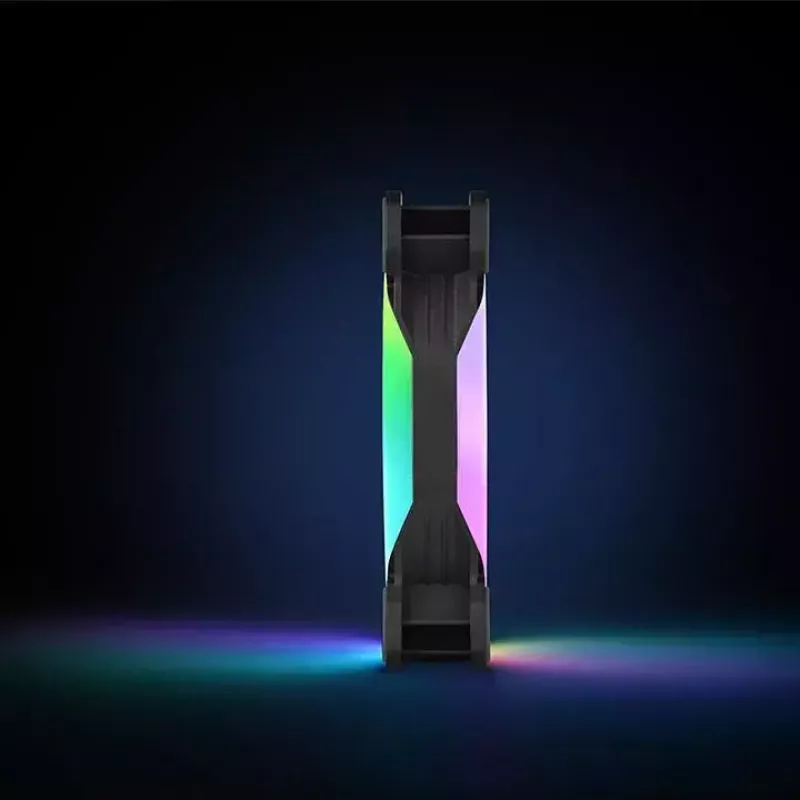

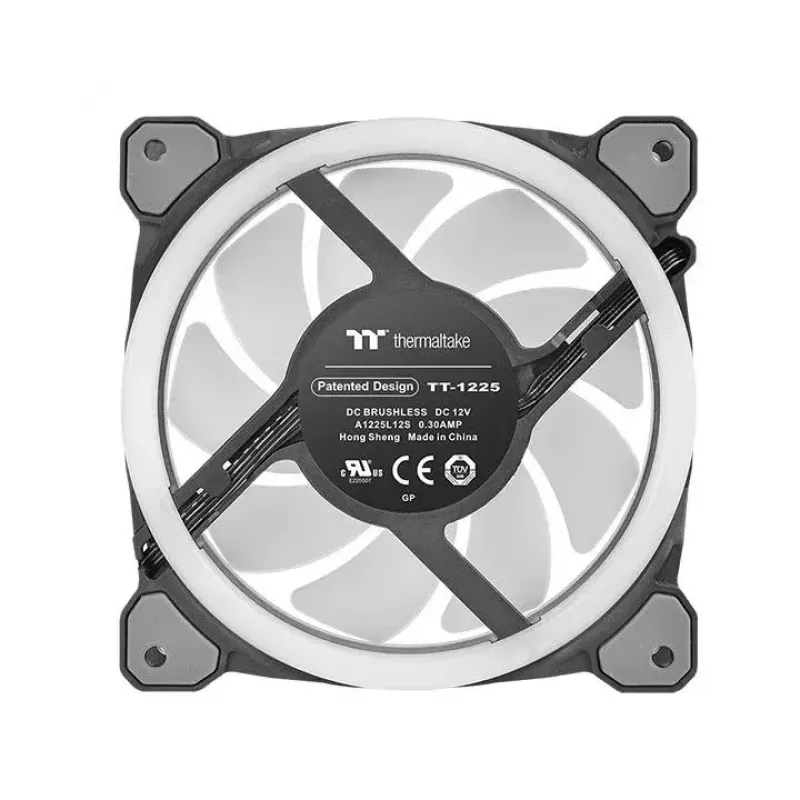

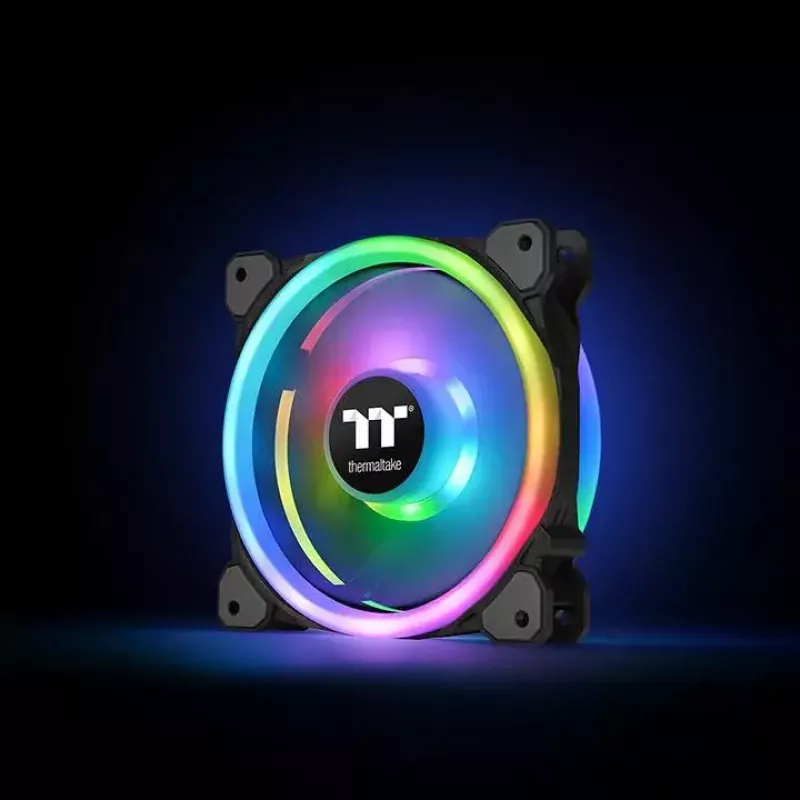

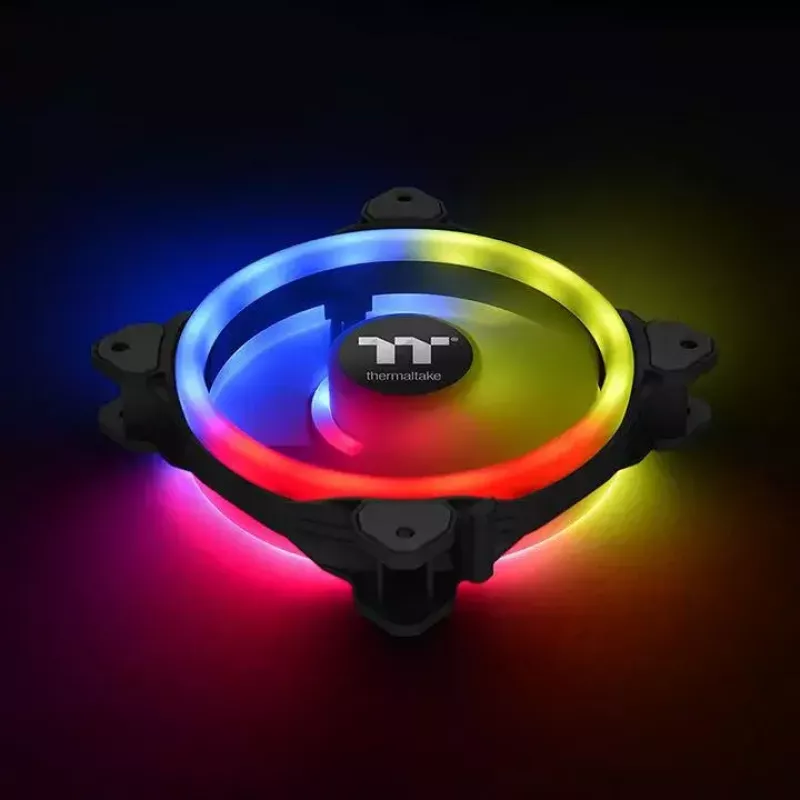

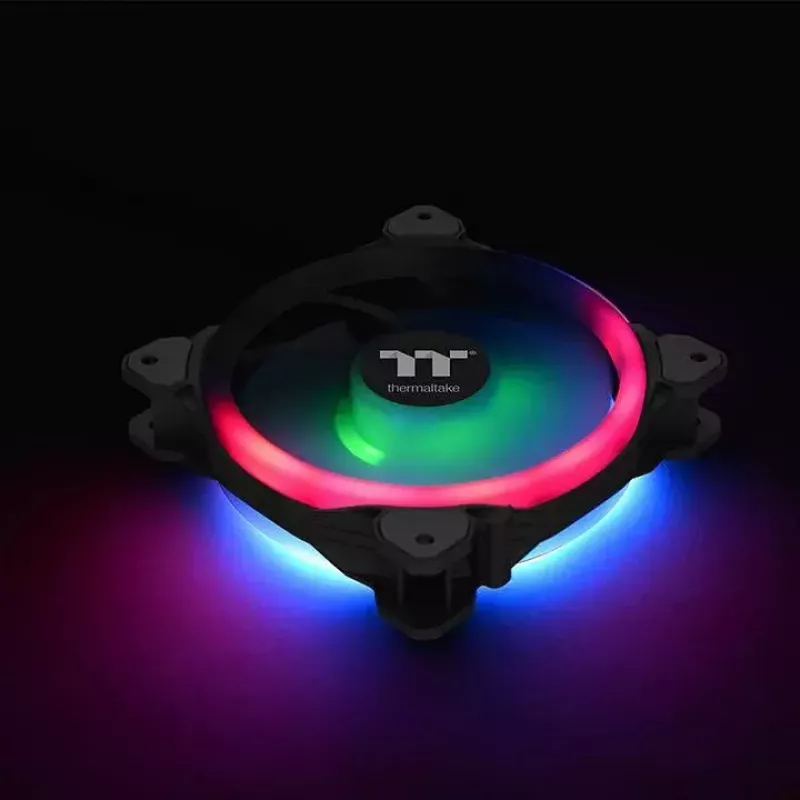

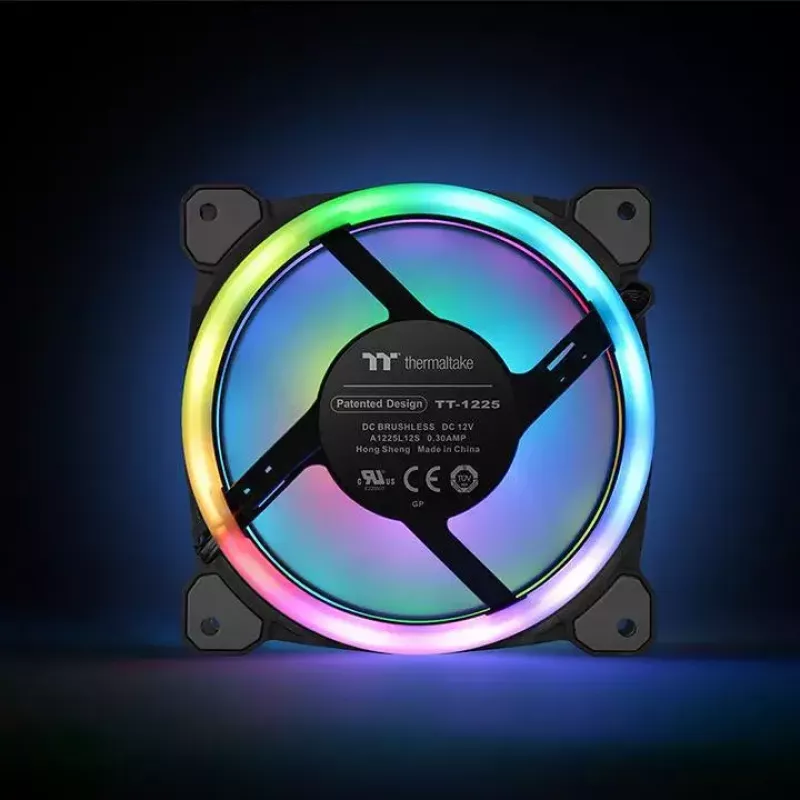

Thermaltake Riing Trio 12 RGB is a 120 mm radiator fan with three independent LED rings that deliver up to 16.8 million colors. The fan integrates 30 addressable LEDs (front 12, middle 6, back 12) and supports Thermaltake’s TT RGB PLUS ecosystem, including desktop software, mobile app, and voice control via Amazon Alexa and Thermaltake AI. The fan uses a PWM-controlled high-static-pressure motor, a 9-blade compression design and a long-life hydraulic bearing to provide effective cooling with low noise; anti-vibration rubber pads reduce vibration at mounting points.

Advantages

The triple-ring addressable LED design offers wide, uniform light coverage and flexible color control across 30 individually addressable LEDs. PWM control and a 9-blade profile maximize airflow and static pressure for radiator and case cooling while maintaining quiet operation thanks to the hydraulic bearing and anti-vibration mounts. The included digital lighting controller and TT RGB PLUS compatibility allow synchronization with other Thermaltake RGB products, app control and AI/voice commands.

Suitable for

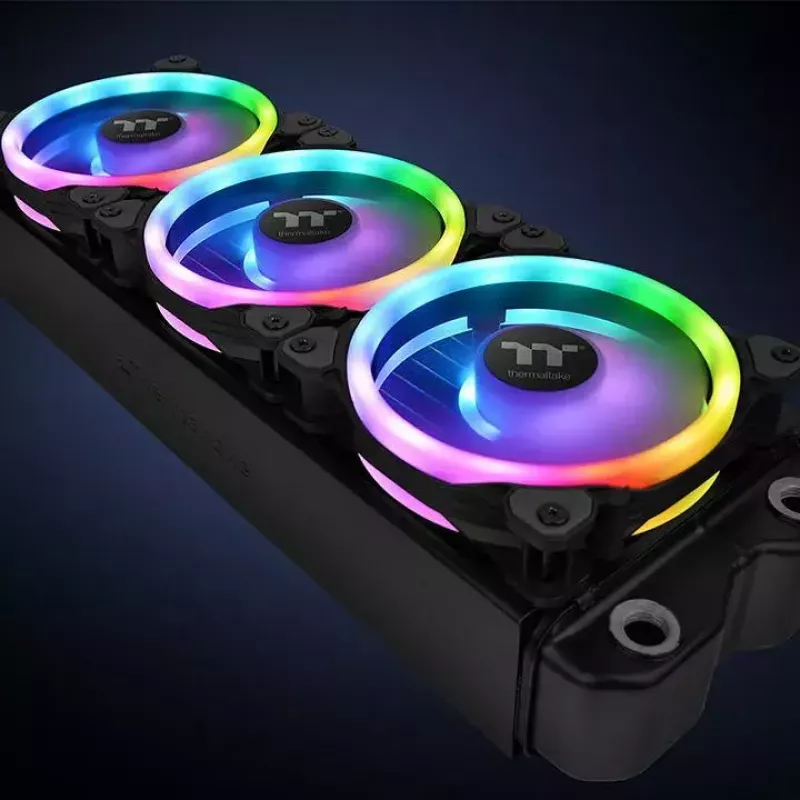

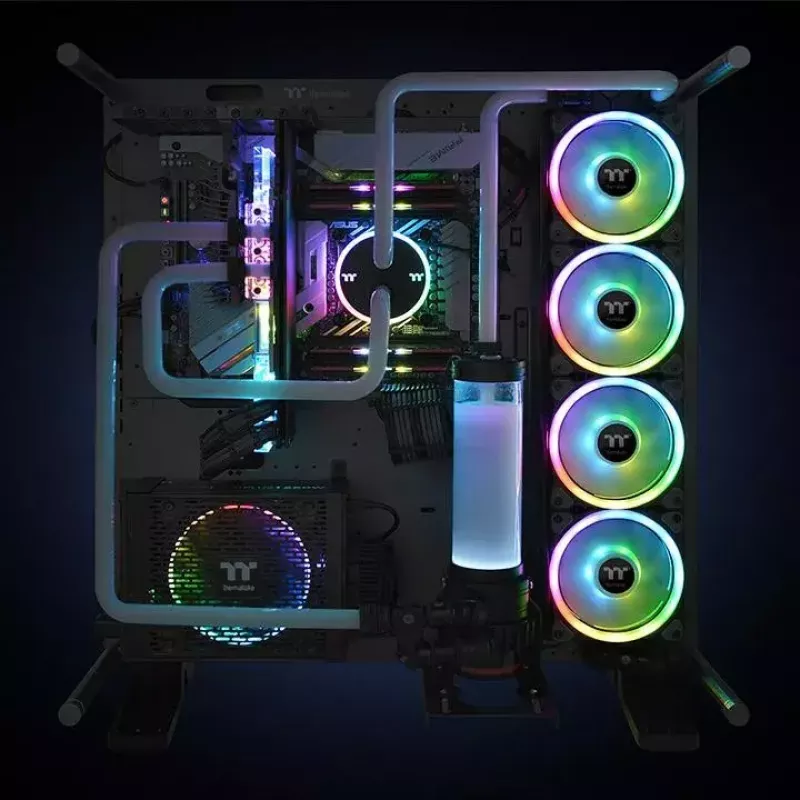

• Cooling radiators in liquid-cooled PC systems
• Case intake or exhaust where high static pressure is required
• RGB-focused PC builds requiring synchronized lighting effects

Key specifications

• Fan diameter: 120 mm
• LEDs: 30 addressable LEDs (three independent rings)
• Color capability: up to 16.8 million colors
• Control: PWM speed control; TT RGB PLUS software and mobile app; voice control support
• Bearing type: hydraulic (long-life)
• Blade design: 9 compression fan blades
• Max static pressure: 1.4 mmH2O (manufacturer data)
• RPM range: 500–1500 RPM (manufacturer summary)
• Weight: 0.168 kg
• Product colour: Black
• MPN: CL-F072-PL12SW-A • EAN: 4711246873506

How to use

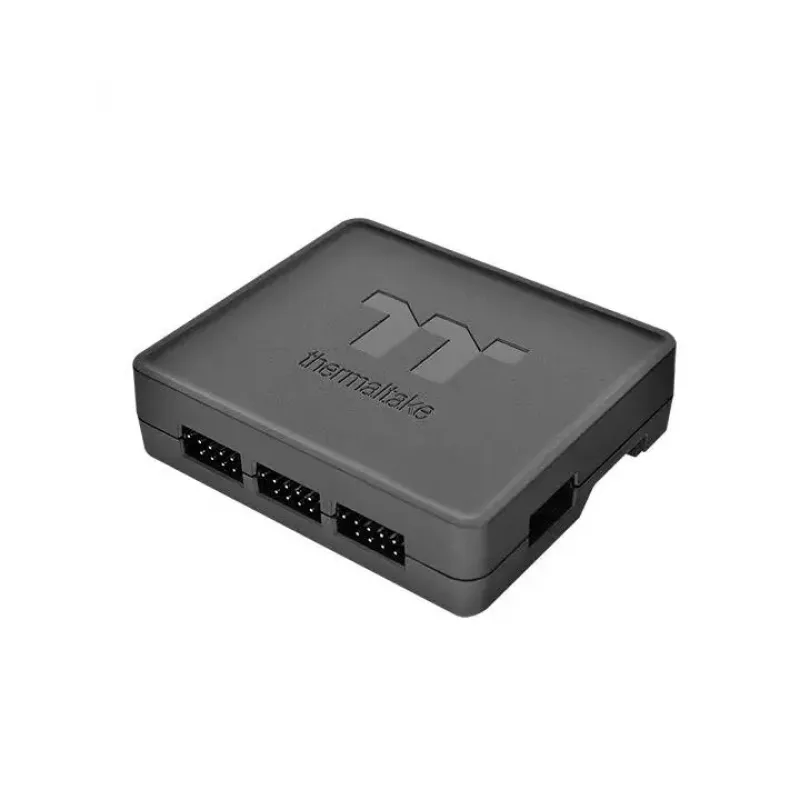

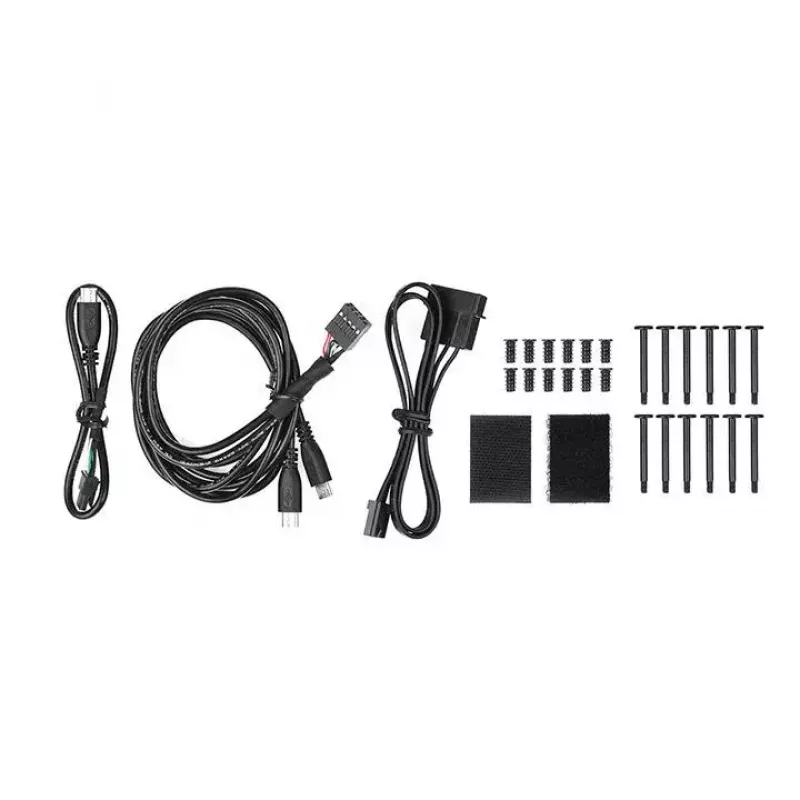

Install the fan on a radiator or case using the supplied screws and anti-vibration rubber pads to minimize vibration. Connect the PWM cable to a motherboard fan header or fan controller to enable automatic speed regulation. Connect the lighting cable to the included digital lighting controller, set the controller ID with the DIP switch, and link the controller to the TT RGB PLUS software to configure colors, lighting modes and synchronization. Up to five devices can be connected to one controller and multiple controllers can be added to the software for larger setups.

Recommendations

For optimal cooling on radiators, mount the Riing Trio 12 as a push or pull fan pair and enable PWM control on the motherboard. Use the TT RGB PLUS app or desktop software to set appropriate fan curves and synchronize lighting with other TT RGB PLUS components.
