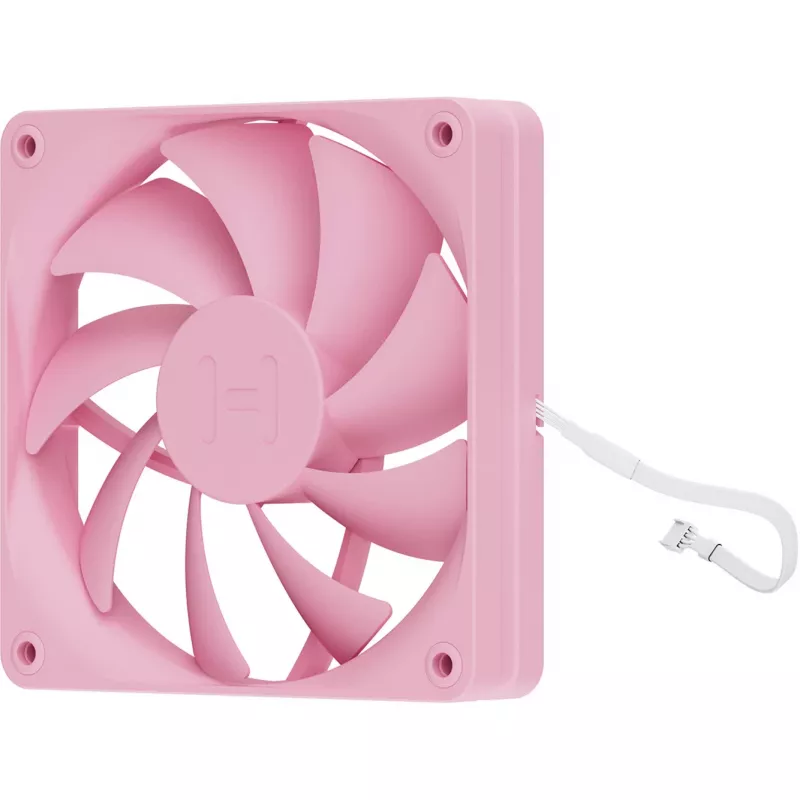

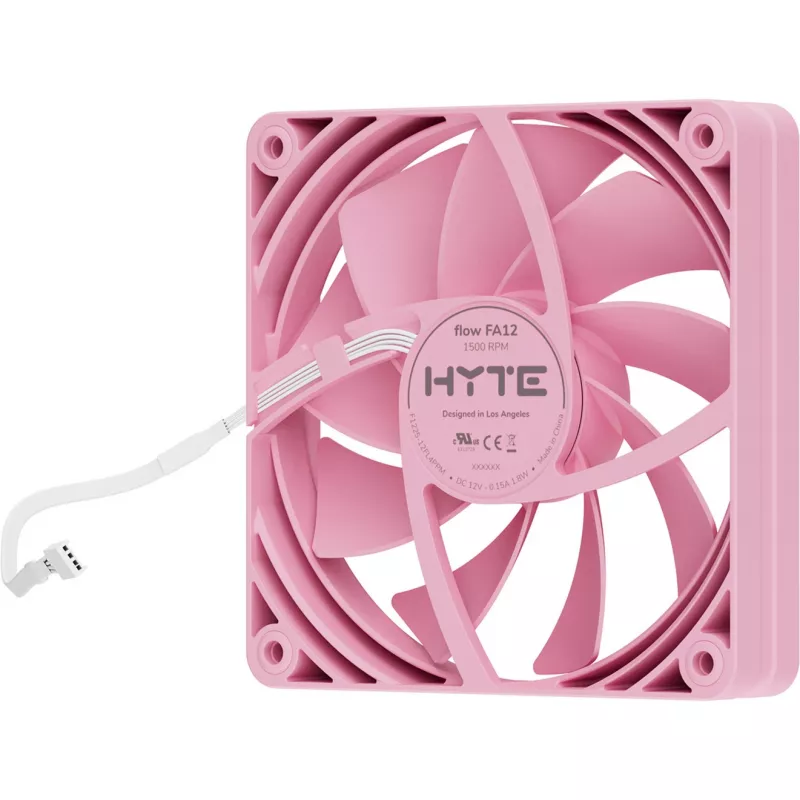

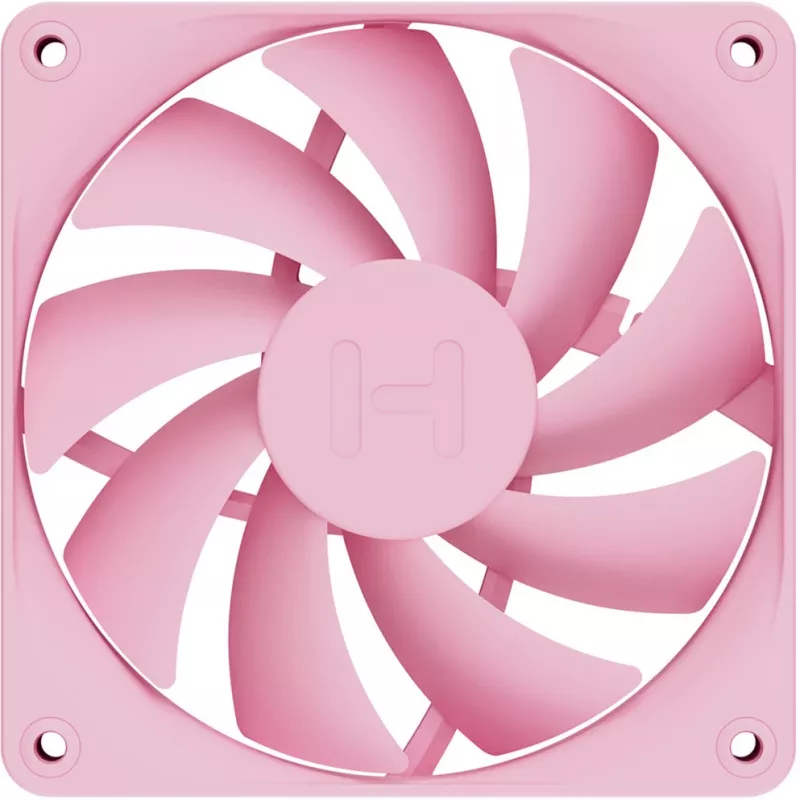

Ventoinha de refrigeração para computador HYTE FA12-SM-4 120 mm, 1500 rpm, 72 m³/h, 1,6 mmH2O, FDB, rosa, 4 unid.

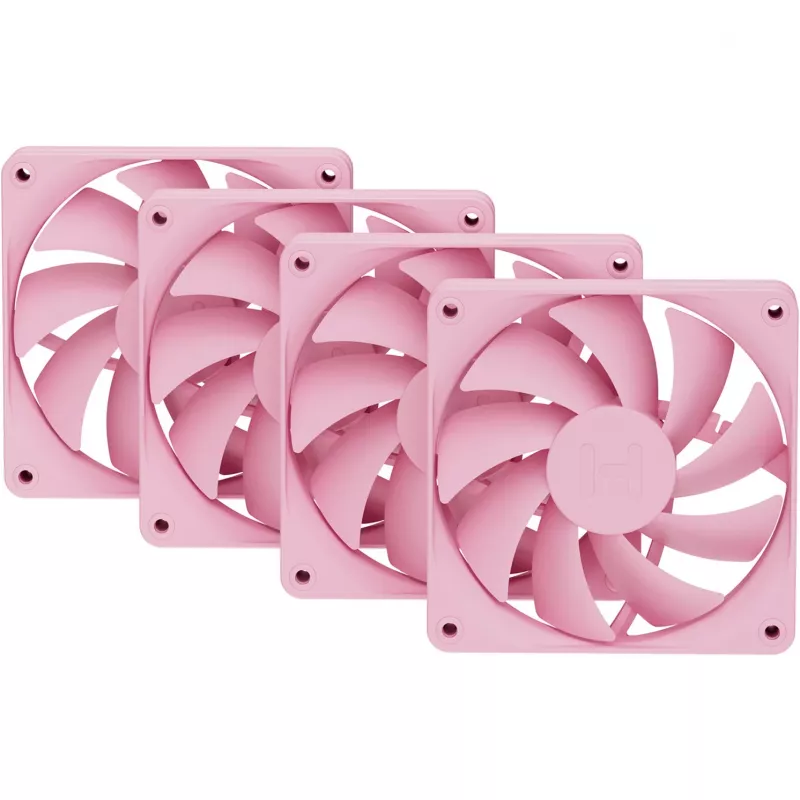

HYTE FA12-SM-4 is a set of four 120 mm computer cooling fans in rose color designed for general case ventilation and radiator use. Each fan reaches up to 1500 RPM, delivers airflow up to 72 m³/h and offers maximum static pressure of 1.6 mmH2O. The fans use fluid dynamic bearings (FDB) to reduce operational noise and extend service life, and come with braided sleeved PWM cables and vibration isolators for improved cable management and reduced vibration transfer.

Advantages

The FA12-SM-4 combines a hybrid blade geometry with a balanced specification for both airflow and static pressure, making it suitable for intake, exhaust and radiator-mounted roles. Fluid dynamic bearings provide quieter operation and longer lifespan compared with conventional sleeve bearings. Braided sleeved PWM cables enable precise speed control across a wide range, while integrated vibration isolators and a refined frame design help reduce audible vibration and improve system acoustics.

Suitable for

• Case airflow improvement (intake and exhaust)
• System builds matching HYTE aesthetic color options
• Replacing or upgrading existing 120 mm case fans

Key specifications

• Fan size: 120 x 25 mm
• Rotational speed: up to 1500 RPM
• Airflow: up to 72 m³/h
• Maximum static pressure: 1.6 mmH2O
• Bearing type: fluid dynamic bearing (FDB)
• Connector and control: PWM with braided sleeved cable
• Anti-vibration features: built-in vibration isolators
• Pack contents: 4 fans
• Color: rose

How to use

Install each 120 mm fan in the appropriate mounting location in your PC case or on a compatible radiator using the provided screw holes. Connect the 4-pin PWM connector to a motherboard fan header or PWM fan controller to enable automatic speed control. Ensure airflow direction aligns with your intended intake or exhaust configuration; typically, airflow moves from the open side of the frame through to the side with the motor hub and label. Verify secure cable routing using the braided sleeved cables and avoid contact with other components or moving parts.

Recommendations

For balanced cooling and noise performance, allow the motherboard or fan controller to manage PWM profiles, keeping default speeds under 1500 RPM and adjusting curves to prioritize either lower noise or higher airflow as needed. Place fans with higher static pressure on radiators or densely finned areas and use the vibration isolators or rubber mounts to minimize transferred vibration to the case.
