Ventoinha Noctua NV-FS1 12 cm 2000 RPM preto

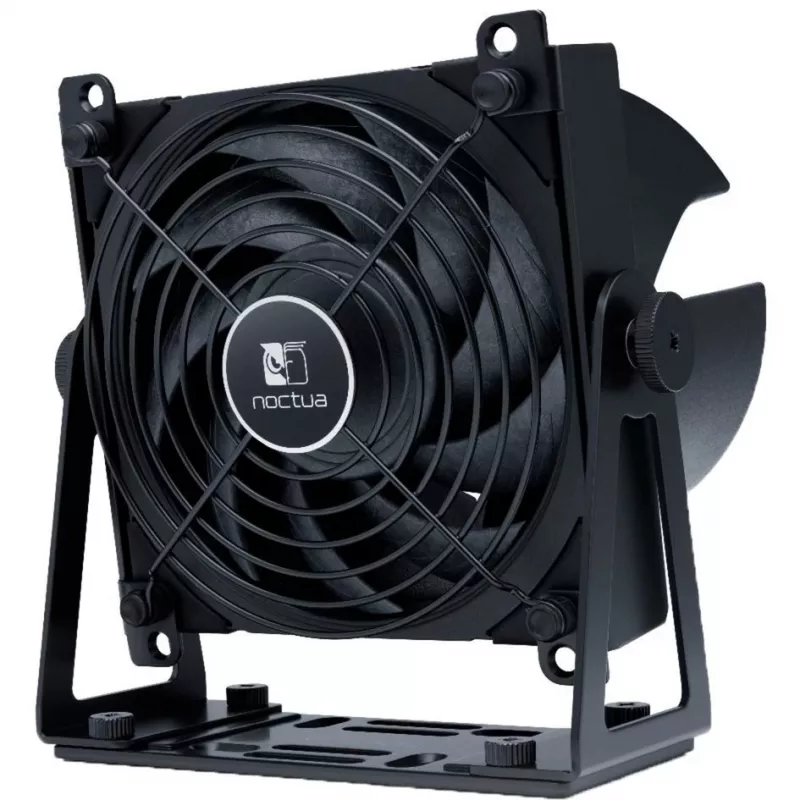

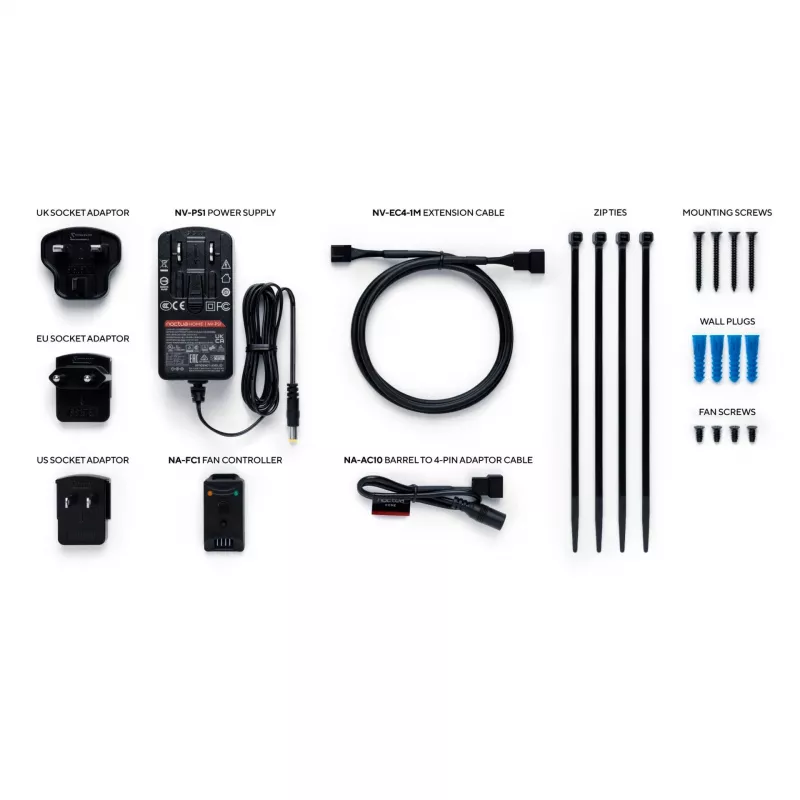

The Noctua NV-FS1 is a premium multi-purpose 120mm fan set designed for versatile ventilation tasks such as desk and room circulation or device cooling. The package pairs the award-winning NF-A12x25 120mm PWM fan with an NV-AA1 airflow amplifier and includes a NA-FC1 stepless PWM controller, a robust NV-FM1 steel pivoting mount, NA-FG1 fan grill, NV-PS1 universal 230/115V power supply and NV-EC4 1m extension cable. The NV-FM1 mount offers magnetic attachment, zip-tie slots and screw holes for flexible placement and integrated vibration damping to minimise transmitted vibrations.

Advantages

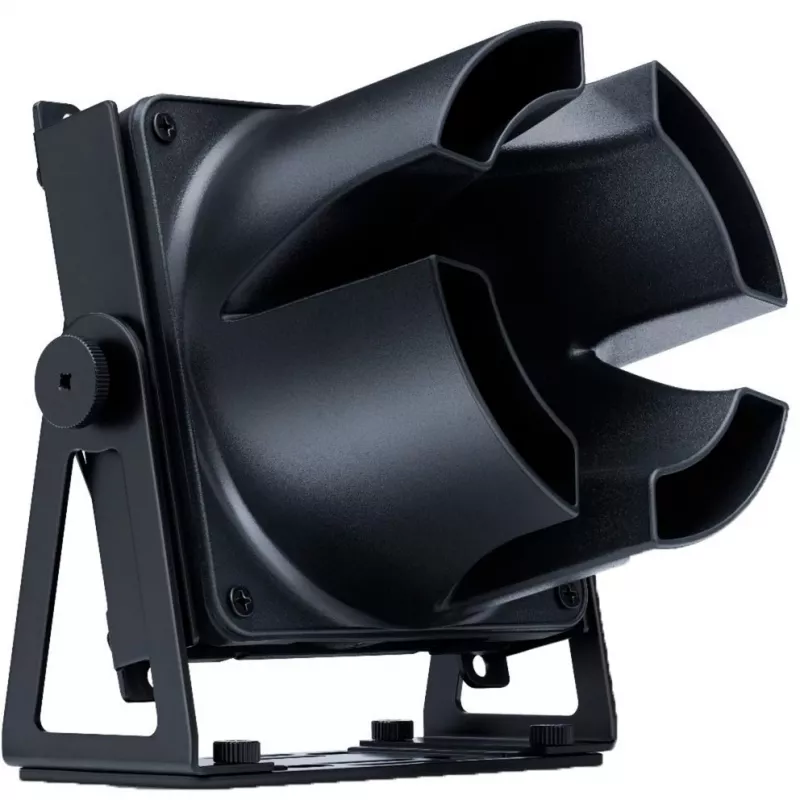

The NV-FS1 combines a highly efficient, quiet NF-A12x25 fan with an NV-AA1 airflow amplifier to deliver a focused, strong beam of air while keeping noise low. The steel NV-FM1 pivoting mount enables secure, angle-adjustable mounting on desks, walls, ceilings or furniture. Included accessories such as the NA-FC1 controller, NV-PS1 mains power supply and extension cabling provide flexible installation options and easy mains operation. Vibration reduction is achieved through a three-level anti-vibration design and the pre-installed NA-FG1 grill protects against accidental contact.

Suitable for

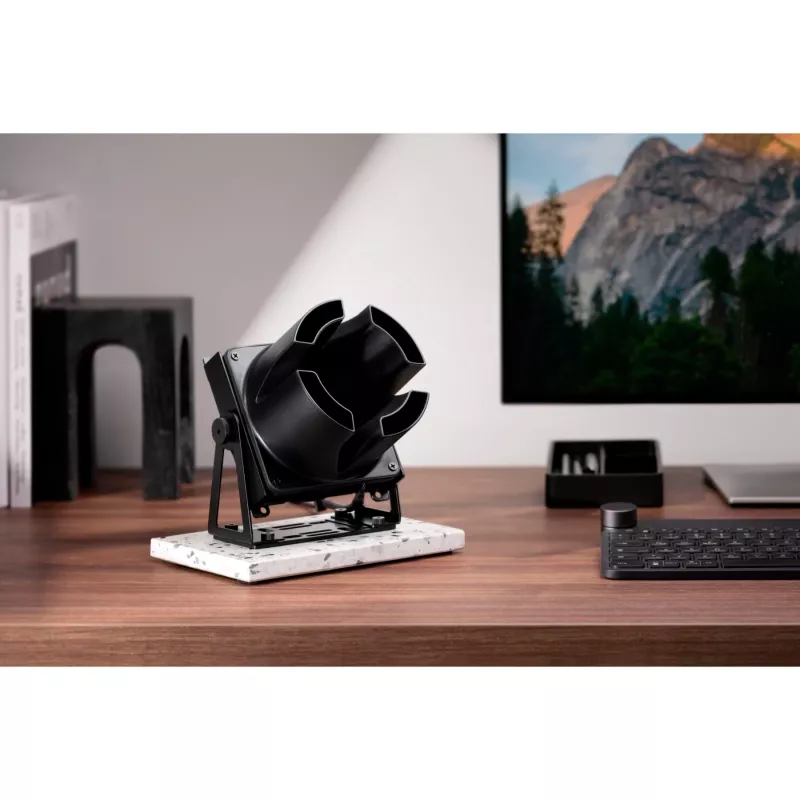

• Desk ventilation and personal cooling
• Room air circulation in small to medium spaces
• Device cooling for electronics and enclosures
• Targeted spot cooling (upwards, downwards or sideways)

Key specifications

• Fan size: 120 mm (NF-A12x25)
• Maximum speed: 2000 RPM
• Airflow: 102.1 m³/h
• Rated voltage: 12 V
• Set dimensions (mount included): 140 × 50 × 155 mm
• Colour: Black
• Weight: 0.75 kg
• Power supply: NV-PS1 24W AC/DC, 230/115V compatible

How to use

Mount the fan to the NV-FM1 pivoting stand using the pre-installed silicone push-pins and position the mount on a flat surface or secure it with screws, zip-ties or the integrated magnets as required. Connect the fan to the NA-FC1 stepless PWM controller to set the desired speed from maximum airflow down to near-silent operation or stop. Plug the NV-PS1 power supply into the mains and attach the NV-EC4 extension cable if extra reach is needed; the controller can be installed either before or after the extension cable depending on placement preferences.

Recommendations

Use the NV-FS1 for targeted ventilation by pairing higher fan speeds with the NV-AA1 amplifier for strong focused airflow, or reduce the NA-FC1 setting for quieter background circulation. Ensure secure mounting and keep the NA-FG1 grill unobstructed. For powering multiple fans or extending control, use compatible Noctua splitter cables or fan hubs from the HOME line.
