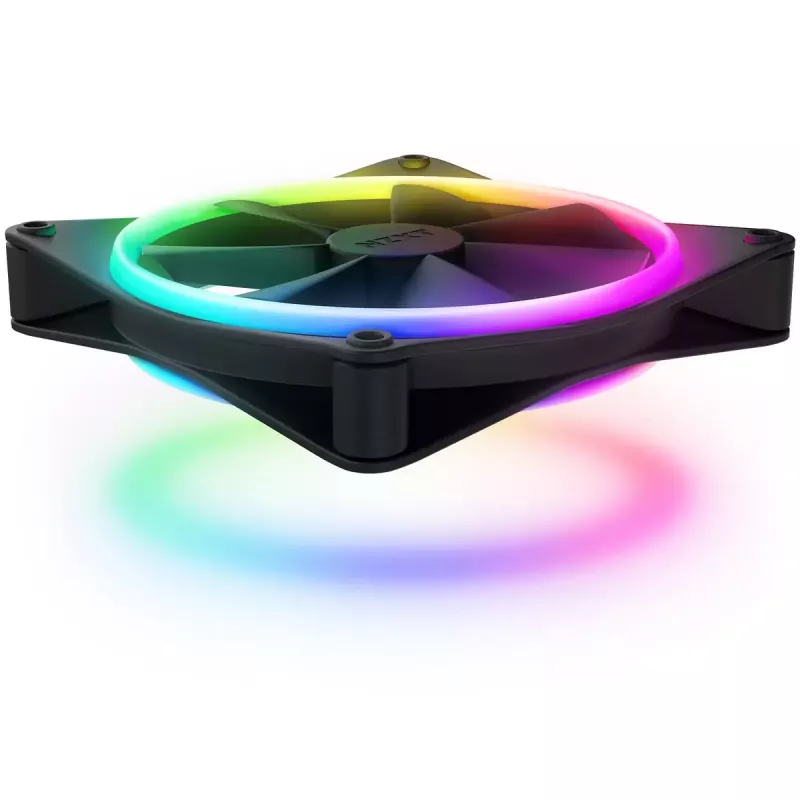

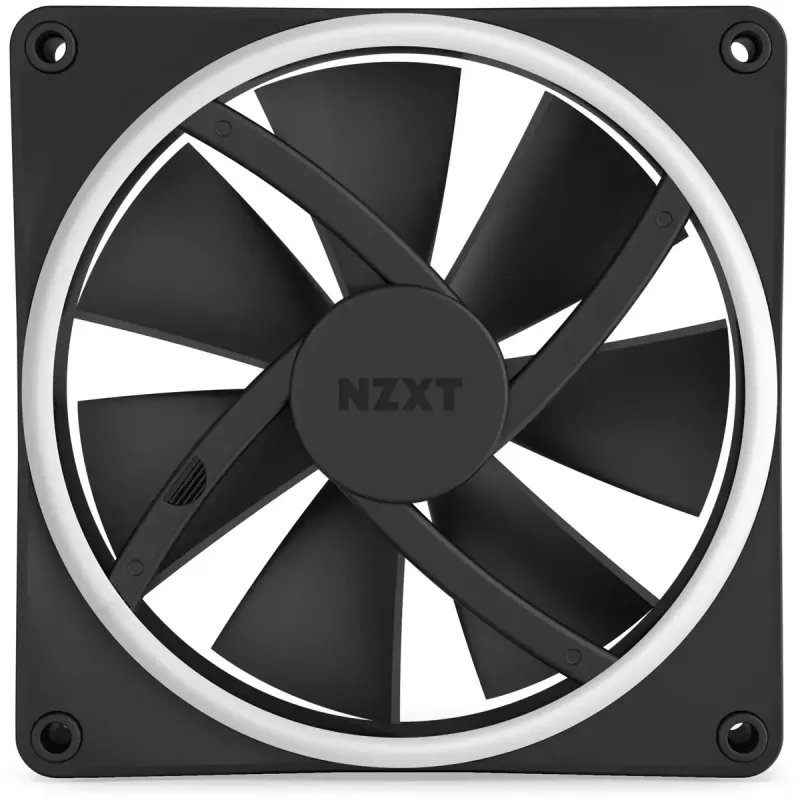

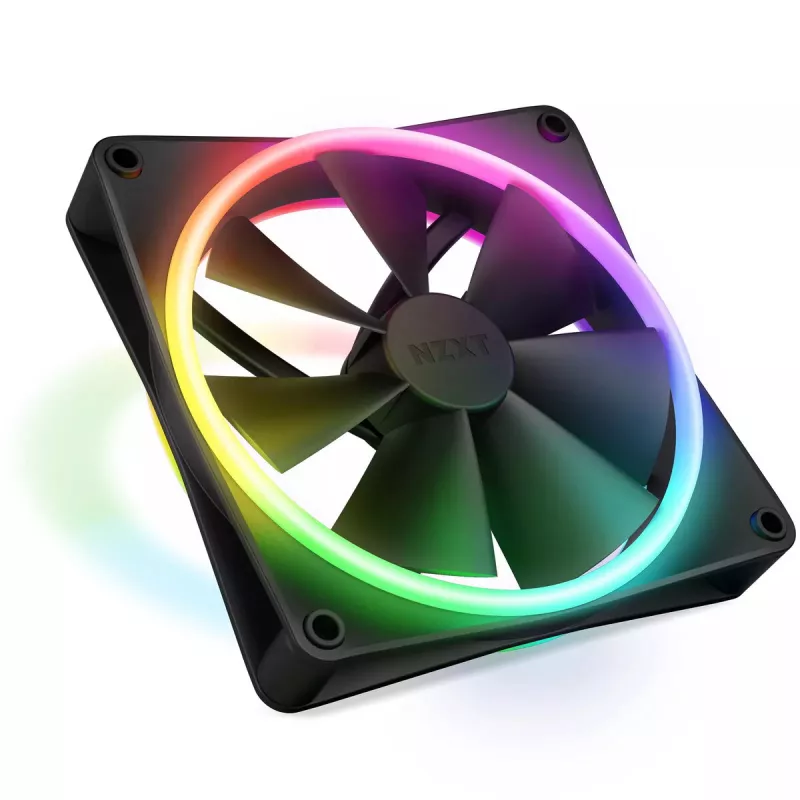

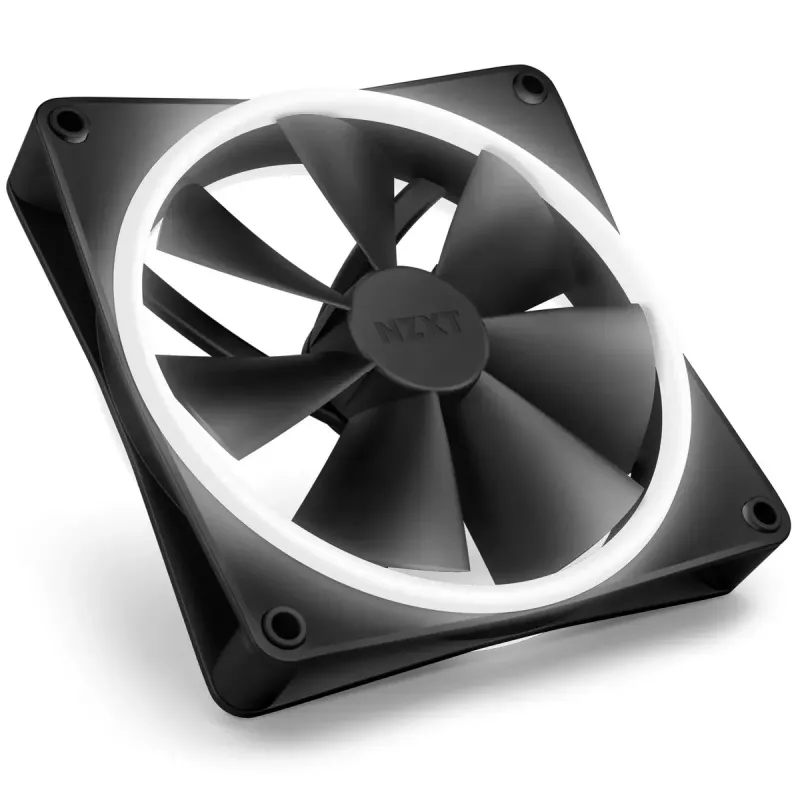

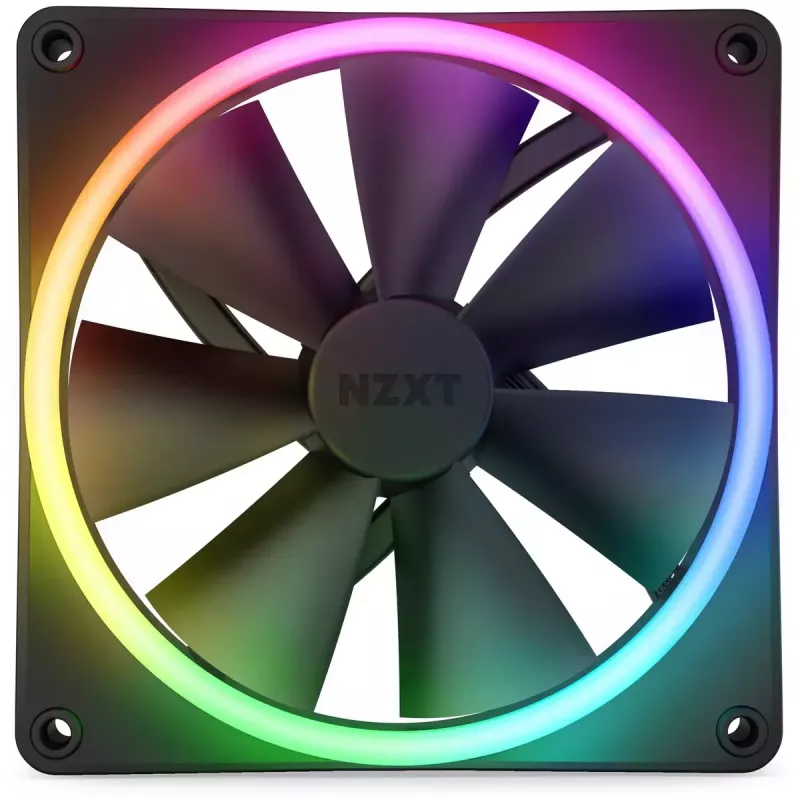

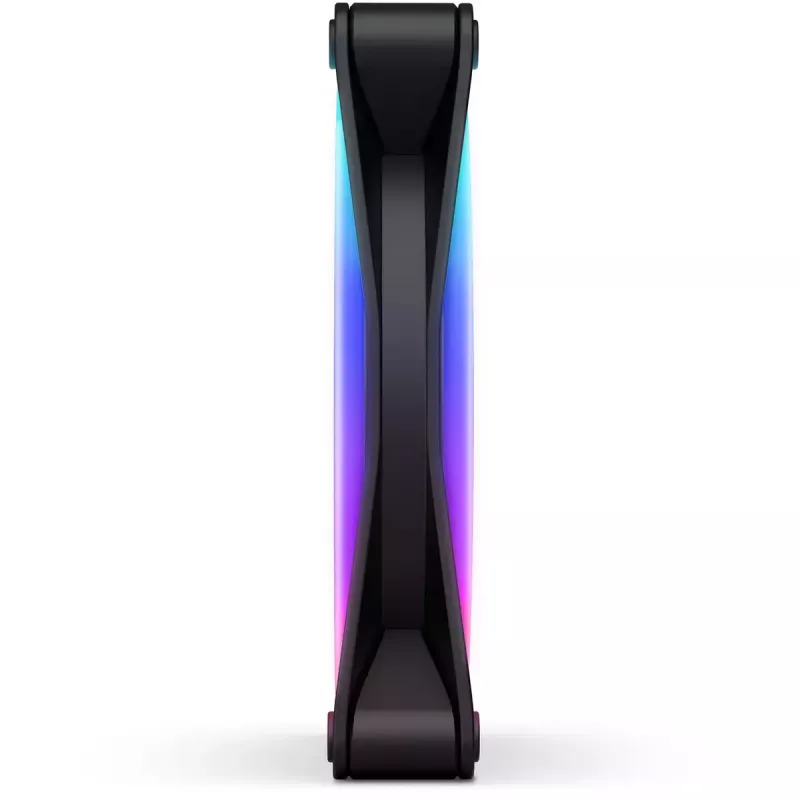

Ventoinha NZXT F120 RGB DUO 12 cm Preto 500–1800 RPM 2.42 mmH2O

The NZXT F120 RGB DUO is a 120 mm case fan that combines dual-sided RGB lighting with variable-speed cooling. It runs at 12 V with a speed range of 500–1800 RPM and a maximum static pressure of 2.42 mmH2O, making it suitable for a variety of PC cooling configurations while maintaining a black, low-profile appearance.

Advantages

Dual-sided, individually addressable RGB with 20 LEDs provides flexible lighting visible from both sides. PWM control adjusts fan speed dynamically to deliver cooling when required and reduce noise at lower loads. Corner rubber dampeners absorb vibration to lower acoustic noise and stabilize the fan during operation. The fan’s 120 mm size and 2.42 mmH2O static pressure make it compatible with case ventilation and radiator setups.

Suitable for

• General case airflow improvement in desktop PCs
• Placement on radiators or restrictive airflow areas requiring higher static pressure
• Systems where synchronized RGB lighting is desired

Key specifications

• Model: NZXT F120 RGB DUO (RF-D12SF-B1)
• Fan diameter: 120 mm
• Speed: 500–1800 RPM
• Maximum static pressure: 2.42 mmH2O
• Voltage: 12 V
• Colour: Black
• LEDs: 20 individually addressable RGB (dual-sided)

How to use

Install the fan in a standard 120 mm mounting position in your case or on a compatible radiator using the supplied screws. Connect the fan to a PWM-capable header on your motherboard or to a compatible controller for speed control. Attach the RGB connector to an NZXT-compatible RGB header or controller and use NZXT CAM software to configure lighting effects and fan curves.

Recommendations

For optimal performance, place the F120 RGB DUO where airflow is directed through radiators or areas with higher resistance; enable PWM control and configure fan curves in NZXT CAM to balance cooling and noise.
