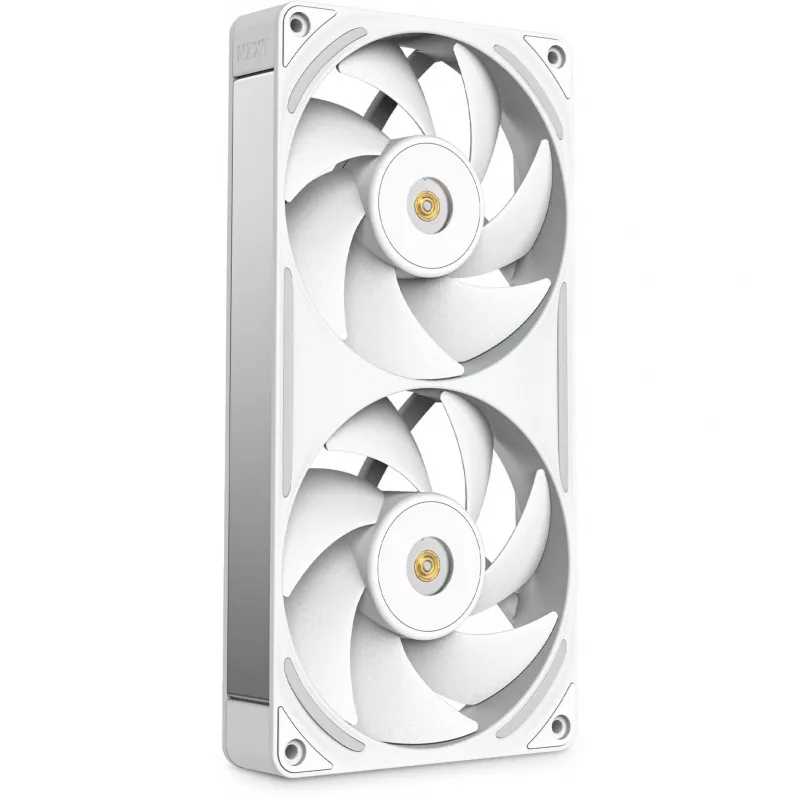

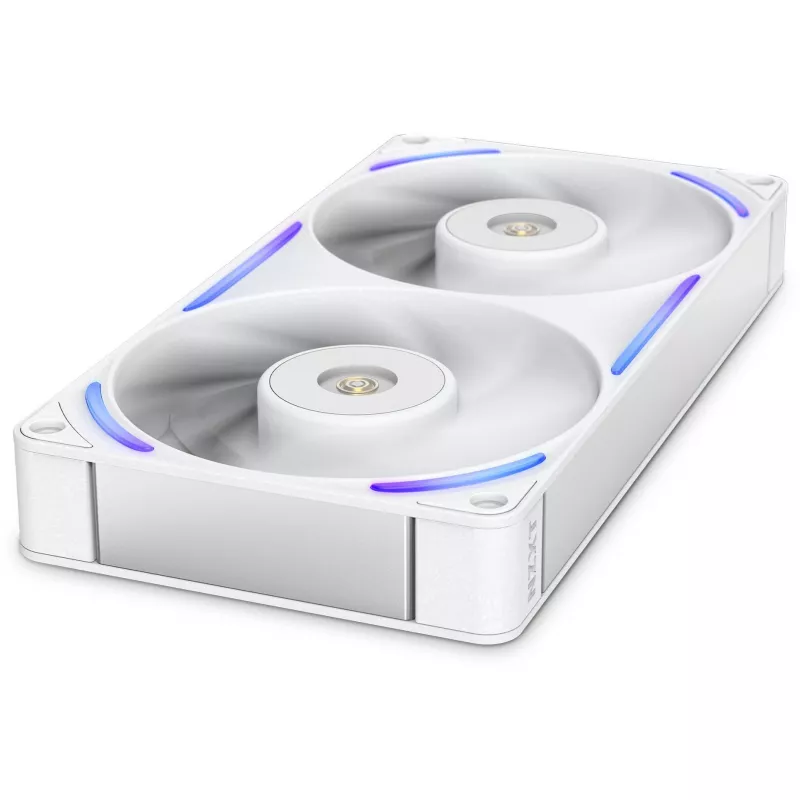

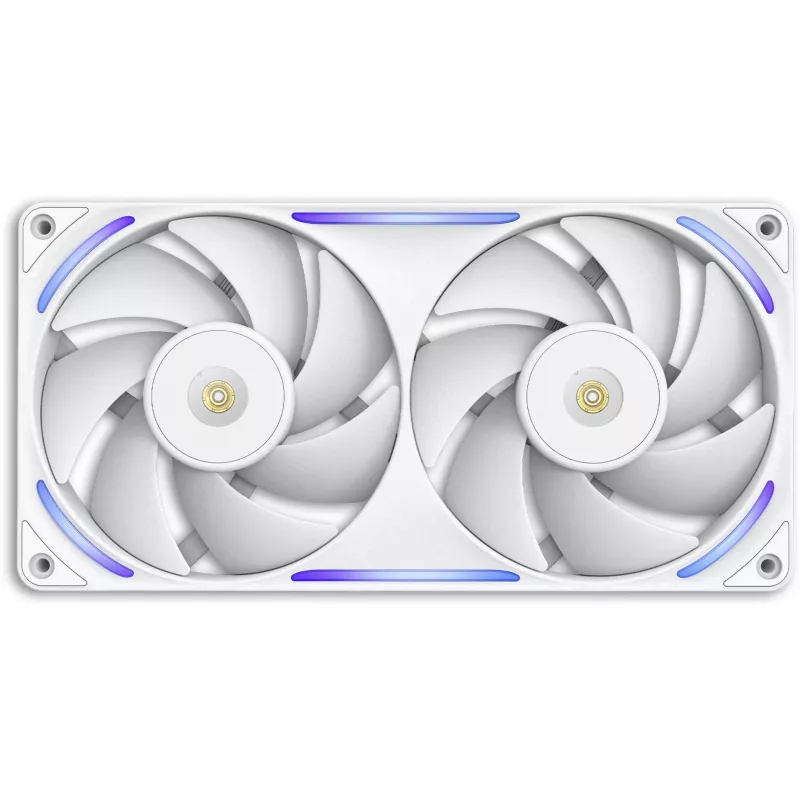

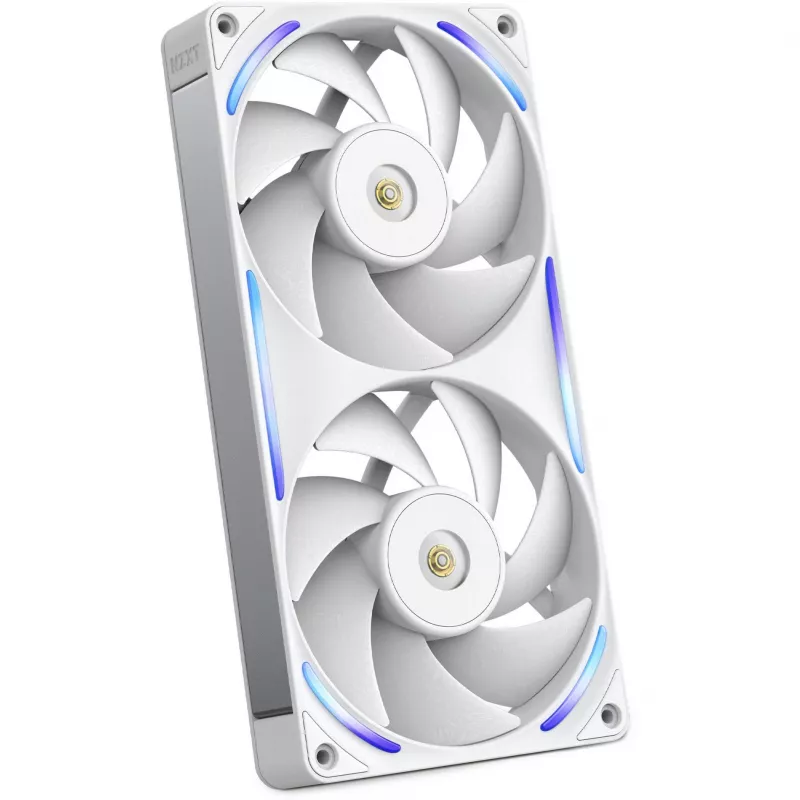

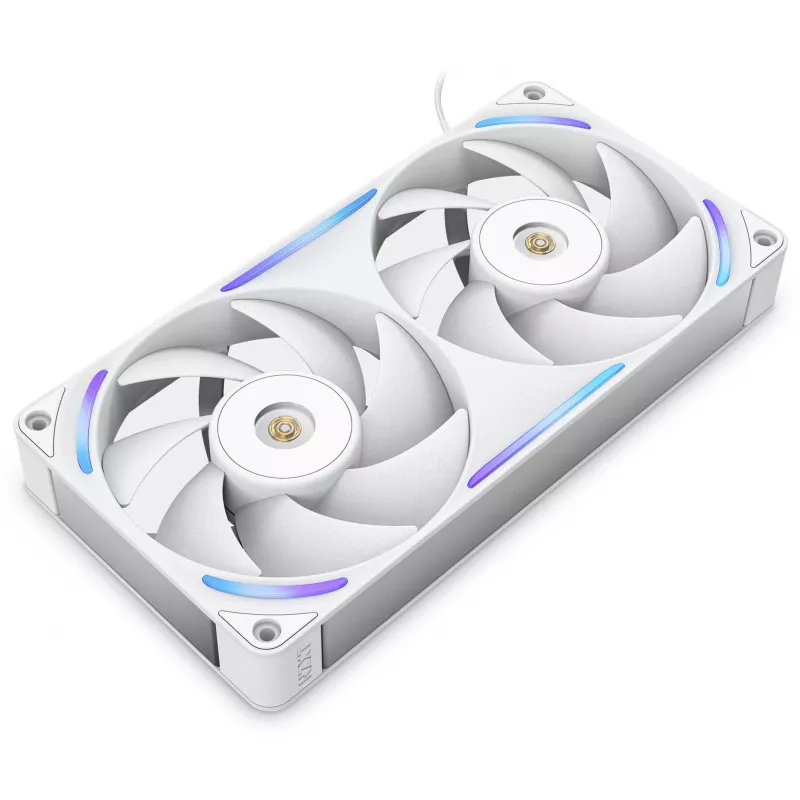

Ventoinha para caixa de computador NZXT F240X 120 mm branca, 1 unid., 240 × 120 × 30 mm

The NZXT F240X is a 120 mm computer case fan in white, supplied as a single unit. Designed for case cooling and airflow management, it fits standard 120 mm mounts and measures 240 × 120 × 30 mm overall. The fan combines liquid-crystal polymer (LCP) construction, optimized blades, a reinforced metal core, and a custom hybrid bearing system to deliver high airflow and static pressure while keeping noise levels low.

Advantages

LCP blades and frame resist flex and vibration at high speeds, maintaining consistent airflow. The optimized blade design with minimal tip-to-frame clearance reduces turbulence and air leakage, maximizing performance. A reinforced metal motor housing and a 3-phase, 6-pole motor improve structural stability and provide precise speed control. The custom hybrid bearing uses magnetic levitation together with fluid dynamic lubrication to minimize friction and wear for quieter, longer-lasting operation. Brushed aluminum accents and subtle RGB lighting provide a restrained, modern appearance, while the multi-fan single-frame design simplifies installation.

Suitable for (tasks / use cases)

• Case intake and exhaust to improve general airflow
• Radiator and AIO cooling for liquid-cooled systems
• Heatsink cooling for high-performance CPU or GPU setups
• System builds requiring a white 120 mm fan with PWM control

Key specifications

• Model: NZXT F240X (RF-U24PN-W1)
• Fan diameter: 120 mm
• Overall dimensions: 240 × 120 × 30 mm
• Speed range: 345–3,100 RPM
• Maximum airflow: 104.0 CFM
• Maximum static pressure: 7.53 mmH2O
• Maximum noise level: 41.0 dBA
• Minimum fan header rating: 1 A (F120X, F140X) / 2 A (F240X, F280X, F360X)*
• Control: PWM support and digital control via NZXT CAM (requires NZXT Control Hub or compatible NZXT motherboard, sold separately)
• Color: White
• Quantity: 1 pc

How to use

Mount the fan in a standard 120 mm position using the appropriate screws or the case’s mounting system, ensuring airflow direction matches the intended intake or exhaust orientation. Connect the PWM cable to a motherboard fan header or to an NZXT Control Hub for digital control. Configure fan speed profiles and RGB lighting (if available) through NZXT CAM or compatible motherboard software. Ensure the minimum fan header rating is met when connecting multiple fans to a single header.

Recommendations

For optimal results, use the NZXT F240X on radiators or case vents where high static pressure or strong airflow is required. Keep dust filters clean and maintain proper cable management to prevent airflow obstruction. Use NZXT CAM with an NZXT Control Hub or compatible motherboard for fine-tuned speed and lighting control.
