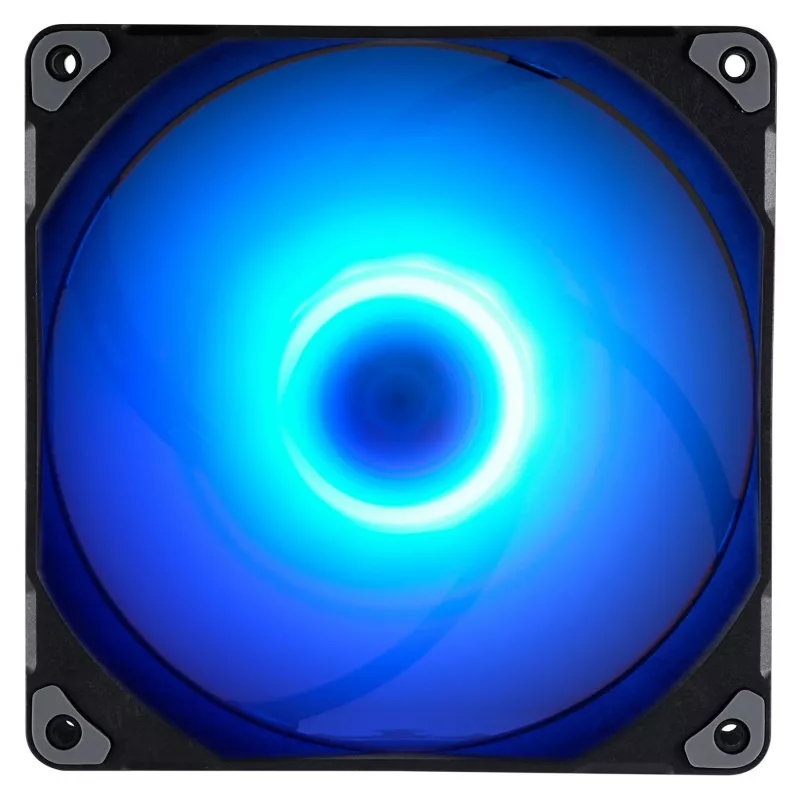

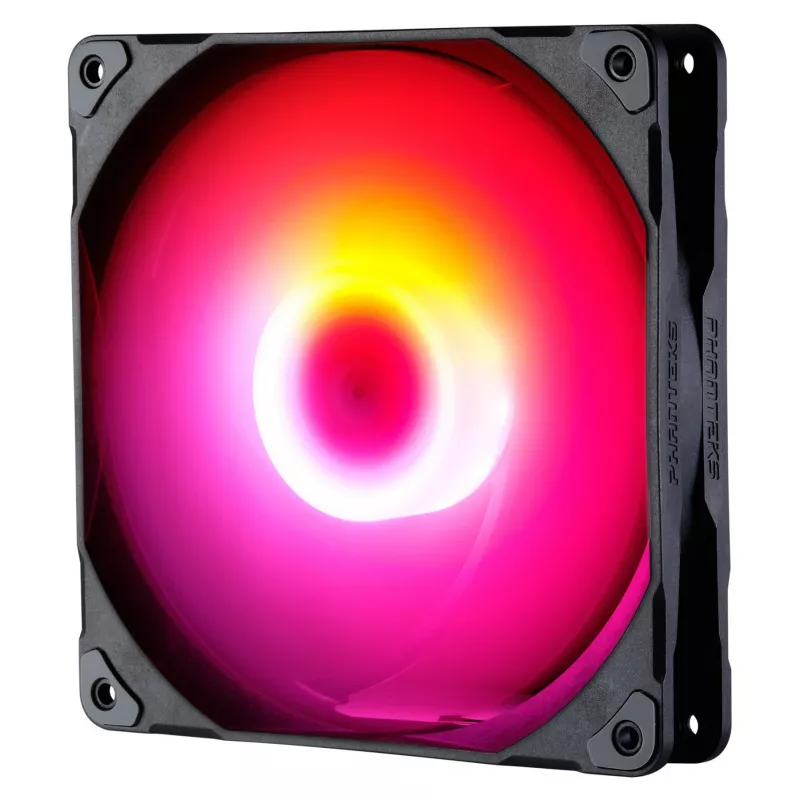

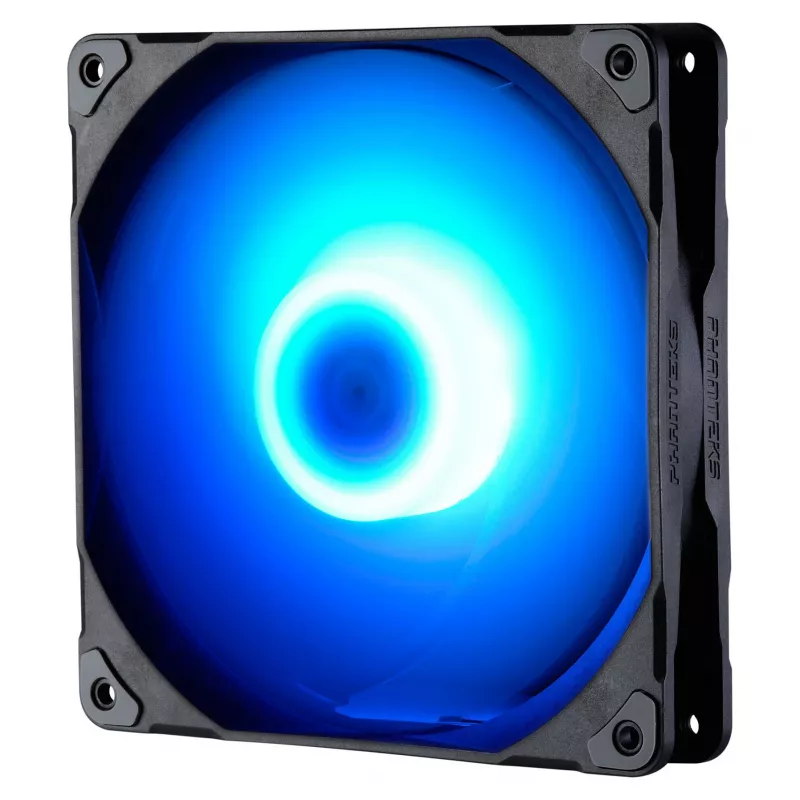

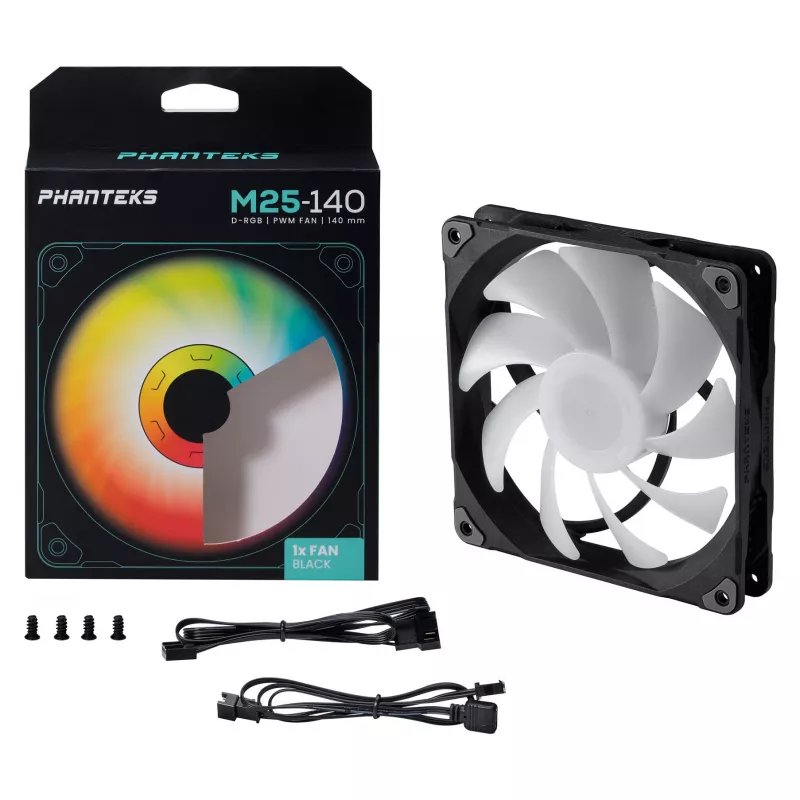

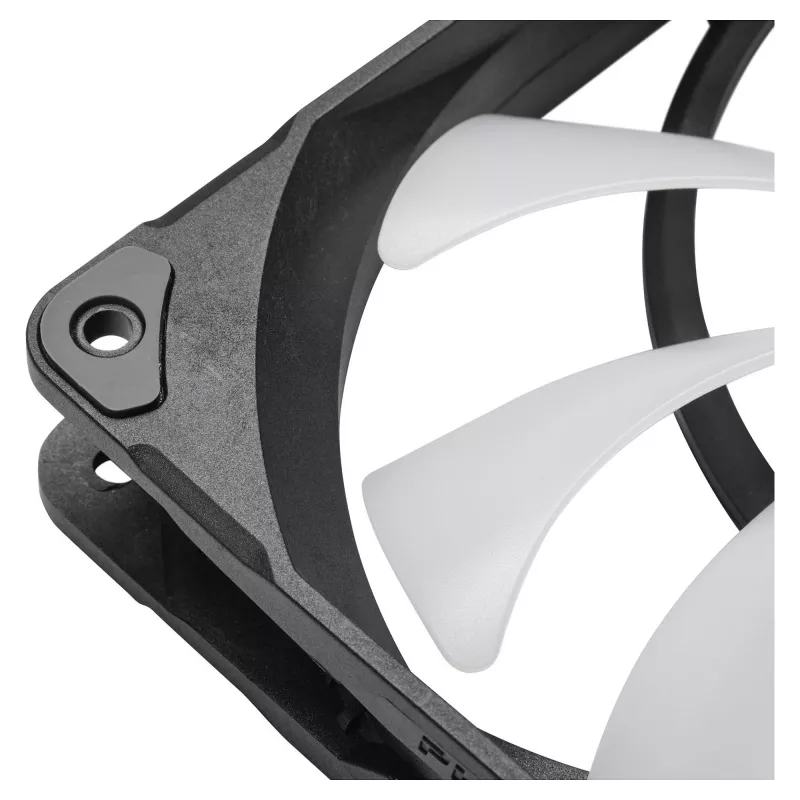

Ventoinha Phanteks M25 140mm D-RGB PWM preta

The Phanteks M25 series combines high-performance cooling with stunning digital RGB lighting. This 140mm fan features a hydraulic bearing for long life and quiet operation, PWM control for precise speed adjustment, and daisy-chainable D-RGB LEDs for vibrant illumination. Ideal for case or radiator cooling, it delivers excellent airflow and static pressure.

Advantages

High airflow (84.26 CFM) and static pressure (2.67 mmH2O) ensure efficient cooling. PWM support allows automatic speed control from 500 to 1800 RPM. The hydraulic bearing reduces noise to a maximum of 30.1 dBA. D-RGB lighting with 3-pin connector enables synchronization with compatible motherboards or controllers.

Suitable for

• PC case cooling
• Radiator cooling
• Silent or performance builds
• RGB lighting enthusiasts

Key specifications

• Fan diameter: 140 mm
• Fan thickness: 25 mm
• Bearing: Hydraulic
• Speed: 500-1800 RPM (PWM)
• Max airflow: 84.26 CFM
• Max static pressure: 2.67 mmH2O
• Noise level: 30.1 dBA
• Connector: 4-Pin PWM + 3-Pin D-RGB
• Rated voltage: 12V DC (fan), 5V DC (RGB)
• Rated current: 0.15 A (fan), 0.45 A (RGB)
• MTTF: >40,000 hours
• Colour: Black

Recommendations

For best results, use with a Phanteks D-RGB controller or a motherboard with 3-pin addressable RGB header. Pair with other M25 fans for uniform lighting.
