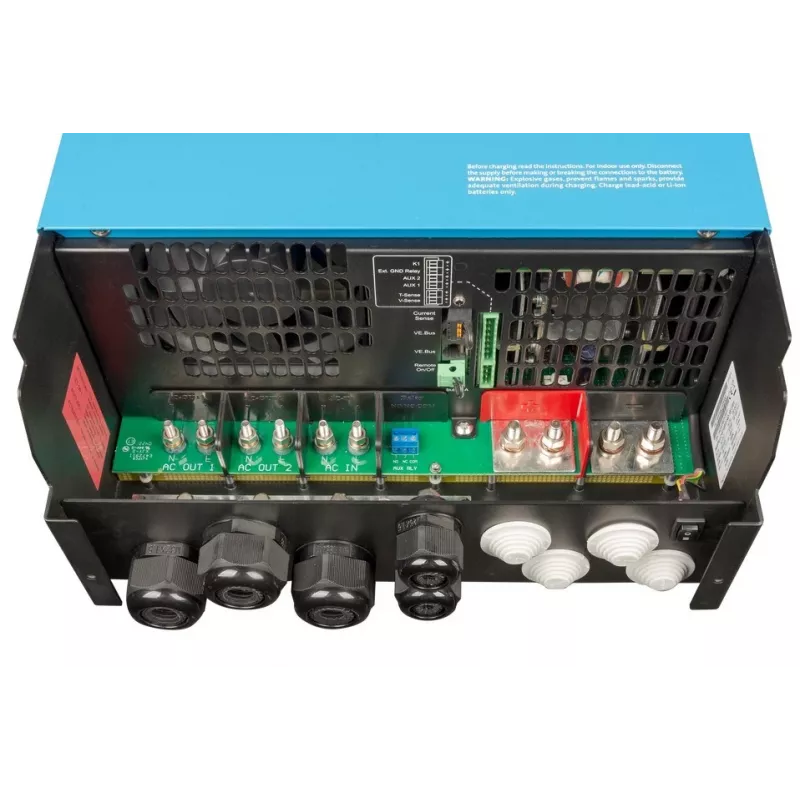

Victron Energy MultiPlus-II 48/10000/140-100 Inversor

The Victron Energy MultiPlus-II 48/10000/140-100 is a powerful and versatile inverter/charger designed for professional and residential energy systems. Combining a 48V 10000VA inverter with a 140A battery charger and a 100A AC transfer switch, it delivers reliable power conversion, battery charging, and grid interaction in a single unit. Ideal for off-grid, backup, and mobile applications, it features PowerAssist technology, pure sine wave output, and parallel/three-phase capability for scalable system design.

Advantages

High continuous power output (8000W at 25°C) and peak power handling (20000W) ensure reliable operation for demanding loads. The integrated 140A battery charger supports fast charging of lead-acid and lithium batteries. PowerAssist technology prevents overloads by supplementing generator or grid power with battery power. The unit can be paralleled with up to six units for higher power or configured for three-phase output. VE.Bus communication enables seamless integration with other Victron components and remote monitoring.

Suitable for

• Off-grid solar systems
• Backup power for homes and businesses
• Marine and mobile applications (RVs, boats)
• Industrial and telecom power systems

Key specifications

• Inverter continuous power: 8000W (25°C) / 7000W (40°C)
• Peak power: 20000W
• DC input voltage range: 38-66V
• AC output voltage: 230VAC ±2%
• Output frequency: 50/60 Hz selectable
• Output waveform: Pure sine wave
• Maximum efficiency: 95%
• Battery charger current: 140A DC
• Transfer switch current: 100A AC input
• Number of AC outputs: 2 (AC Out 1: 100A, AC Out 2: 50A)
• Parallel and 3-phase capability: Yes (up to 6 units)
• PowerAssist feature: Yes
• Communication ports: VE.Bus, AUX, Temp Sensor, Voltage Sensor
• Protection category: IP21
• Operating temperature range: -40 to +65°C
• Zero-load power: 45W
• Battery type compatibility: Lead Acid, Lithium-ion (with external BMS)

Recommendations

For optimal performance, pair with Victron Energy batteries and a Color Control GX or Cerbo GX for system monitoring and control. Ensure proper ventilation and installation by a qualified electrician.
