Videoporteiro 2N 9155301CBF, IP54/IK08, 10/100Base-T, SIP2.0, imagem máx. 1280×960, 120° horizontal, 12V DC/PoE (IEEE 802.3af)

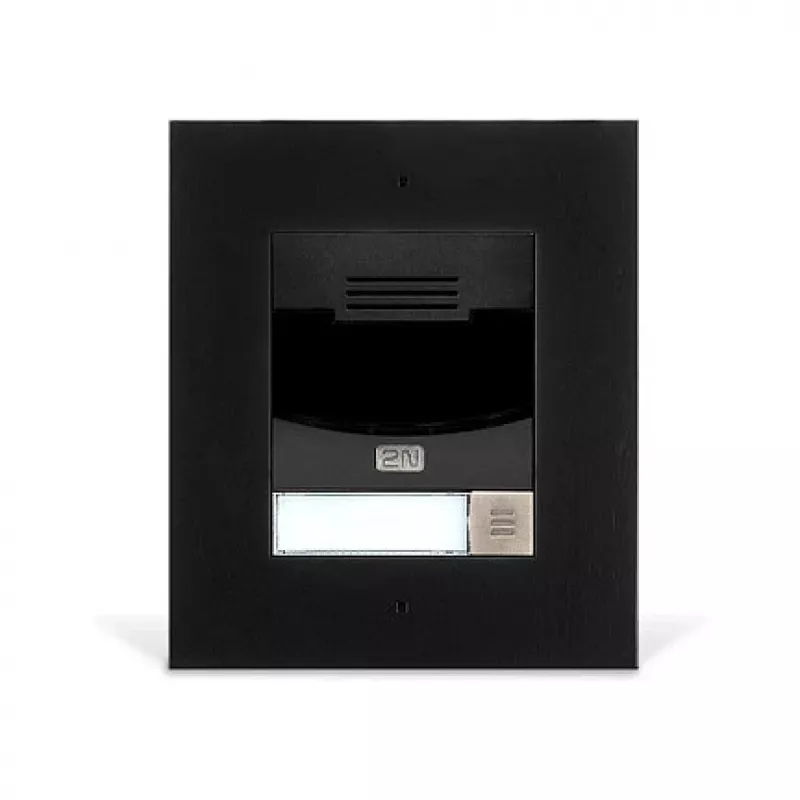

2N 9155301CBF is a compact outdoor video intercom in black designed for building entry control and IP surveillance integration. The unit provides weather protection with an IP54 rating and impact resistance at IK08 level. It supports wired 10/100Base-T networking and SIP 2.0 signaling, offers PoE (IEEE 802.3af) or 12 V DC power, and includes a built-in camera capable of up to 1280×960 resolution with a 120° horizontal field of view. The intercom is suitable for surface or flush mounting and can connect with external IP cameras and home automation systems via open interfaces.

Advantages

The device combines video calls, door control and IP surveillance connectivity in a single compact unit. Its IP54 protection and IK08 impact resistance make it suitable for outdoor installation, while support for PoE (IEEE 802.3af) simplifies cabling. The camera provides high-resolution images with a wide 120° horizontal view, and the unit’s compatibility with SIP 2.0 and ONVIF enables integration with standard VoIP systems and video management platforms. Remote configuration and the ability to call mobile devices allow flexible remote access and administration.

Suitable for

• Controlled entry points at private homes and small residential buildings
• Integration with smart home and home automation systems
• Perimeter or door monitoring as part of IP surveillance
• Sites requiring PoE-powered access control installations

Key specifications

• Environmental protection: IP54
• Impact resistance: IK08
• Network interface: 10/100Base-T Ethernet
• Signaling protocols: SIP 2.0, ONVIF support
• Power options: PoE (IEEE 802.3af) or 12 V DC
• Camera maximum resolution: 1280×960 pixels
• Camera horizontal field of view: 120°
• Mounting options: surface and flush mounting supported

How to use

Install the intercom at the chosen entrance using either surface or flush mounting kits. Connect the unit to the local network via the 10/100Base-T Ethernet port and provide power using PoE (IEEE 802.3af) or a 12 V DC supply. Configure SIP 2.0 settings to register the device with your VoIP server or PBX and enable ONVIF if integrating with a video management system. Add any external IP camera connections if needed and configure user accounts or mobile call settings for remote calls and notifications.

Recommendations

For reliable outdoor operation, mount the unit in a sheltered position where possible to reduce direct exposure to severe weather. Use PoE to minimise cabling and centralise power management. When integrating into a surveillance or home automation system, verify SIP and ONVIF compatibility with existing infrastructure and apply secure credentials and firmware updates to maintain system security.
